Product Overview

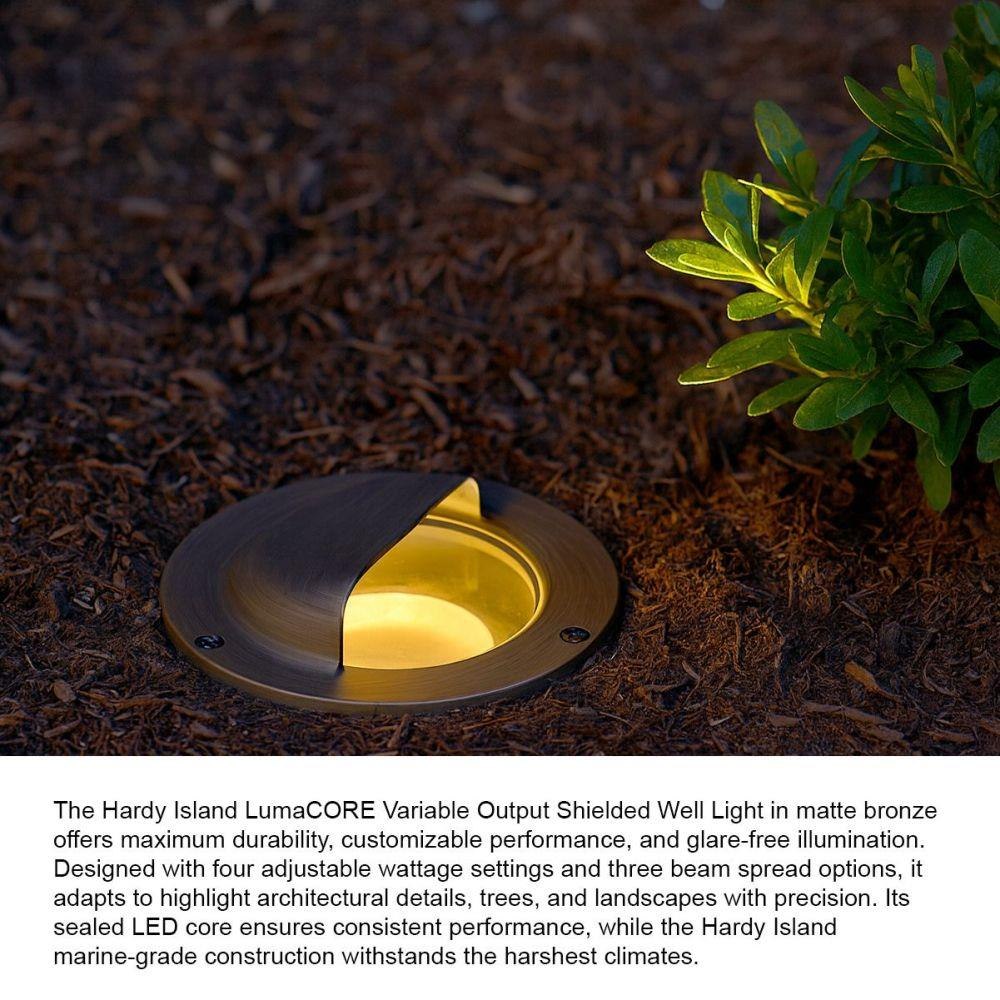

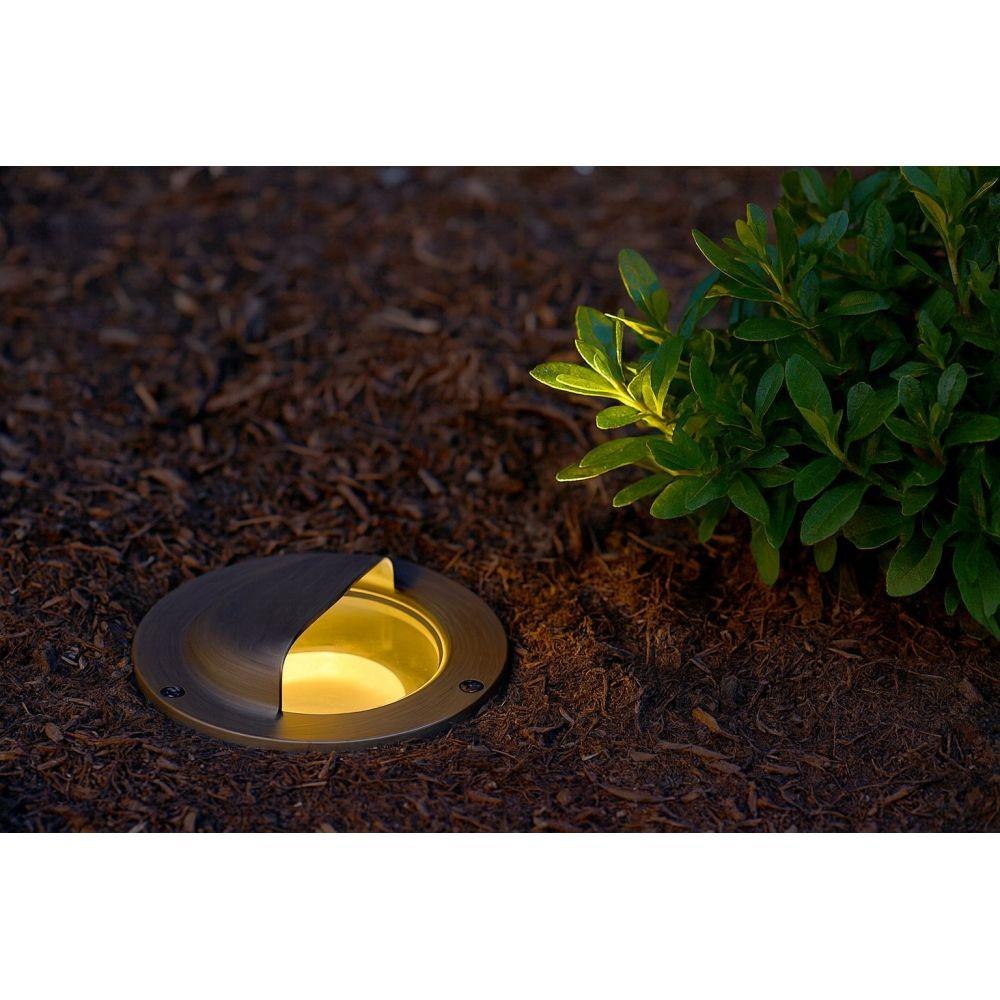

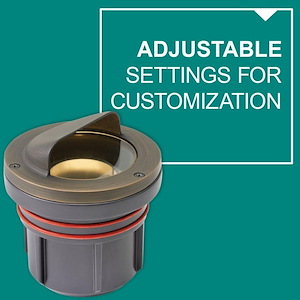

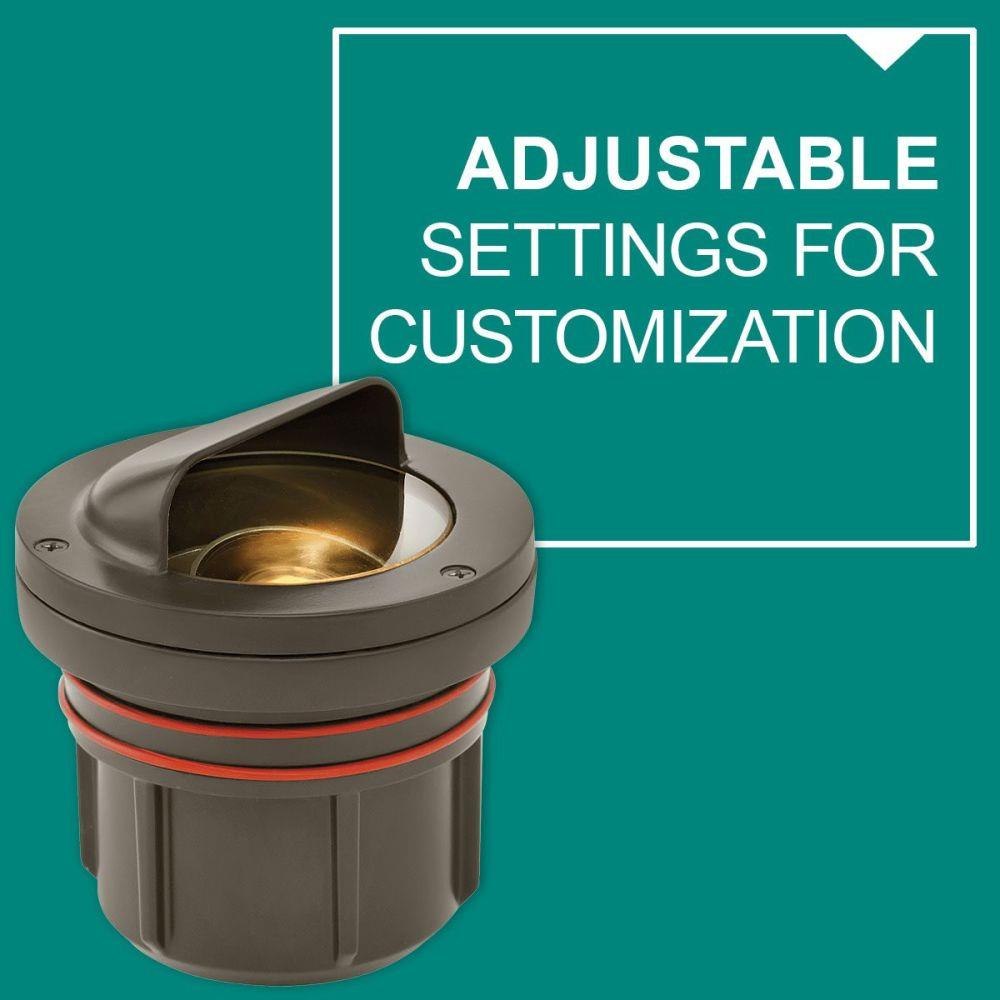

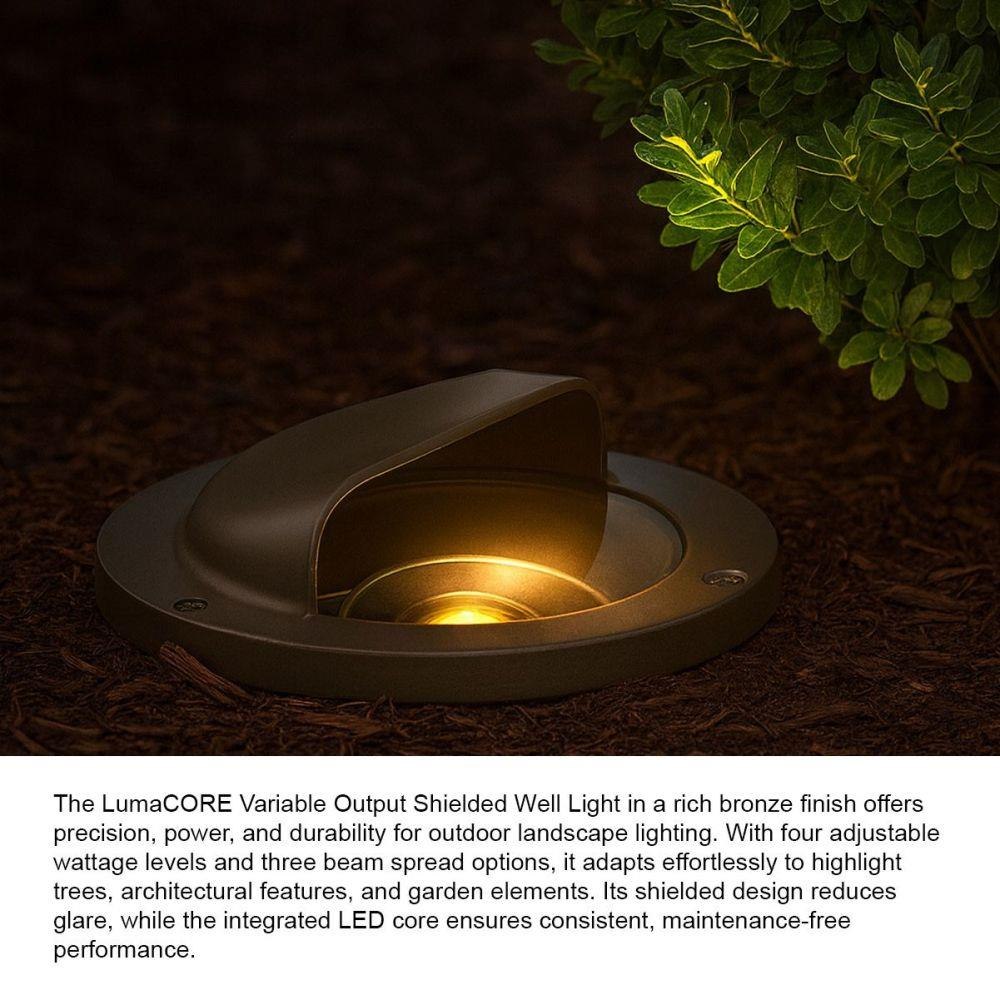

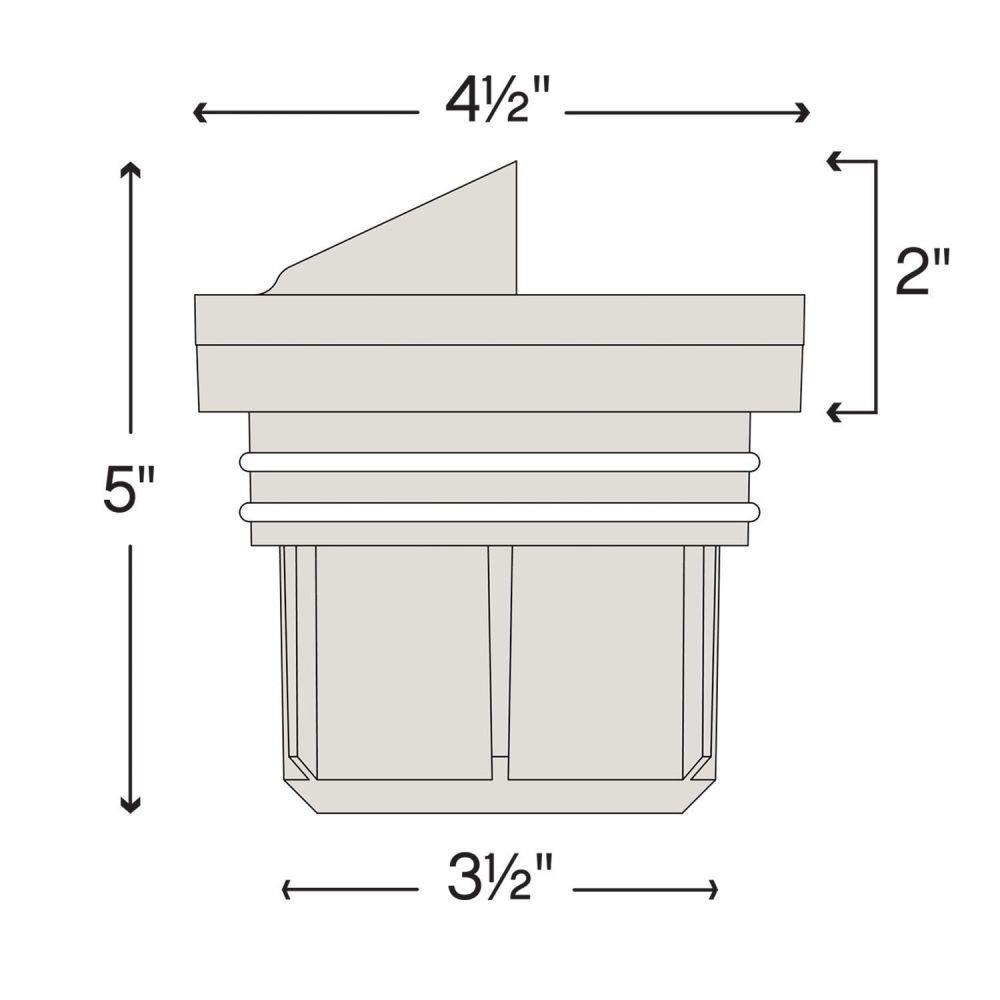

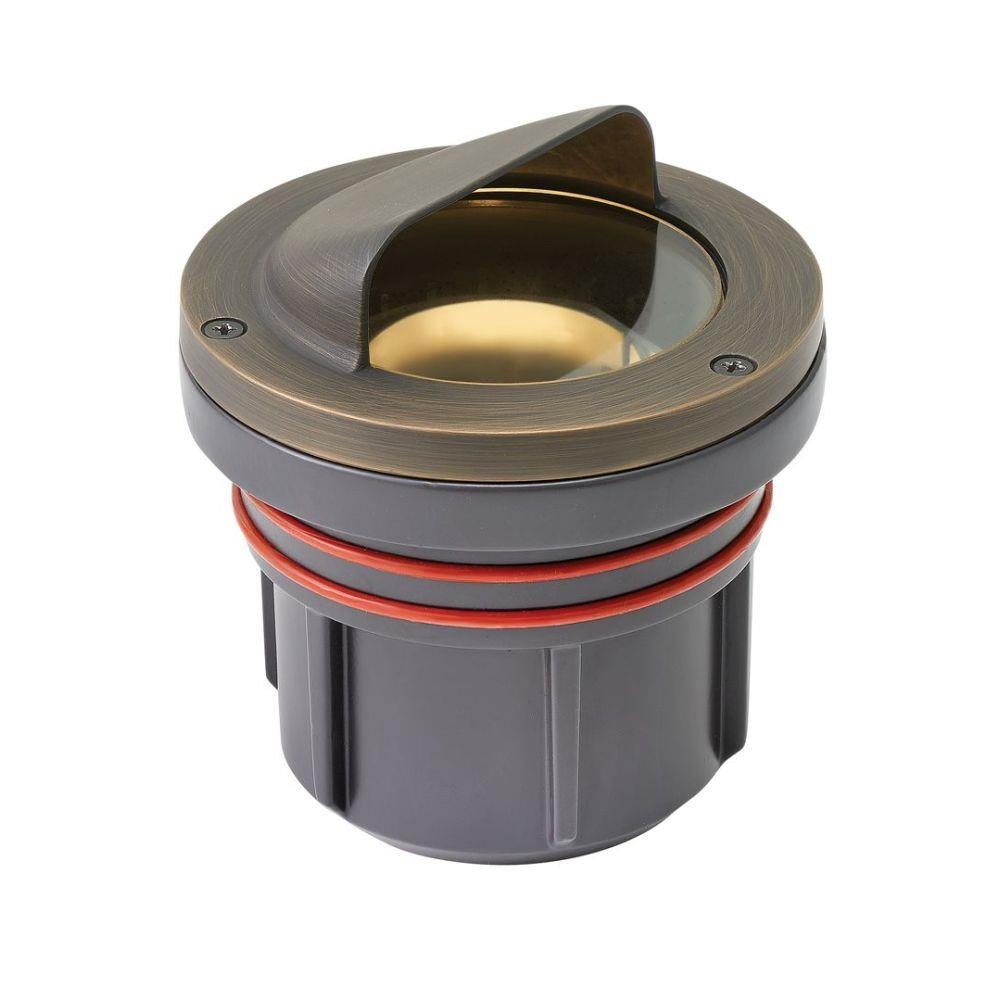

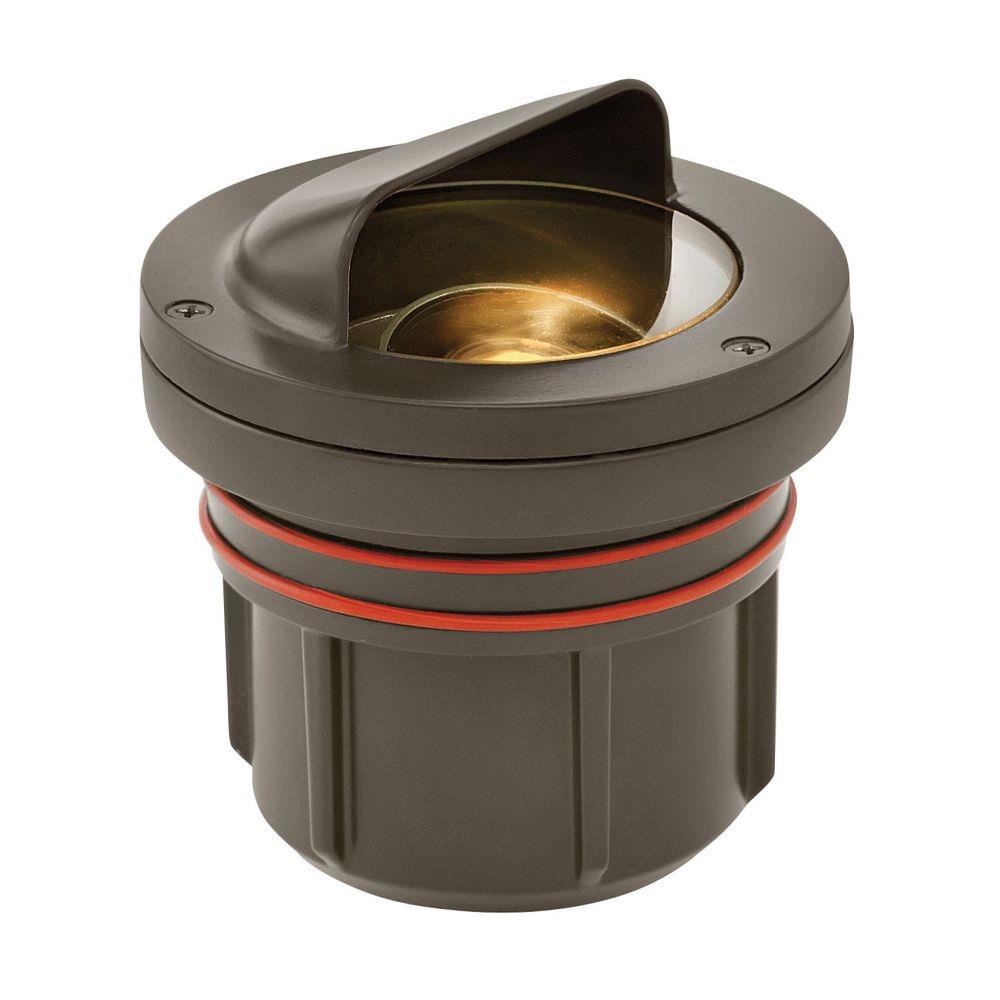

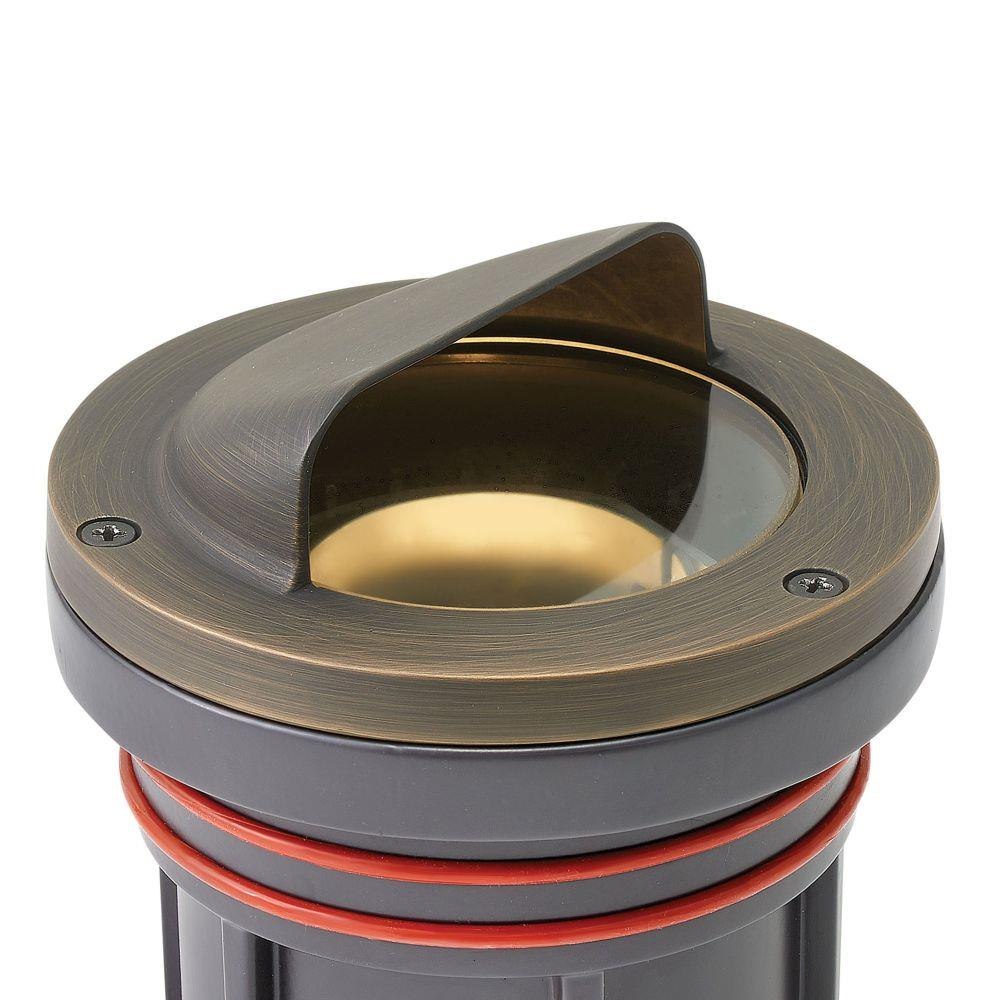

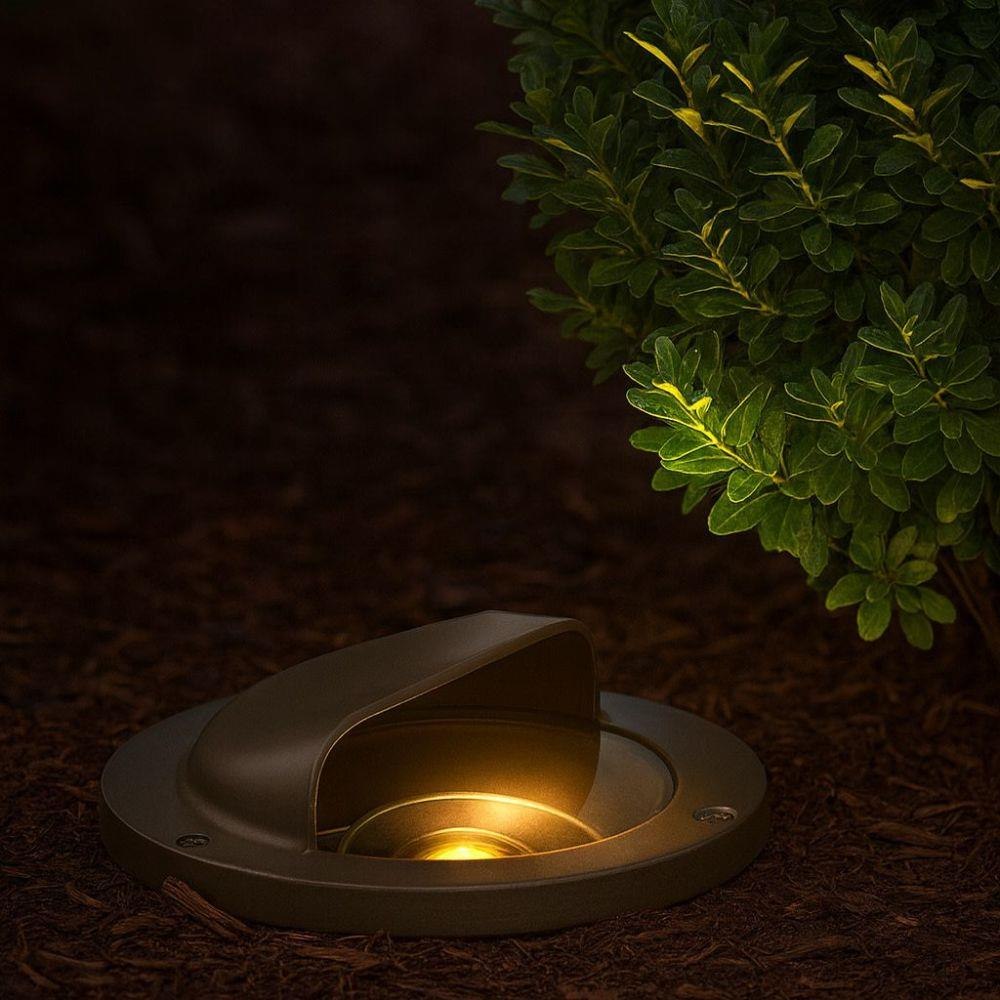

The 9W 1 LED Shielded Well Light from the LumaCore Series is engineered for landscape lighting applications that demand durability and refined aesthetics. Standing 5 inches tall and measuring 4.5 inches in both width and length, this fixture delivers a traditional design with classic lines and heritage details, making it ideal for complementing traditional architectural styles. Constructed from robust aluminum, it ensures long-lasting performance in outdoor environments.
Technical Specifications and Performance

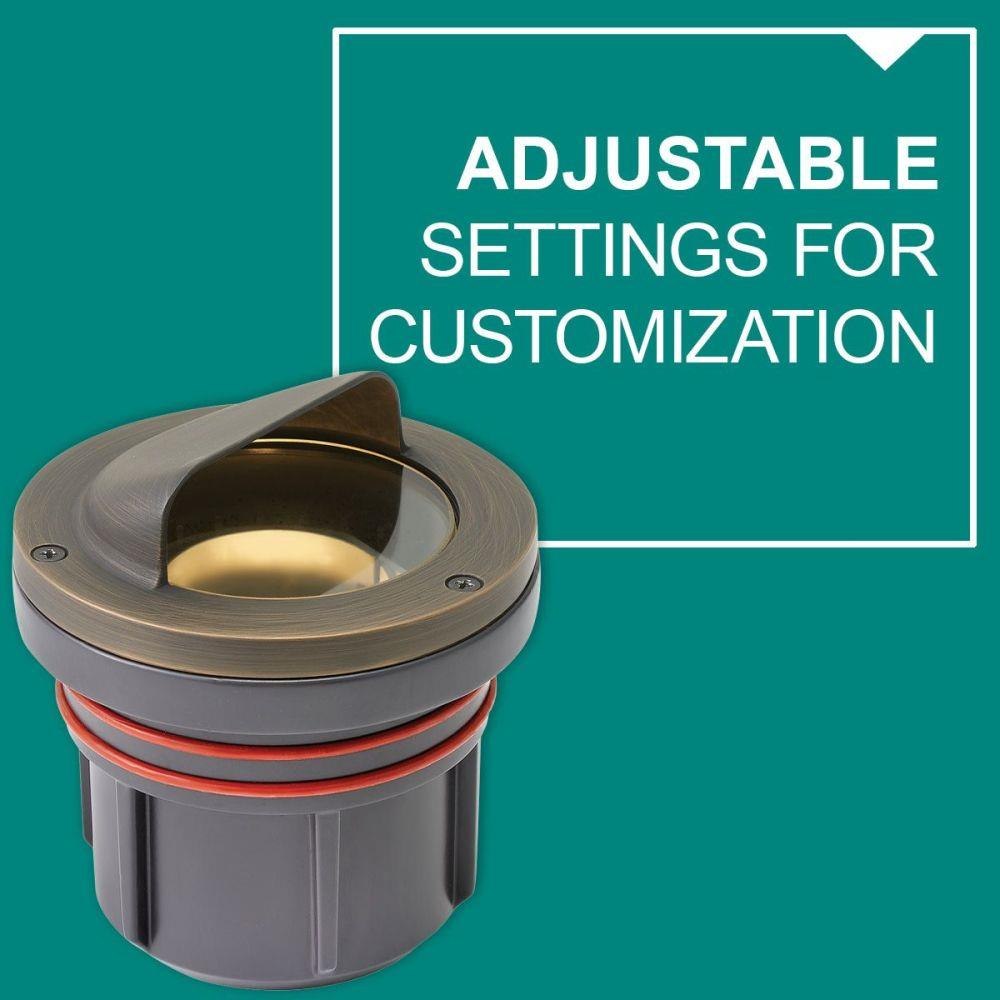

Equipped with a single high-performance CREE LED, this well light offers variable wattage output options of 3W (260 lumens), 5W (350 lumens), 8W (475 lumens), and 12W (750 lumens), allowing customization of illumination intensity based on project requirements. The LED photometrics are based on engine data, ensuring reliable and consistent light output. The fixture is rated for wet locations, including direct exposure to rain and sprinkler systems, complying with NEC and CEC standards, as well as meeting UL and CSA product safety certifications in the United States and Canada.
Installation and Durability Features
This landscape well light includes a PVC-constructed concrete pour kit and burial sleeve, facilitating secure and stable installation in concrete or soil. A dense foam cap is provided to prevent concrete ingress during installation. The fixture's design supports optimal drive-over protection, withstanding loads up to 4,500 pounds, making it suitable for driveways and pathways. The warm, rich light bronze finish enhances outdoor aesthetics while offering resistance to environmental elements.
Key Features
- Incorporates CREE LED technology for superior performance and longevity
- Variable output wattage settings: 3W, 5W, 8W, and 12W for customizable illumination
- Constructed from durable aluminum with a warm bronze finish
- Suitable for wet locations; UL and CSA certified for safety and reliability
- Includes concrete pour kit, burial sleeve, and dense foam cap for installation protection
- Drive-over protection rated up to 4,500 lbs for versatile placement
What's Included
- Concrete pour kit and burial sleeve
- Dense foam cap to prevent concrete intrusion
What Needs to Be Ordered Separately
- No additional components explicitly specified; verify compatibility with existing lighting system and power supply requirements
