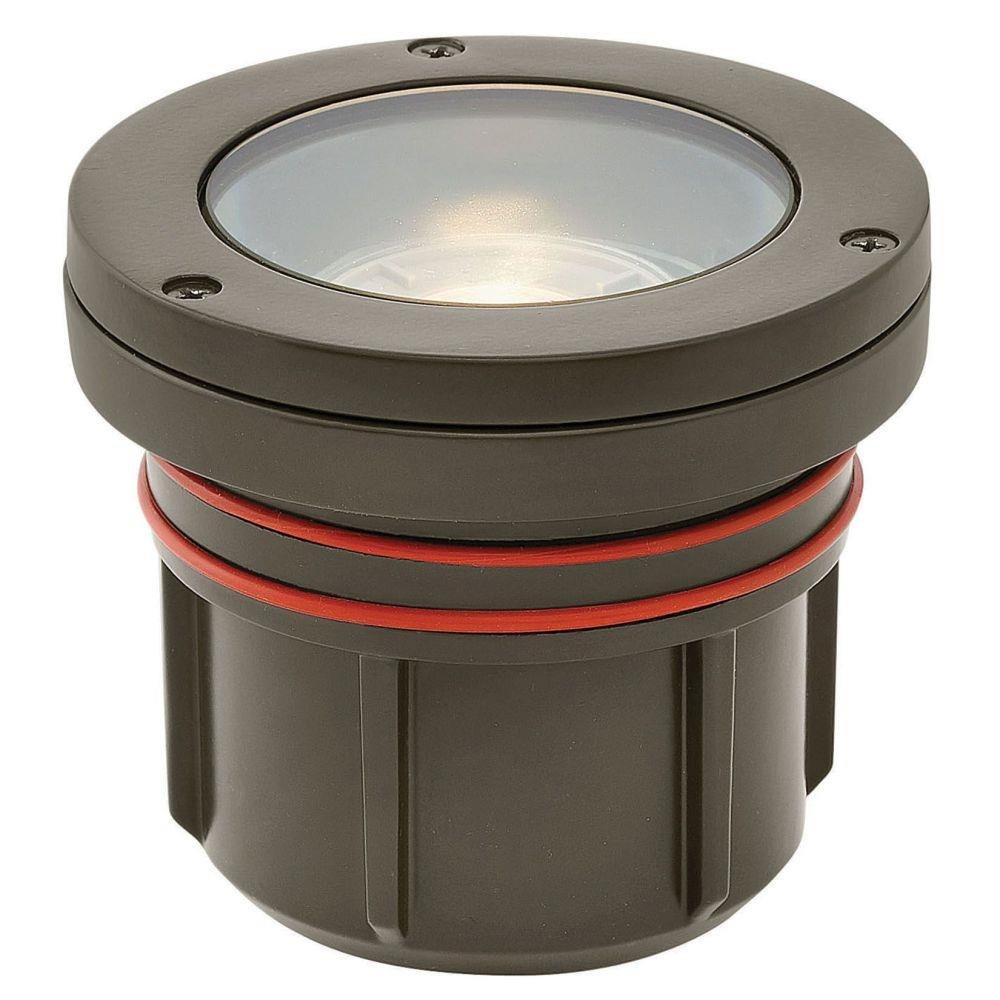

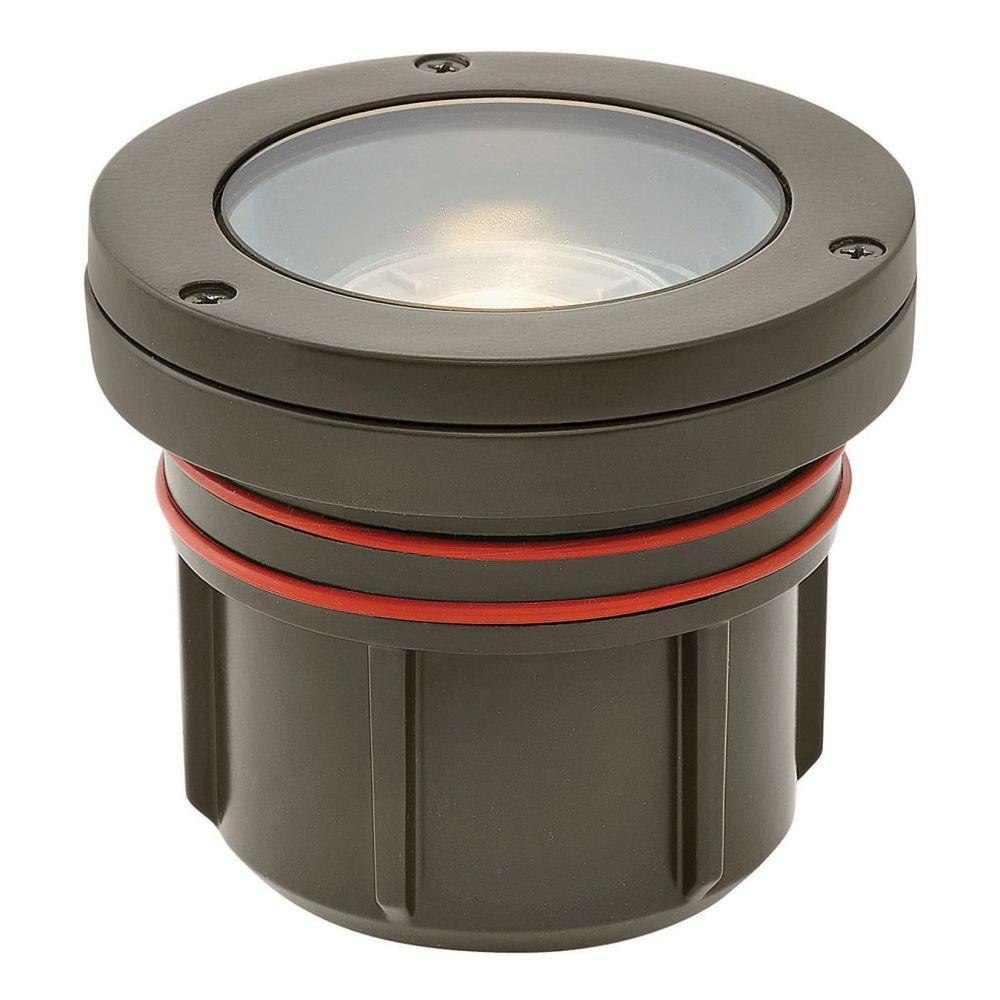

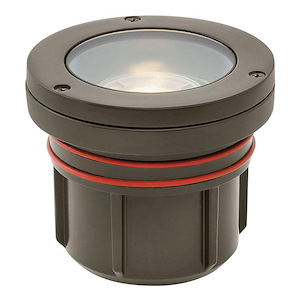

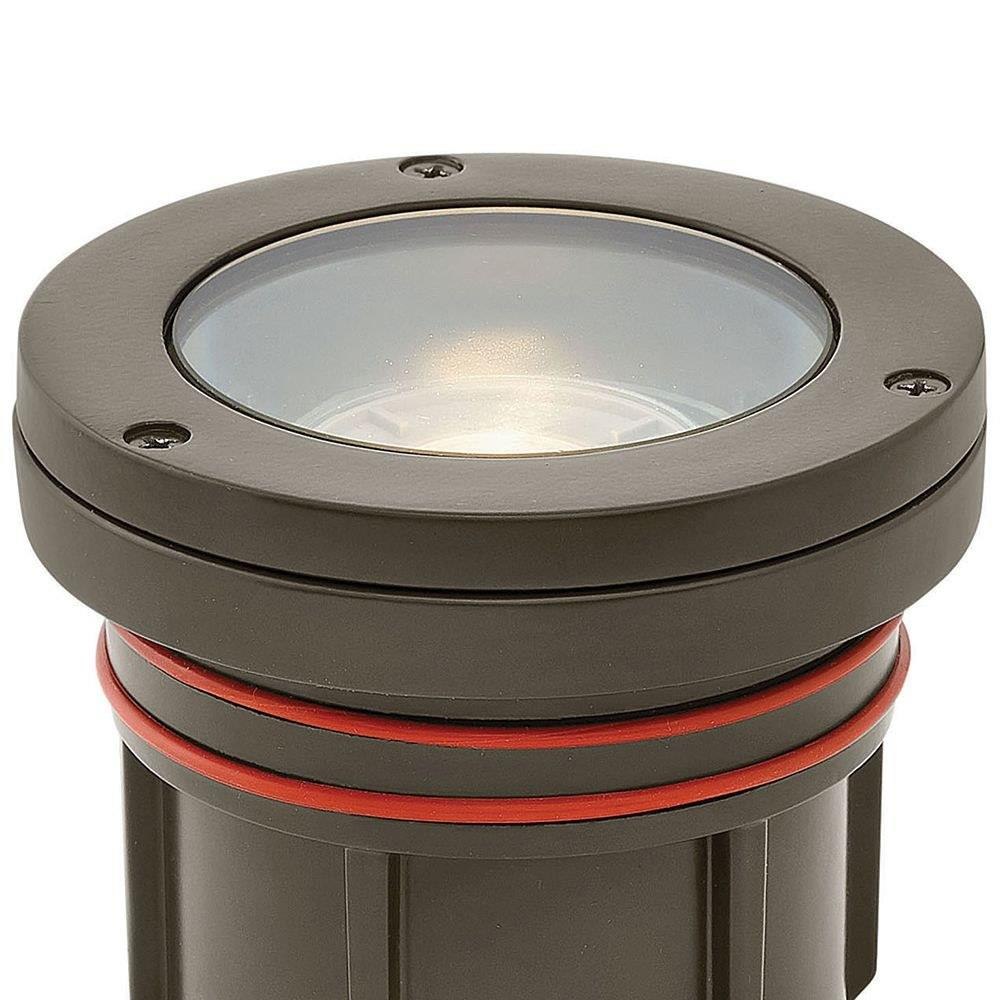

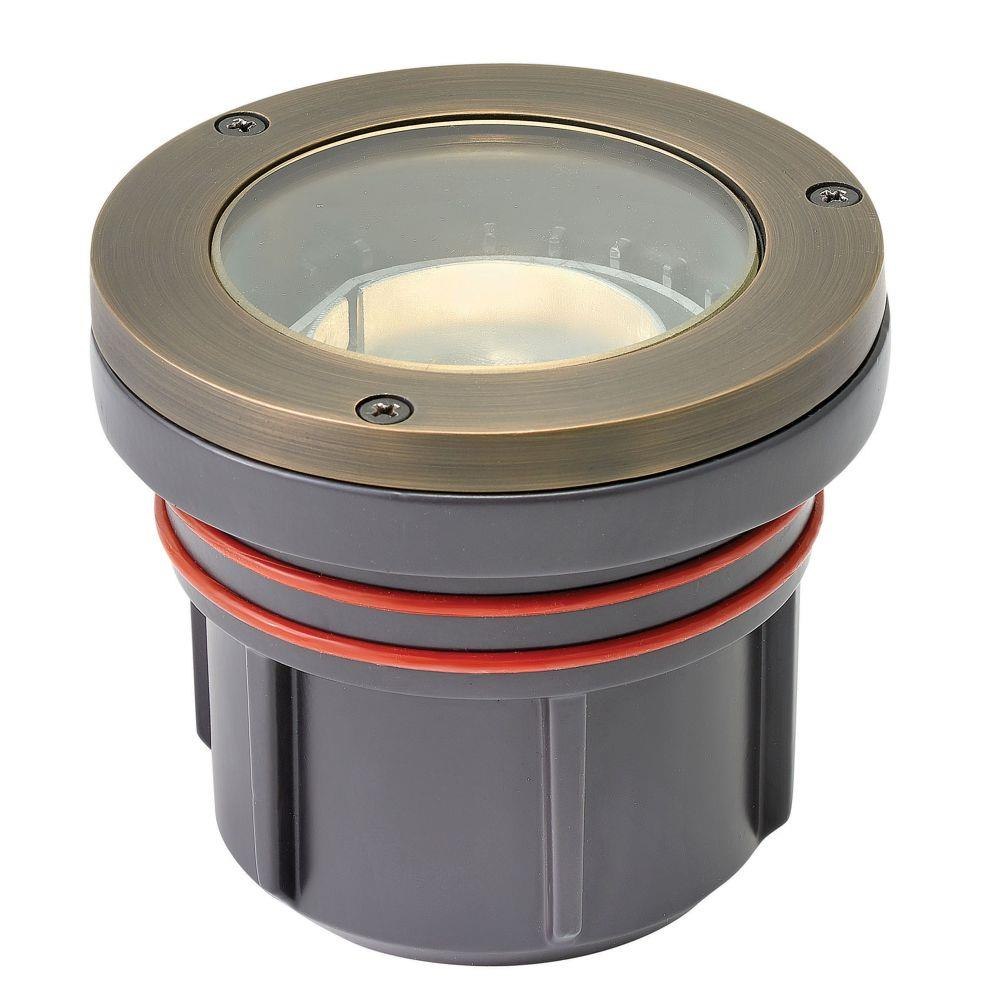

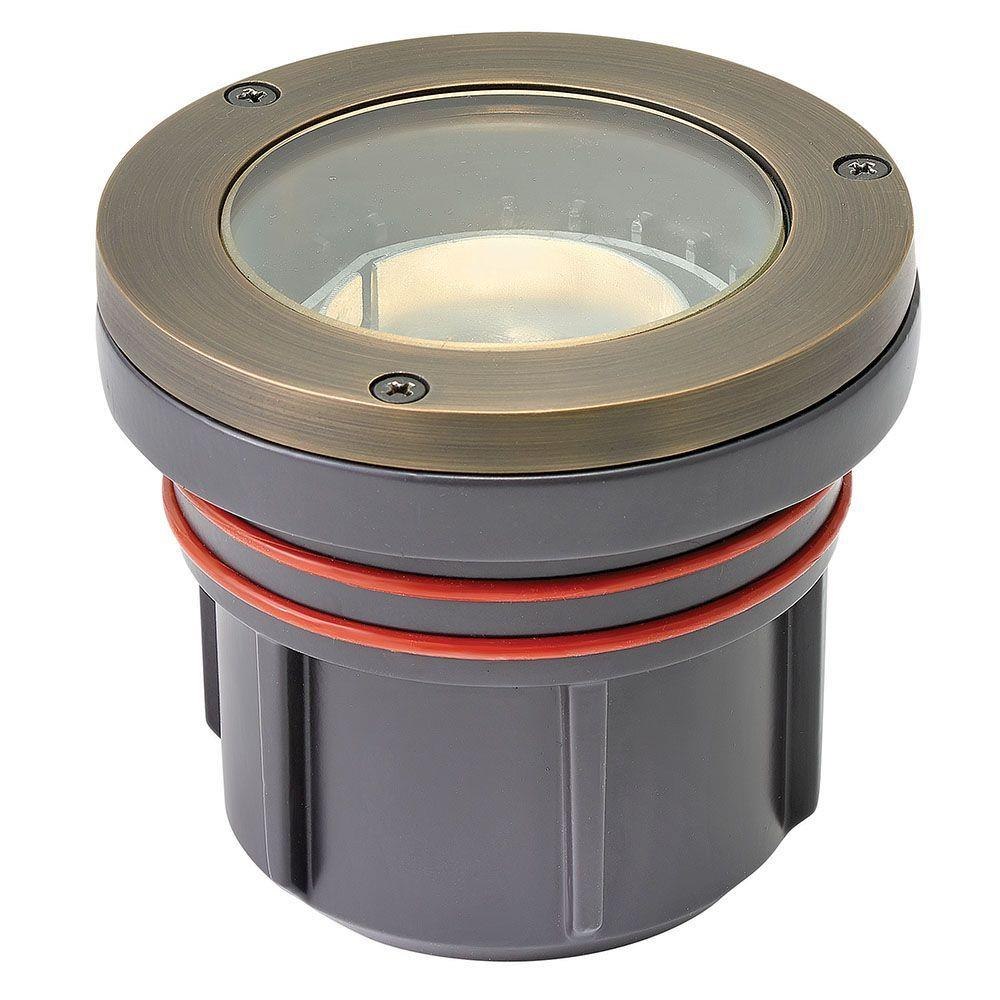

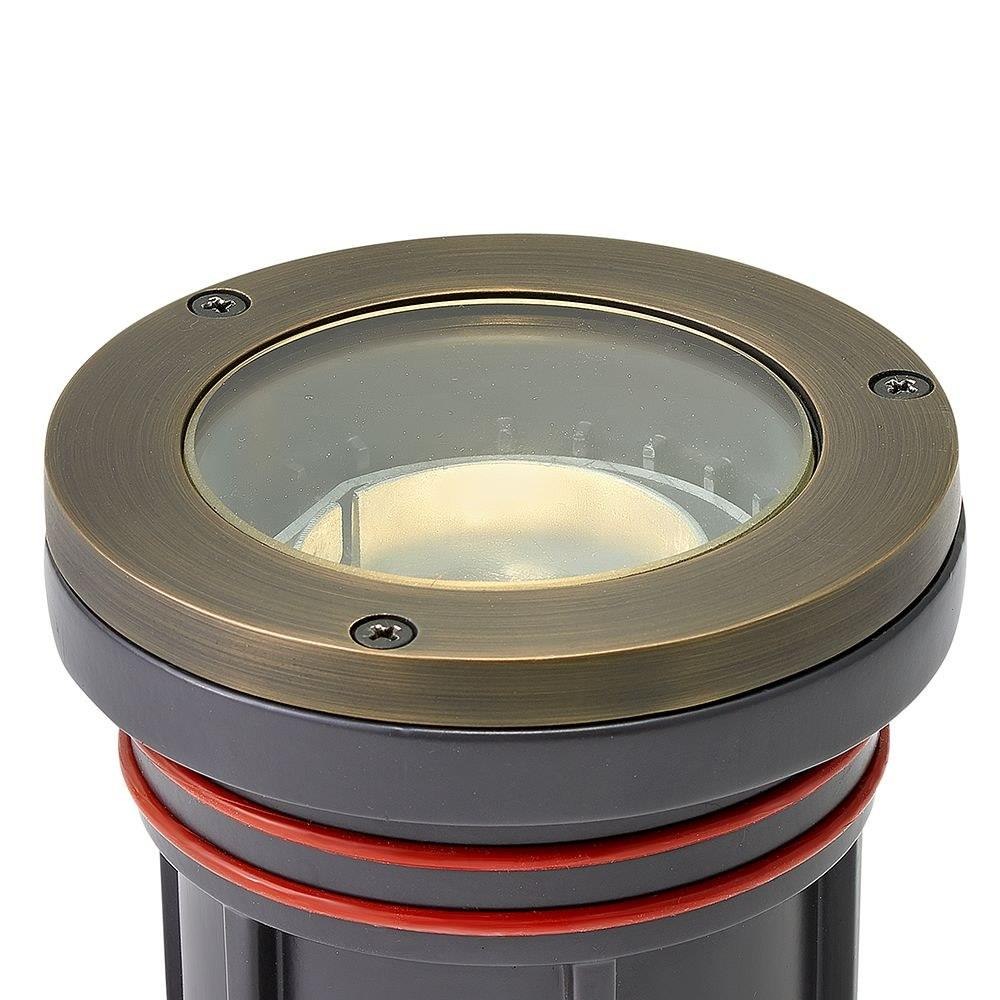

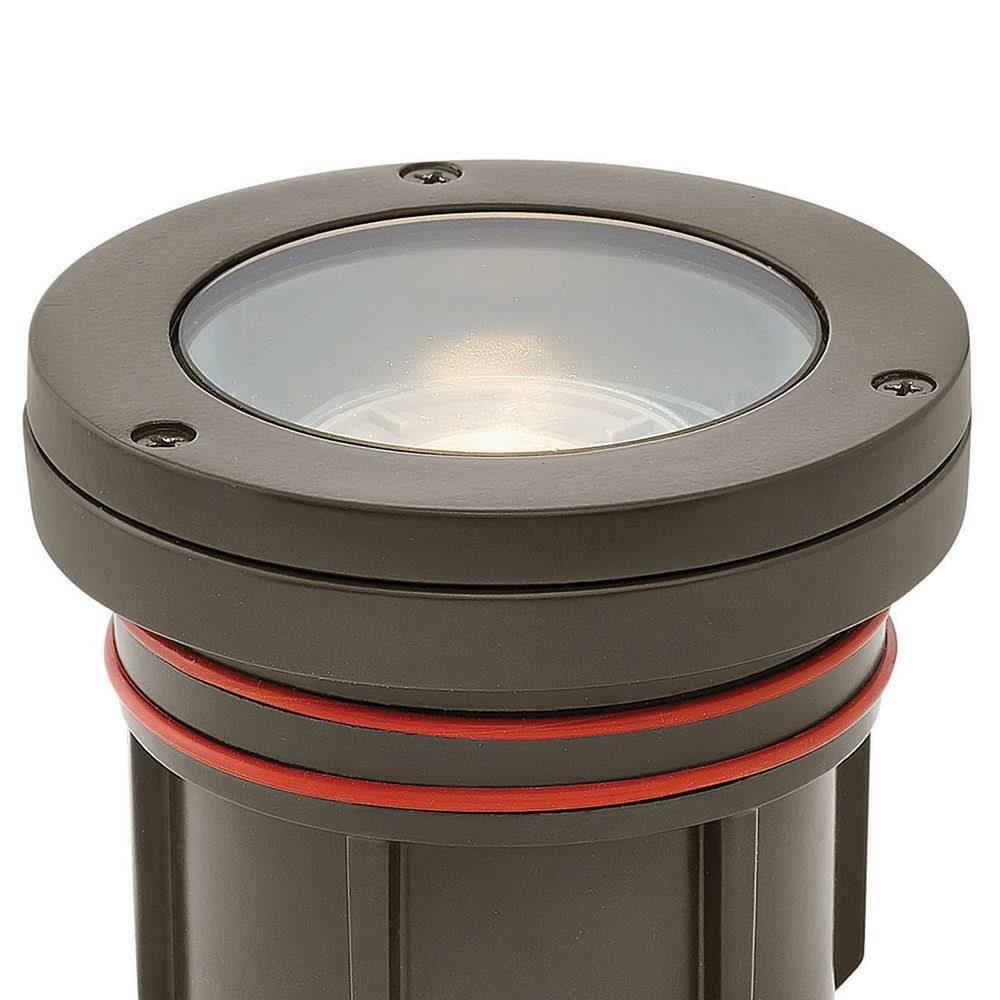

Hinkley Lighting - 55702 - 12W LED Well Light-4 Inches Tall and 4.5 Inches Wide

Product Overview

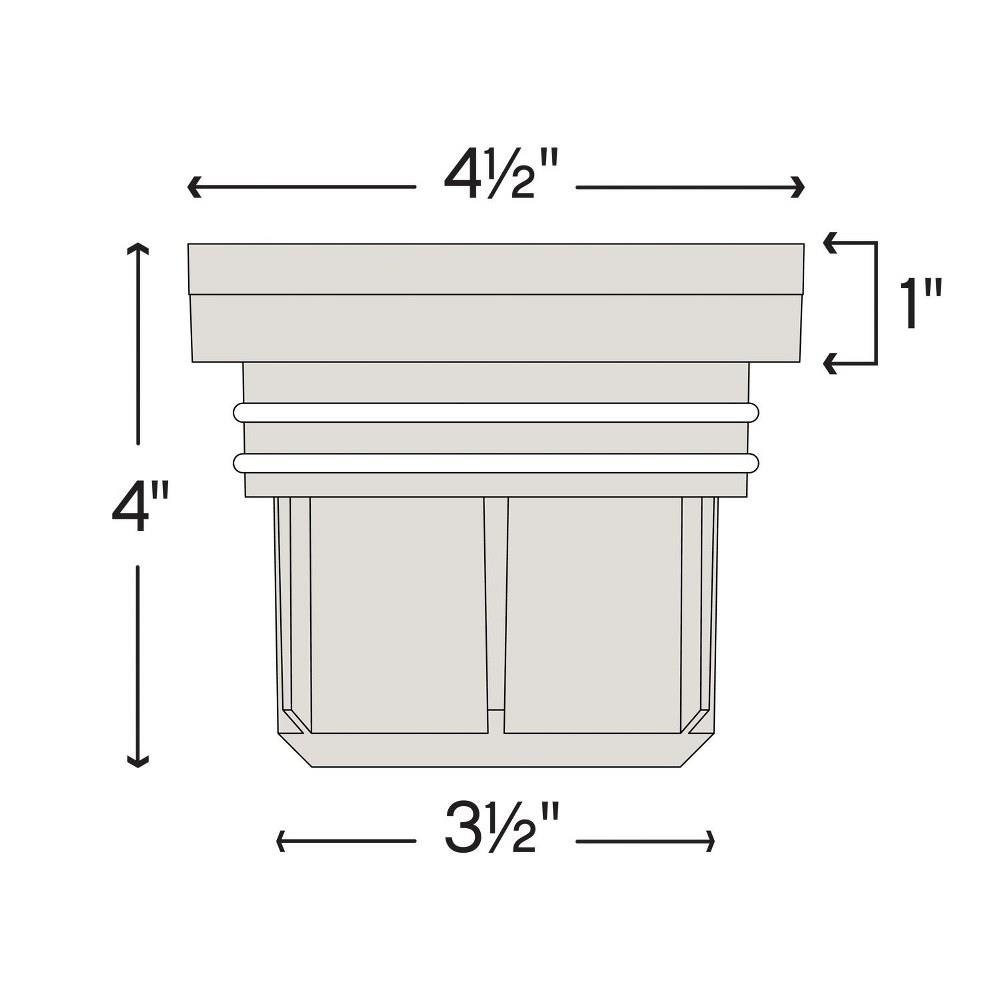

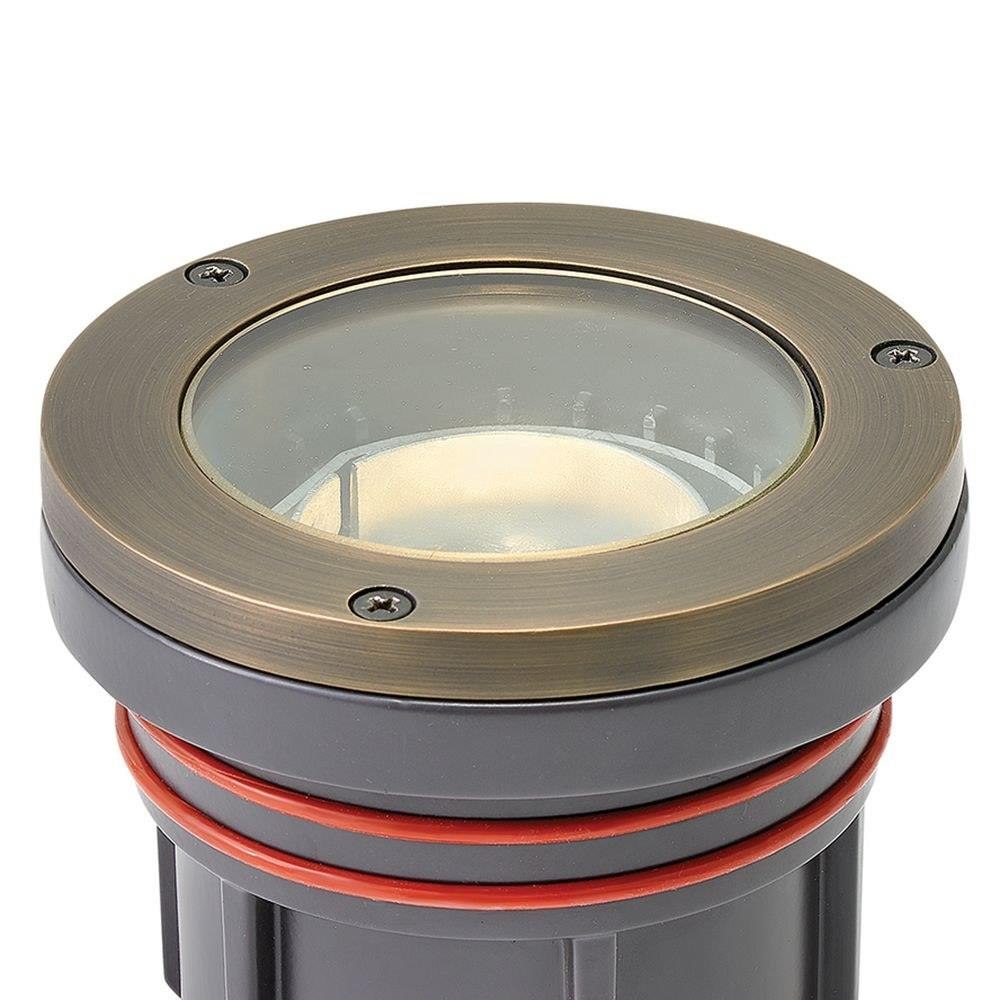

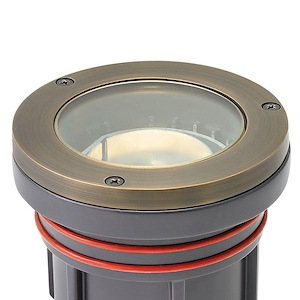

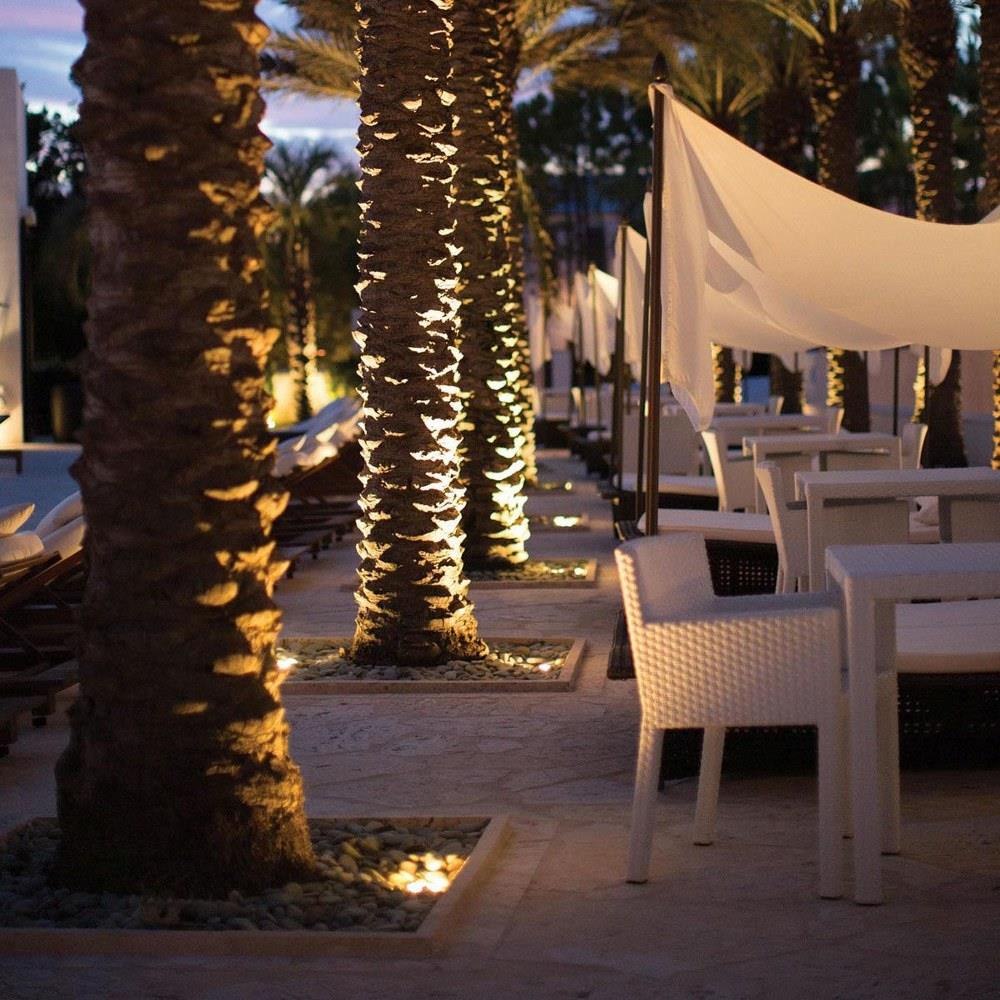

The 12W LED Well Light from the LumaCore Series is engineered for robust outdoor landscape illumination. Measuring 4 inches in height and 4.5 inches in width, this fixture delivers versatile lighting solutions with a durable aluminum construction designed to withstand demanding environments. Its compact size and warm rich light bronze finish make it an unobtrusive yet effective addition to outdoor lighting projects.

Technical Specifications

This well light incorporates high-performance CREE LEDs, rigorously tested for application reliability and efficiency. It offers multiple wattage settings—3W (260 lumens), 5W (350 lumens), 8W (475 lumens), and 12W (750 lumens)—allowing tailored illumination levels to suit various landscape needs. The fixture supports optimal drive-over protection up to 4,500 lbs, making it suitable for installation in areas exposed to vehicular traffic.

Optical and Installation Features

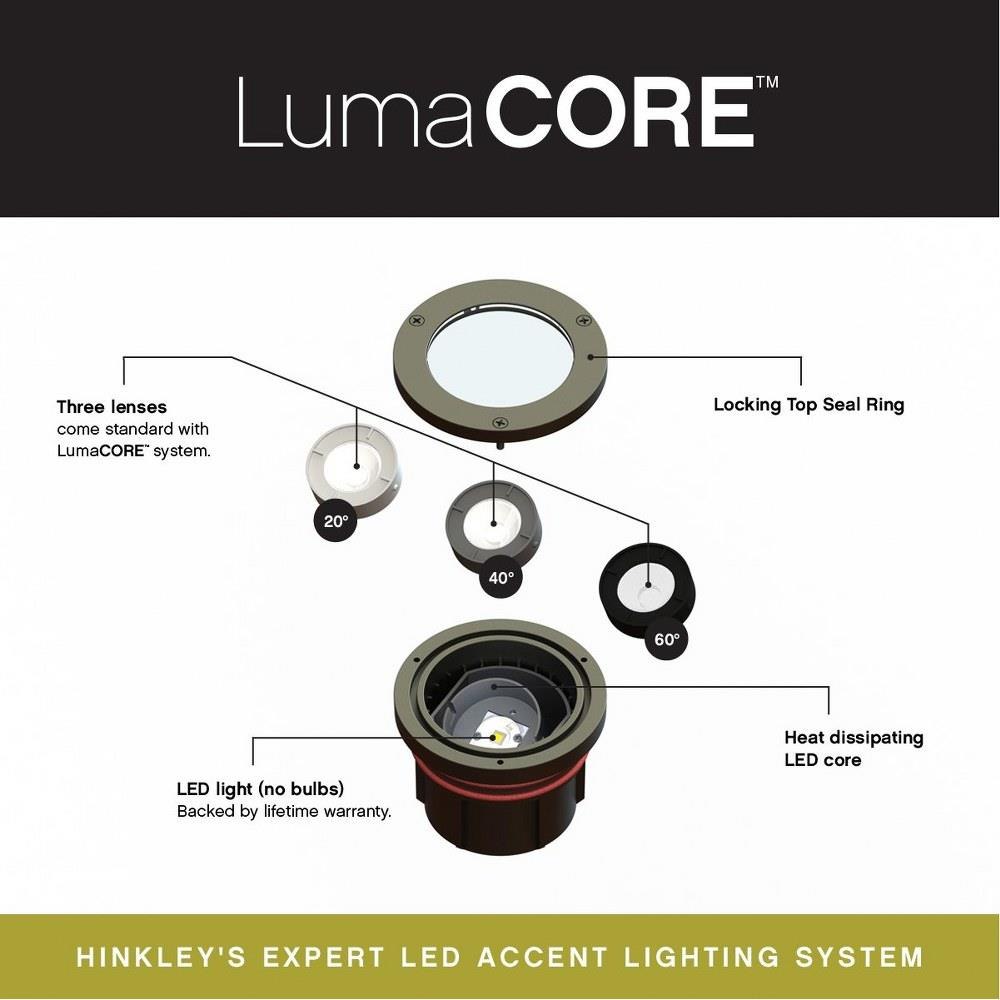

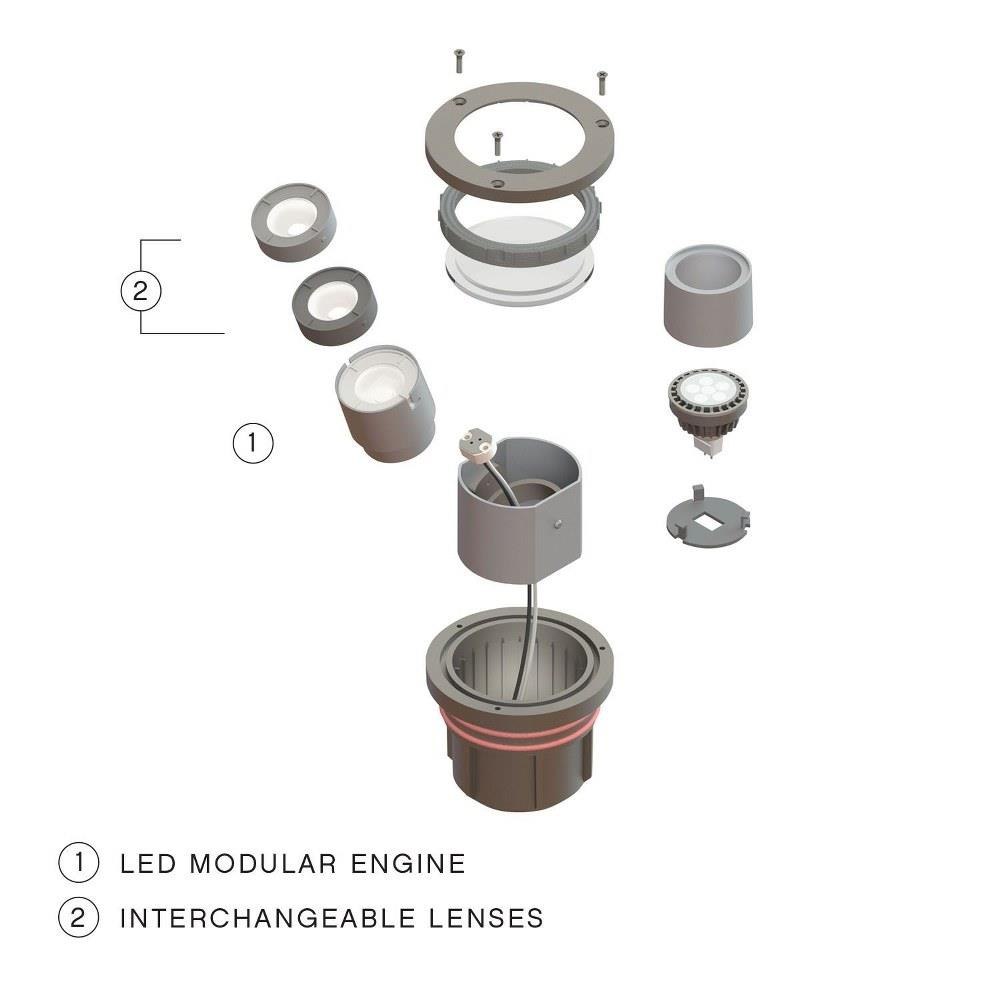

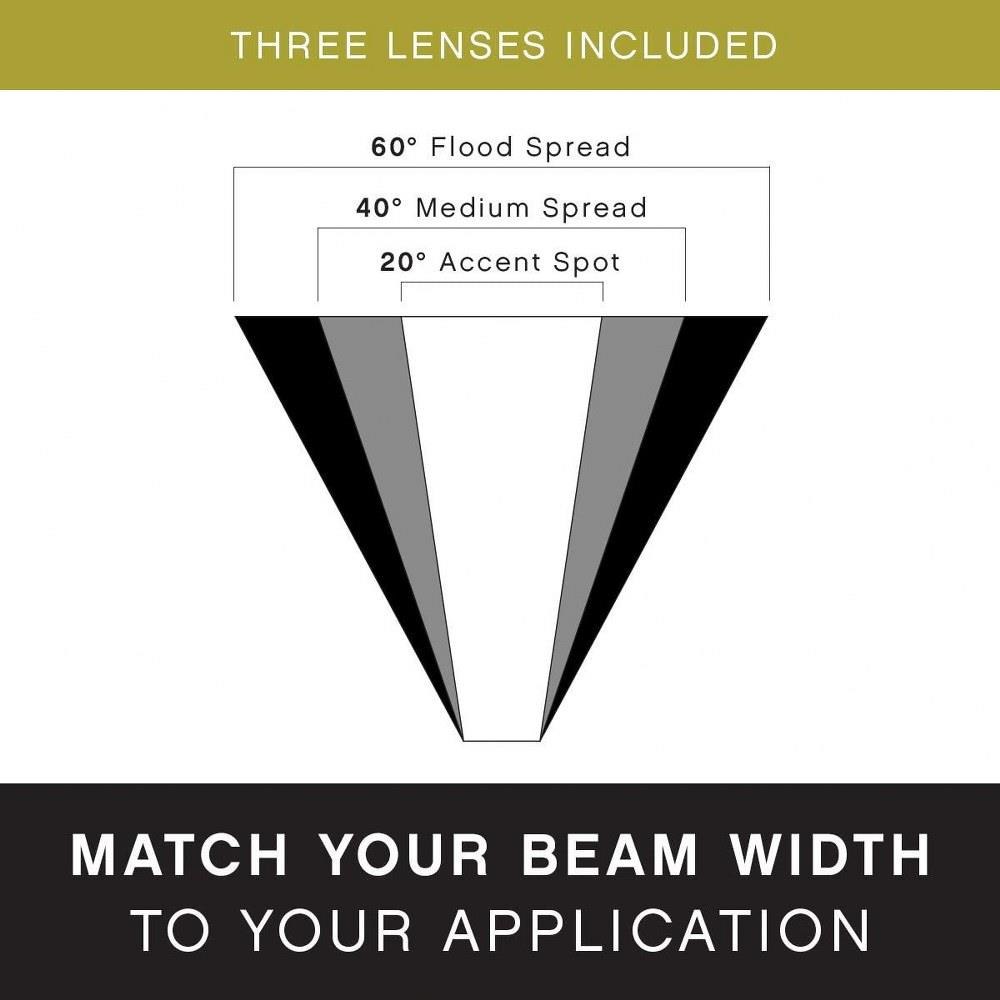

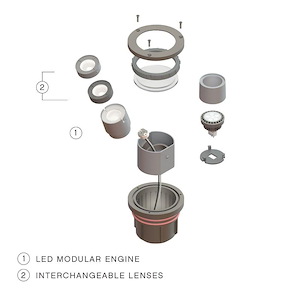

The product includes three interchangeable lens options to customize beam spread: 20° Spot, 40° Flood, and 60° Flood. These lenses are easily removable and insertable, providing flexibility in lighting design. Additional performance lenses are available as optional add-ons. Installation is facilitated by a PVC-constructed concrete pour kit and burial sleeve, supplied with the product to ensure secure and durable mounting. The fixture is rated for wet locations, compliant with NEC and CEC standards, and meets UL and CSA safety certifications.

What's Included

• Concrete pour kit
• Burial sleeve

What Needs to Be Ordered Separately

• Optional performance lenses

Key Features

• CREE LED technology for reliable and efficient lighting
• Variable output wattage settings for customizable brightness
• Three lens options for adjustable beam spread (20°, 40°, 60°)
• Drive-over protection rated up to 4,500 lbs for durability
• Wet location rated and compliant with UL and CSA safety standards
• Durable aluminum construction with warm rich light bronze finish
• Includes concrete pour kit and burial sleeve for secure installation
