Hinkley Lighting - 0150BK - Accessory - Low Voltage Landscape Transformer

Product Overview

The 0150BK Low Voltage Landscape Transformer is engineered for reliable outdoor lighting applications, specifically designed to operate safely in damp locations as defined by NEC and CEC standards. Constructed with durable resin and stainless steel components, this transformer features a striking black finish that complements various landscape designs while ensuring long-lasting performance. It meets rigorous United States UL Underwriters Laboratories and CSA Canadian Standards Association safety certifications, providing peace of mind for residential or commercial installations.

Technical Specifications

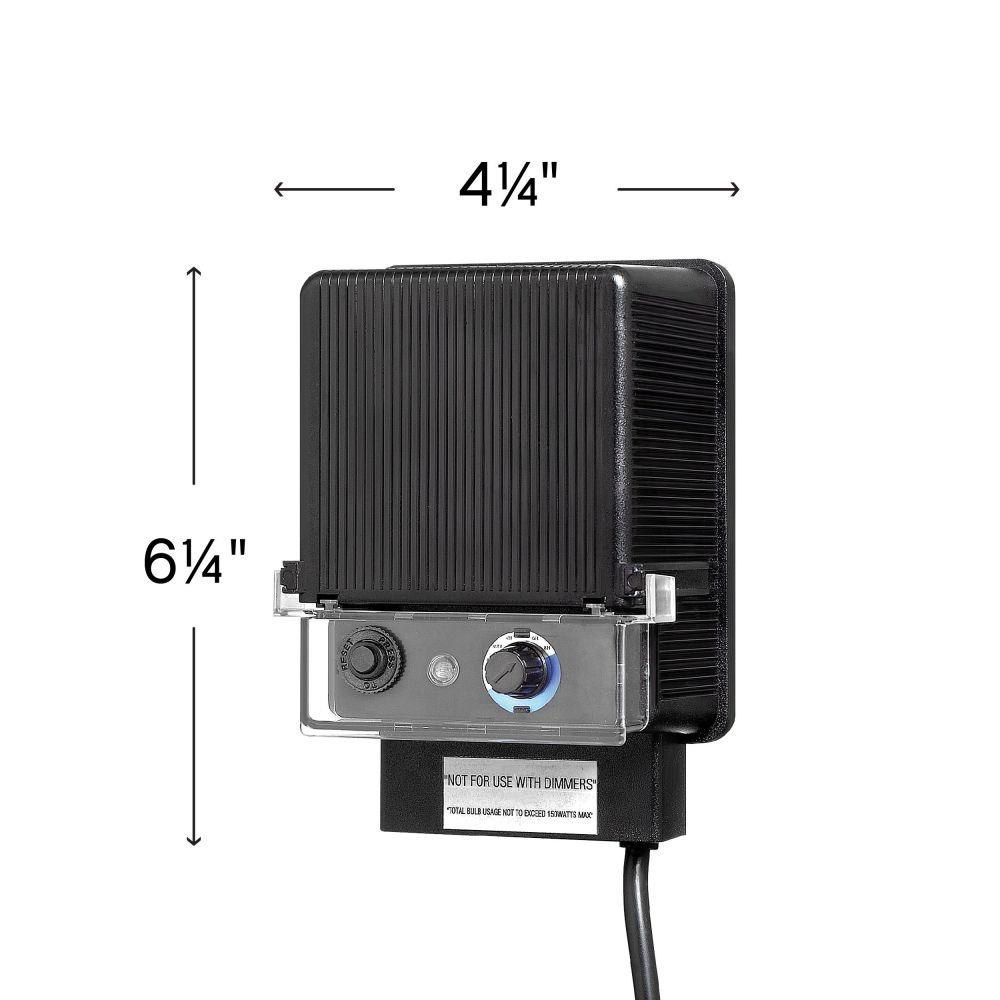

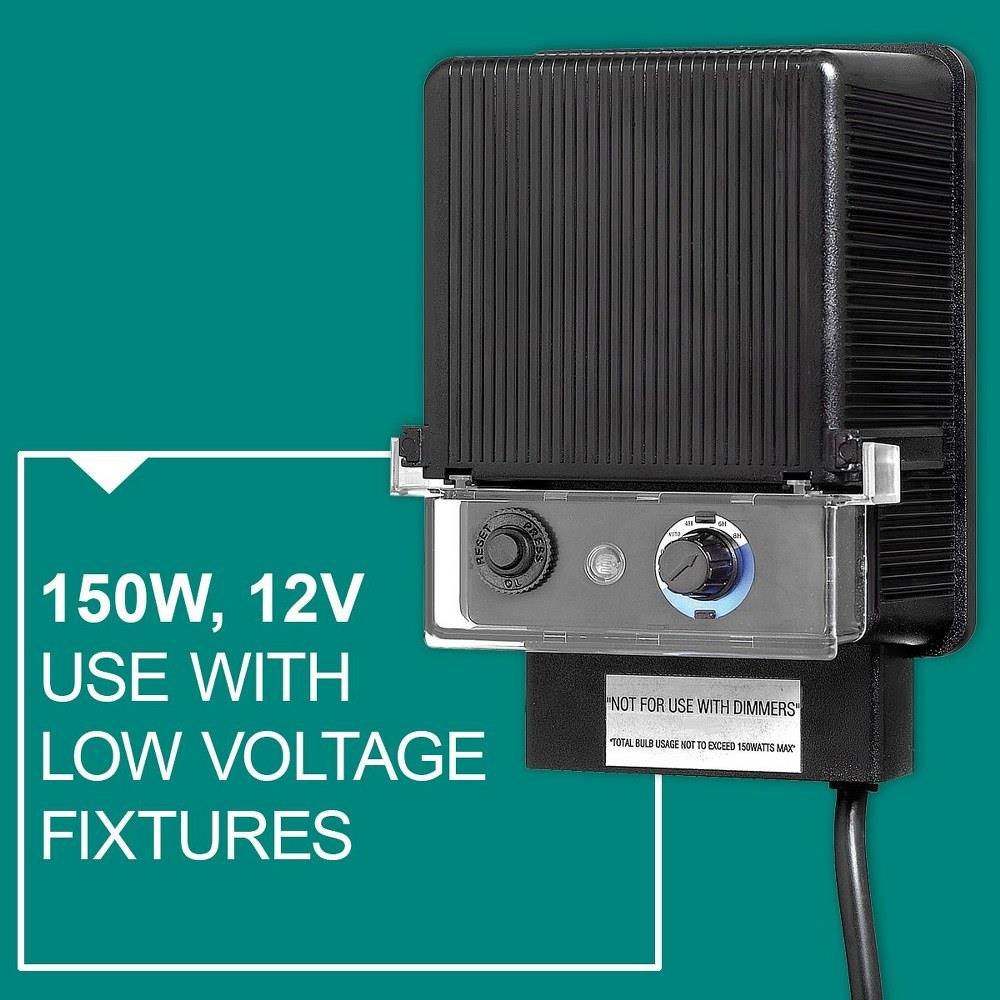

This transformer delivers 150 watts (VA) of power at a 12-volt tap, making it suitable for low voltage landscape lighting systems. The unit measures 4.25 inches in width, 6.25 inches in height, and 3.75 inches in depth, with a 3-foot cord length for flexible placement. Key safety features include a thermal cut-off on the primary side and a thermal reset on the secondary side, supported by a standard thermal block to prevent overheating. The transformer is also dimmable, enabling precise lighting control.

Integrated Control Features

Equipped with an automatic timer and a photocell, the 0150BK facilitates convenient operation by automatically switching the lighting system on at dusk and off at dawn or according to preset schedules. This automation enhances energy efficiency and extends the lifespan of connected lamps. The auto on/off switch further simplifies manual control when necessary.

What's Included

• Automatic timer
• Photocell sensor

What Needs to Be Ordered Separately

• Low voltage landscape lighting fixtures
• Mounting hardware or enclosures if required for specific installation environments

Key Features

• 150W power output at 12V tap for versatile landscape lighting
• Durable resin and stainless steel construction with black finish
• Certified for damp location use per NEC and CEC standards
• Integrated automatic timer and photocell for energy-efficient operation
• Thermal protection with cut-off and reset mechanisms to ensure safety
• Dimmable functionality for customizable lighting ambiance
• 3-foot cord length for flexible installation options
• 10-year warranty for long-term reliability

0150 BK 150w Standard Transformer Features:

• Finish: Black
• Width: 4.25 inches
• Height: 6.25 inches
• Depth: 3.75 inches
• Cord Length: 3 feet
• Wattage (VA): 150 watts
• Tap: 12v
• Construction: Stainless Steel
• Automatic Timer
• Photocell
• Auto On/Off Switch
• Thermal Cut-Off Primary Side
• Thermal Reset Secondary
• Standard Thermal Block
