Hinkley Lighting - 0075WSS - Accessory - Low Voltage 75 Watts Landscape Standard Transformer

Product Overview

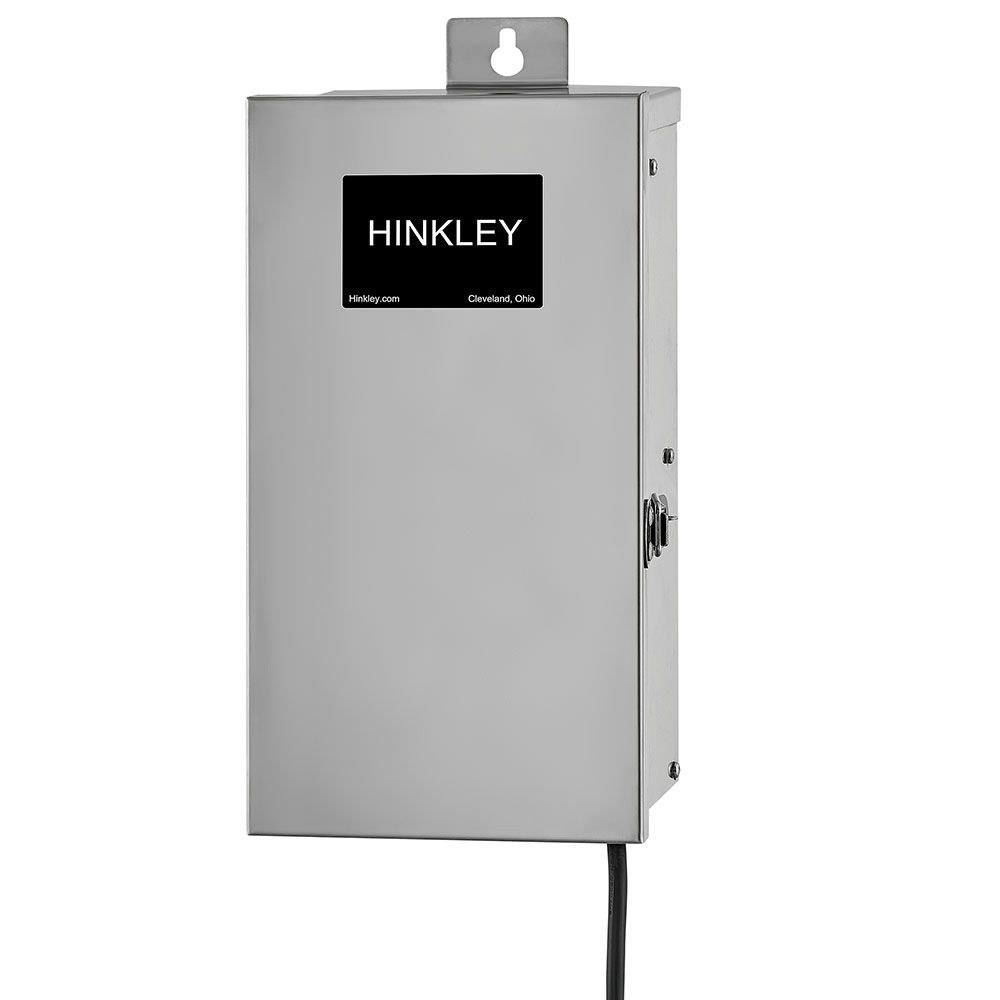

The 0075WSS Low Voltage 75 Watts Landscape Standard Transformer delivers reliable power conversion for outdoor lighting systems. Engineered with a robust steel housing, this transformer is designed to withstand wet locations, including direct exposure to rain or sprinkler systems, in compliance with NEC and CEC safety standards. It meets UL and CSA certifications, ensuring superior safety and performance for landscape lighting applications.

Technical Specifications

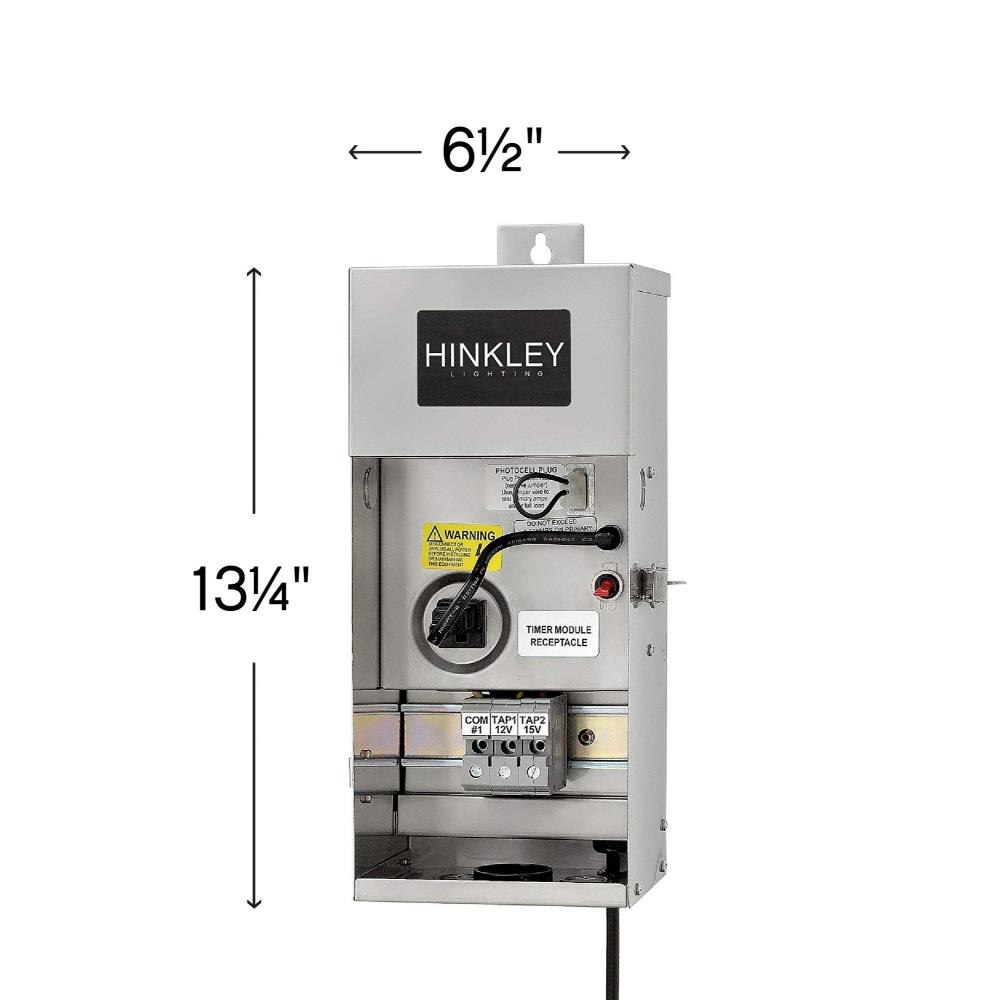

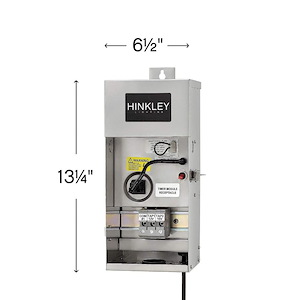

Measuring 13.50 inches in height, 14 inches in width, and 6.50 inches in length, this transformer offers a compact footprint suitable for various installation environments. It provides 75 watts of power output with dimmable functionality to accommodate adjustable lighting levels. Constructed from durable steel, the unit is built to endure outdoor conditions while maintaining consistent electrical performance.

Installation and Compatibility

Designed for straightforward integration into low voltage landscape lighting systems, the 0075WSS transformer supports modular add-ons such as a timer and photocell, which are sold separately. The available photocell (item number 1503PH) and timer options—including a standard timer (item number 1505TC) and a digital timer (item number 0200LT)—enable automated control of lighting schedules and ambient light detection, enhancing energy efficiency and convenience.

Key Features

• 75 watts low voltage power output with dimmable capability
• Steel construction for enhanced durability in outdoor, wet environments
• Certified to UL and CSA safety standards for reliable performance
• Compatible with optional modular timer and photocell controls
• Compact dimensions facilitate versatile installation options
• Lifetime warranty ensures long-term product confidence

What's Included

• 75W Landscape Standard Transformer (Model 0075WSS)

What Needs to Be Ordered Separately

• Photocell (Item 1503PH)
• Standard Timer (Item 1505TC)
• Digital Timer (Item 0200LT)

Photcell and Timer are not included

Photocell: item number 1503PH

Timer:
Standard: item number 1505TC
Digital: item number 0200LT
