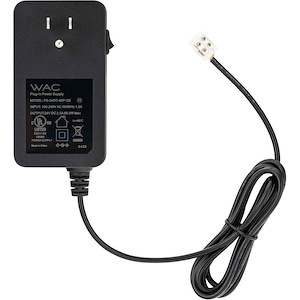

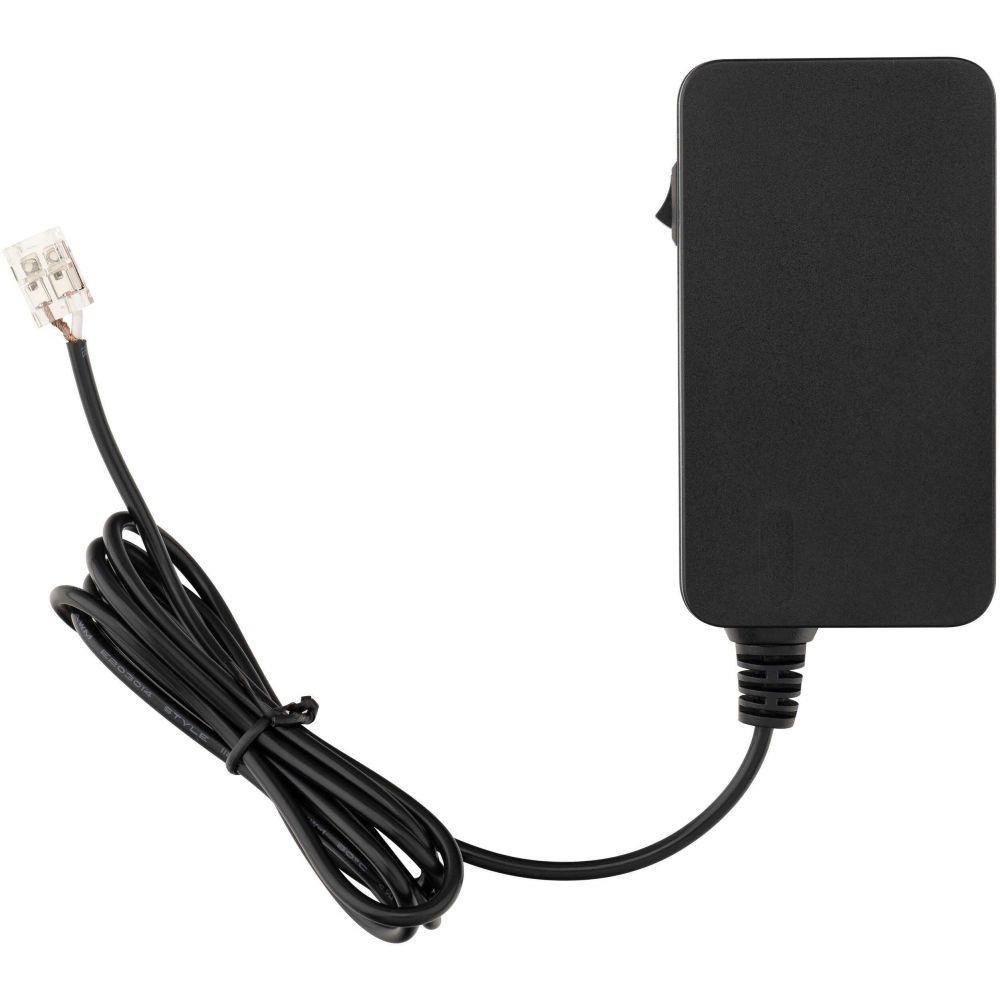

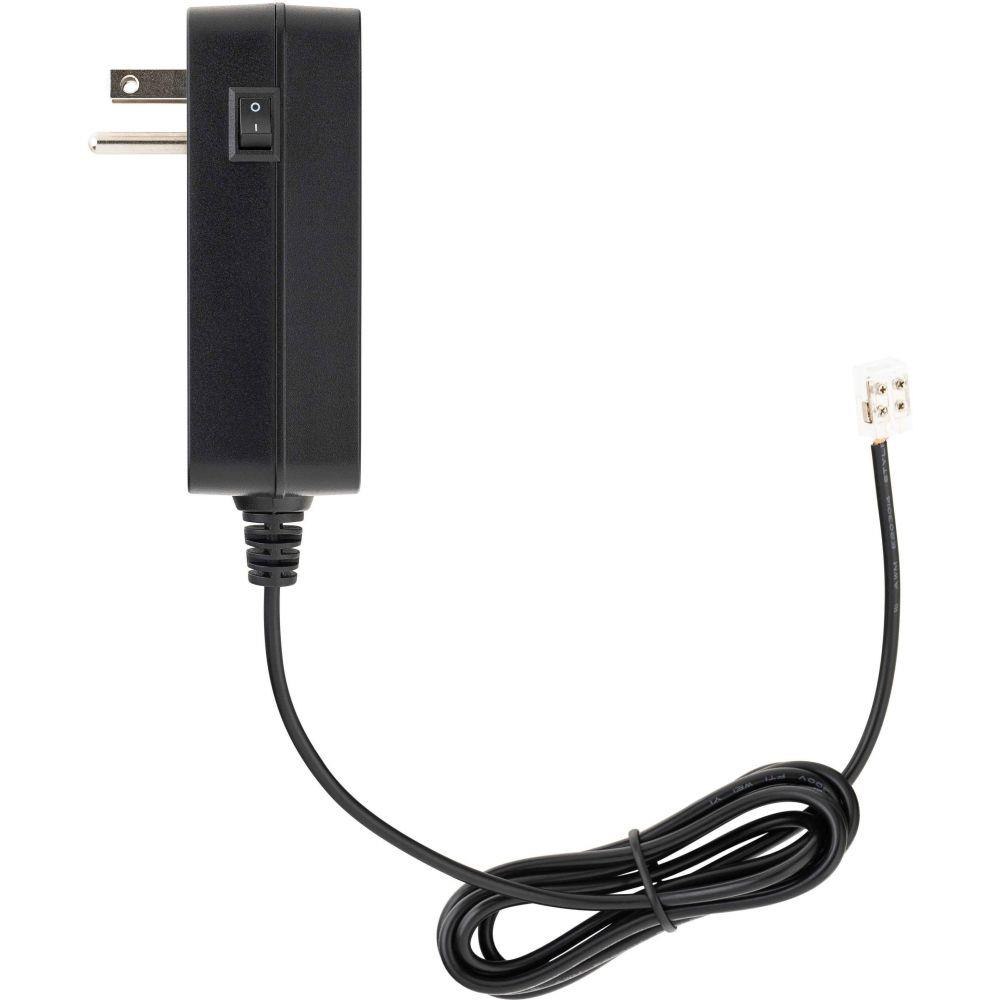

WAC Limited - PS-24DC-60P-GE - Basics & Gemini - 60W Plug-in Power Supply-1.38 Inch Tall and 4 Inch Wide

This class 2, UL & cUL listed enclosed electronic transformer is used to power Basics & Gemini Tape Light by WAC Lighting. Class 2 transformers are intrinsically safer transformers because they are compartmentalized to allow no greater than 5 amps of current to be drawn on each compartment. Enclosure cover is easy to remove. Transformer is plug-in and can connect to any standard 120V receptacle. Secondary low voltage wiring for class 2 transformers do not require conduit sheathed cable or clamp wiring techniques. This transformer has a low minimum load requirement of 1W to allow the use of LED products. May be dimmed using an electronic low voltage dimmer. Includes a 72in lead wire for Basics & Gemini, longer lead wires (T24-BS-EX2) are sold separately.

• Fully enclosed 120V plug-in power supply. Soft start, short and overload circuit protection features. For use with WAC Lighting Basics & Gemini Tape Light systems.
• 1W Minimum load to support low load LED systems. Intrinsically safe, Class 2 transformers permit no greater than a 5 amp current to be drawn. Includes a 72in lead wire for Basics & Gemini, longer lead wires (T24-BS-EX2) are sold separately.
• 72in low voltage cable with tape-to-power connector for simple install to WAC Gemini or Basice tape.
• Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer. Dimmers should always be installed on the primary side of the transformer.
• Input Voltage: 120VAC, Output Voltage: 24VDC, 60W max load.
• Standards: UL & cUL # 1598 Listed for Damp Locations IP20 rated. CEC Title 24 & ADA Compliant.
