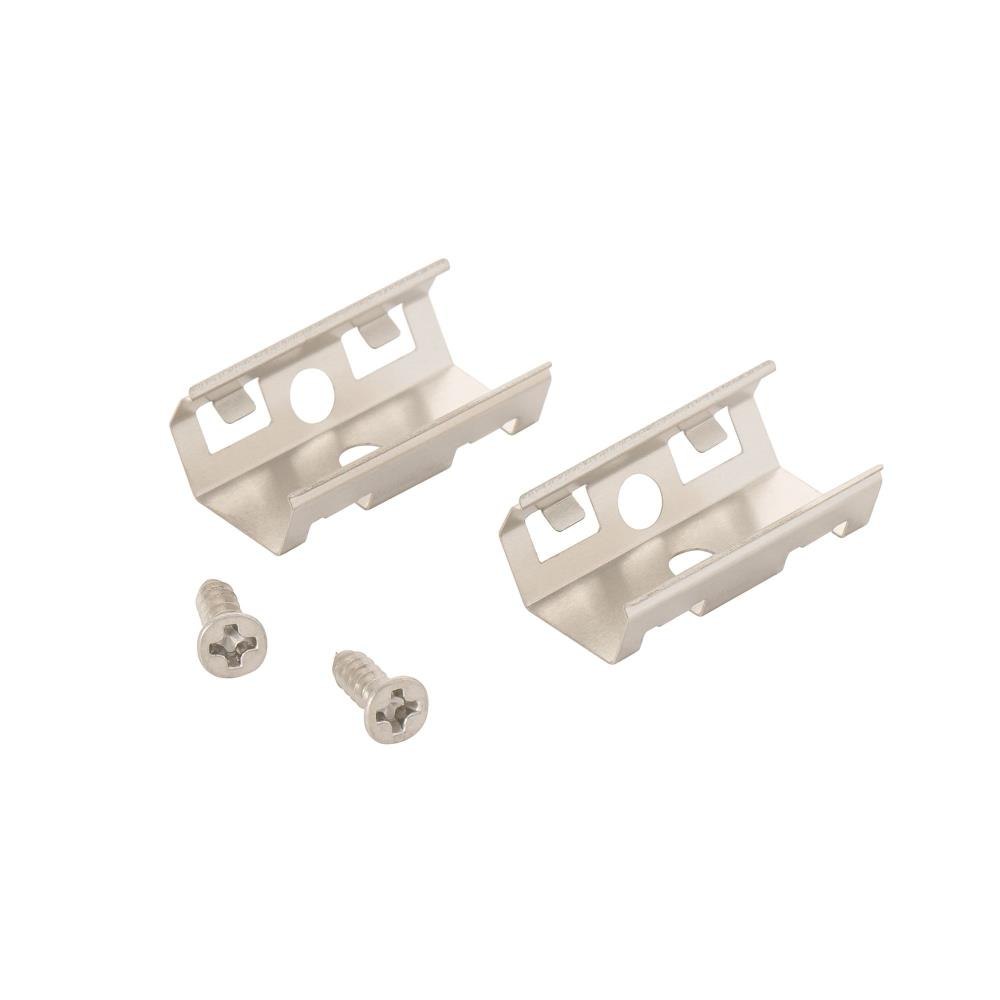

WAC Limited - LU-AB - Angled Base Mounting Accessory-0.38 Inch Tall and 0.58 Inch Wide

WAC undercabinet LED linear strip lights are deal for kitchen undercabinet lighting applications with plug & play feature easy to order and install. This low-profile luminaire is just 1/2” inch tall and 1/2” wide while delivering over 200 lumens per foot. For a clean architectural look, join the strips end-to-end seamlessly.

• CONSTRUCTION: 1/2in aluminum extrusion with high-powered integrated LED's, available in 8in, 20in, and 40in lengths. Translucent diffuser provides a bright and even illumination with no visible hot spots. Available in aluminum or black finishes.
• INSTALLATION: Each strip includes 1 x I-connector for extending lengths, 2 x end caps, and 2 x mounting brackets. Plug-In (Part # LU-2420D-P) or Remote hardwired (Part # LU-24DC060) power supply required and sold separately. Max run of 18 feet, on 96W power supply and 12 feet on a 60W power supply.
• FEATURES: Connect multiple pieces together for seamless run; various mounting accessories and joiner cables to allow a variety of configurations including 90 degree turns and joiner cables. LU-AB is additional mounting clips, LU-EC is additional end caps , LU-FB is a 30 degree fixed angle mounting clip, LU-I is an additional I-Connector, and LU-IC are joiner cables (2in, 6in, 12in, 36in, and 72in lengths).
• DIMMING: Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC (standard LED/CFL) dimmer; Dims down 10% with a dimmer.
• SPECIFICATIONS: High Powered LED, Power: 3W, 6W, or 12W , Delivered Lumens: 140, 260, or 700 LM, CRI: 90+, Rated Hours: 50,000 LM-70, Color Temperature: 2700K or 3000K (Order accordingly).
• STANDARDS: ETL, cETL UL # 2108 listed IP44 for Dry or Damp interior locations.
