Product Overview

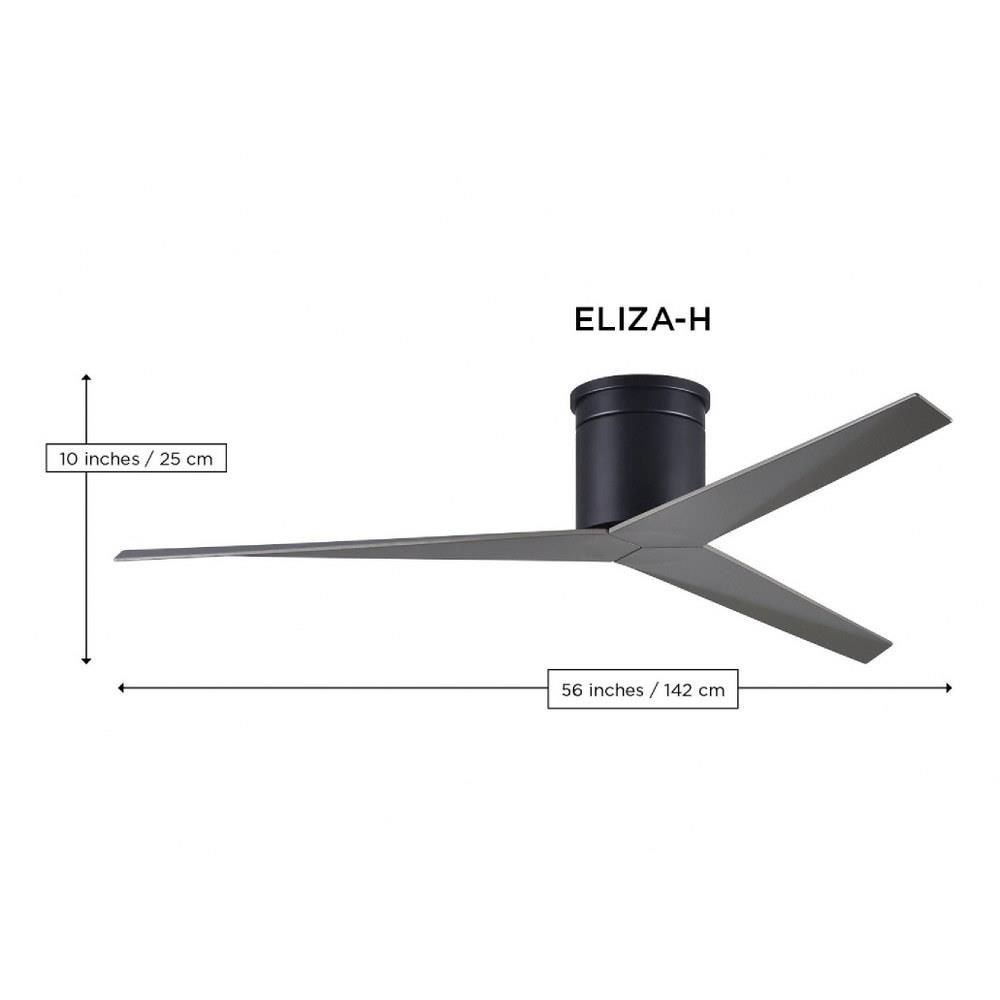

Enhance indoor air circulation with the Eliza-H Flush Mount Ceiling Fan, a sophisticated blend of contemporary and transitional design crafted by Chicago architect Stephen Katz in 2014. This ceiling fan measures 10 inches in height and 56 inches in both width and length, featuring a 56-inch blade span with a 27-degree blade pitch. Its unique blade geometry is engineered to optimize air movement at the blade edges, resulting in efficient airflow and reduced drag for superior motor performance.
Technical Specifications
The Eliza-H fan delivers versatile airflow with three speed settings: low speed at 1,123 cubic feet per minute (CFM), medium speed at 2,578 CFM, and high speed at 4,034 CFM. The fan is constructed from durable materials including aluminum, polycarbonate, and heavy stamped steel, finished in brushed nickel for a sleek, modern look. It features a flush mounting hanging method with an 8-inch canopy diameter and includes a standard 10-inch downrod for installation flexibility.
Design and Functionality
This fan’s minimalist geometry creates a stationary visual statement that complements both contemporary and transitional interiors. The three blades are designed to maximize air velocity rings at the outer edges, enhancing airflow efficiency while minimizing blade drag. This technical design ensures optimal motor performance and energy efficiency, making it suitable for various rooms such as bedrooms, dining rooms, foyers, kitchens, living rooms, and offices.
Installation and Usage
The Eliza-H requires assembly and is intended for interior use, with damp location suitability but not recommended for saltwater or oceanfront environments. Its flush mount design allows for installation in spaces with standard ceiling heights, providing effective air movement without compromising room aesthetics.
What's Included
- Eliza-H Flush Mount Ceiling Fan unit
- Standard 10-inch downrod
- 8-inch diameter canopy
- Assembly hardware
What Needs to Be Ordered Separately
- Optional remote control (not included)
Key Features
- 56-inch blade span with 27-degree blade pitch for optimized airflow
- Three-speed settings delivering up to 4,034 CFM airflow
- Durable construction with aluminum, polycarbonate, and heavy stamped steel
- Flush mount hanging method with 8-inch canopy diameter
- Contemporary and transitional style suitable for diverse interior décors
- Designed by architect Stephen Katz for superior function and minimalist aesthetics
