Product Overview

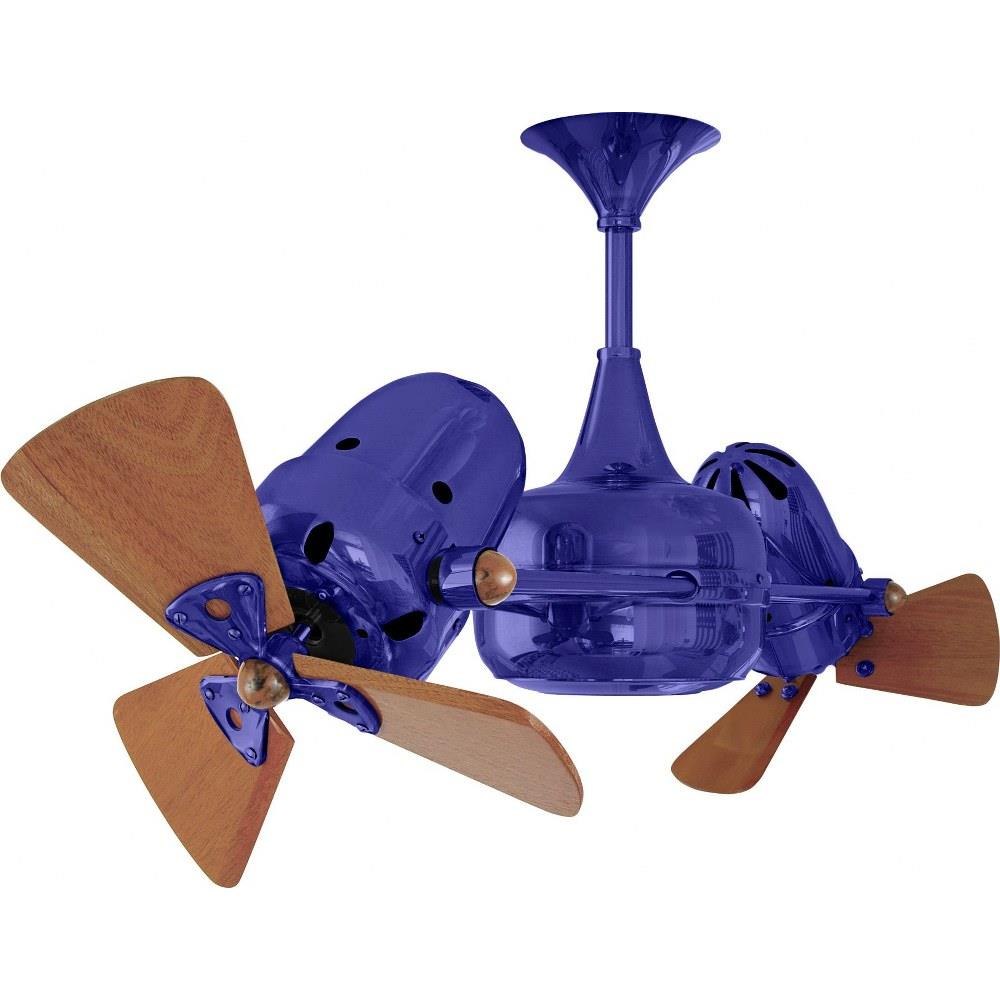

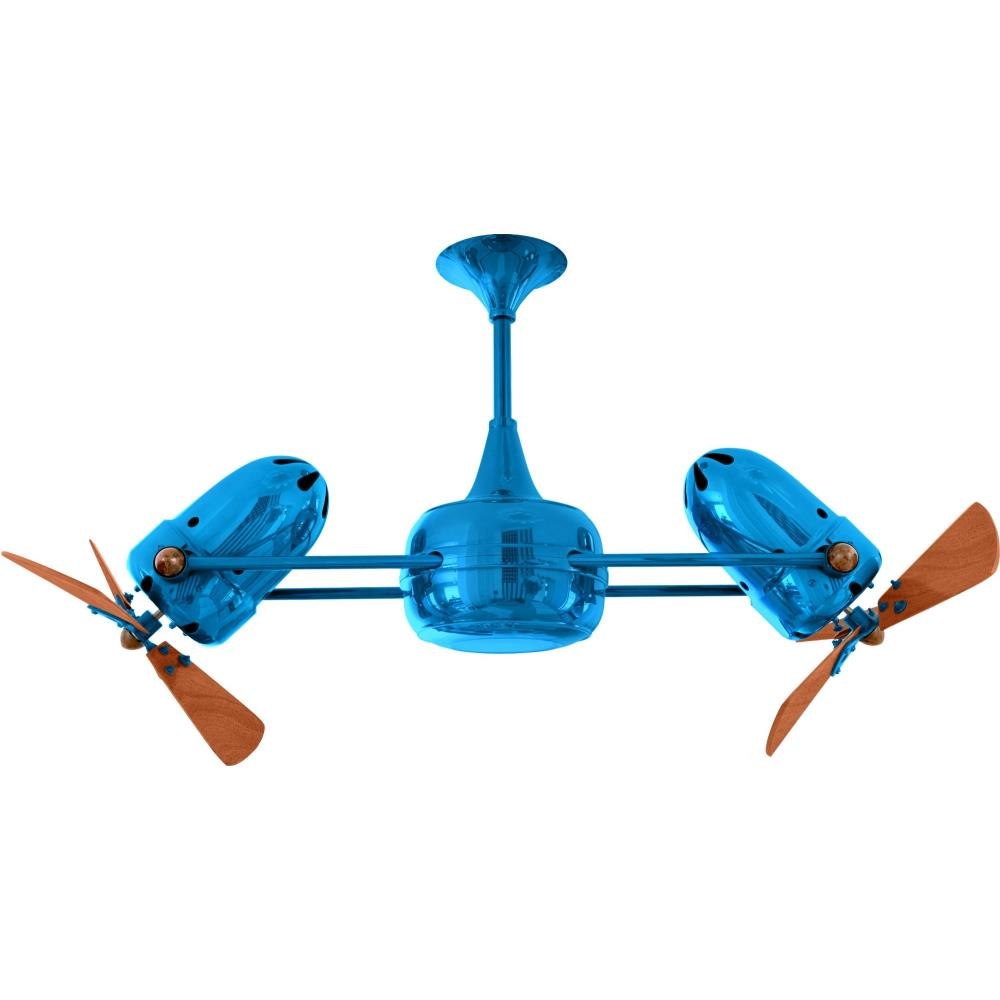

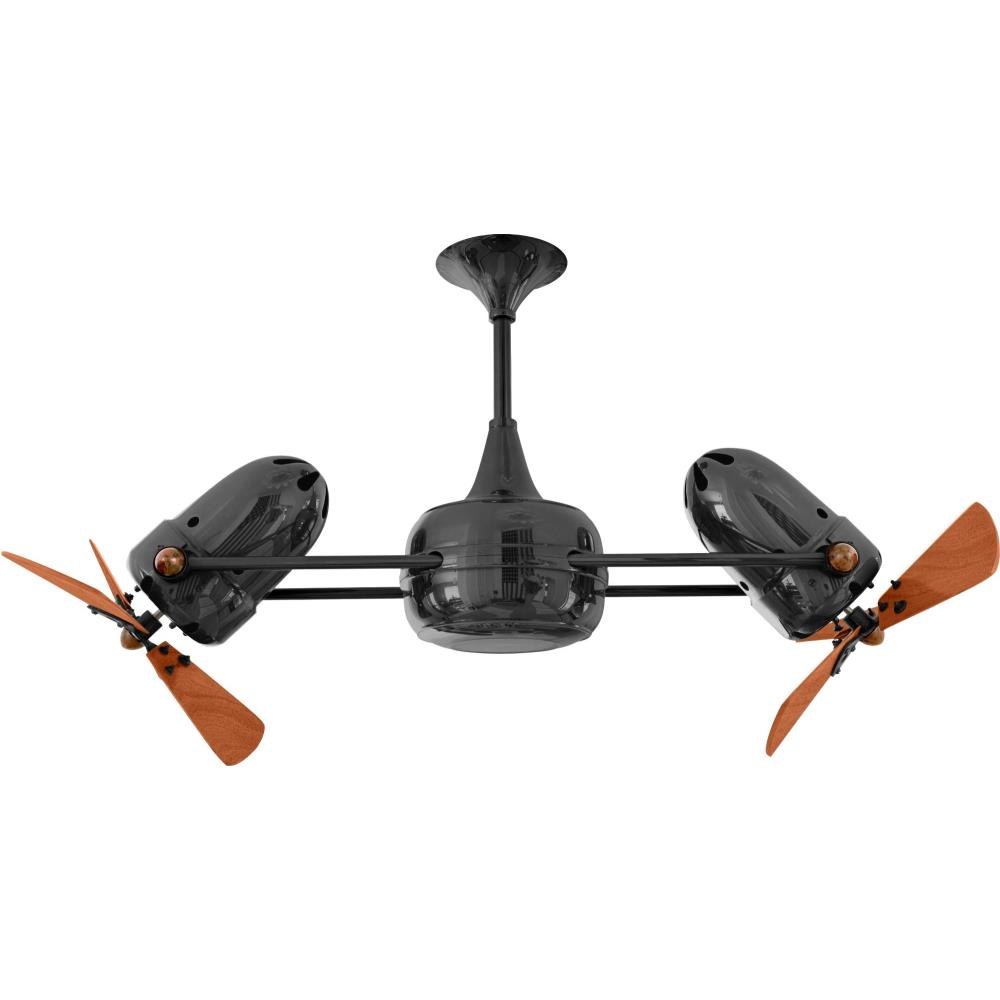

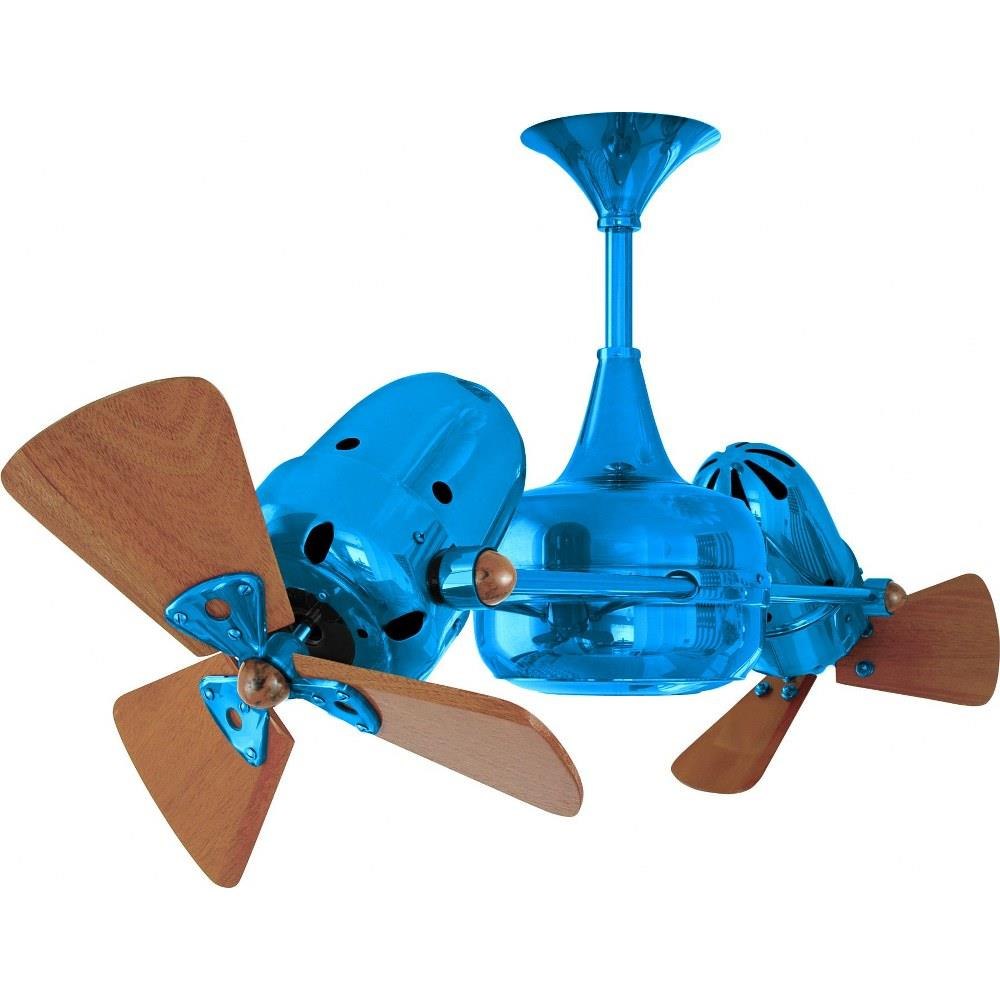

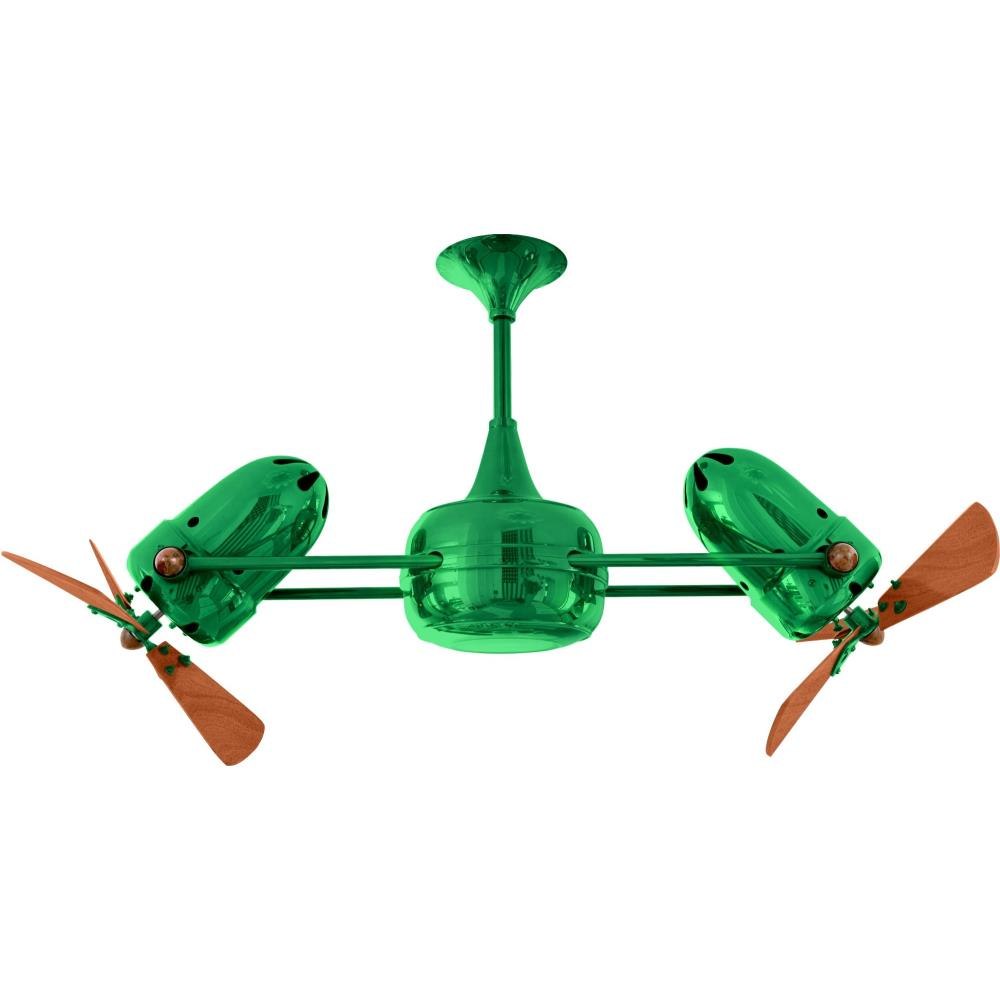

Enhance indoor air circulation with the Duplo-Dinamico 36 Inch Rotational Ceiling Fan, a sophisticated fixture designed for both aesthetic appeal and superior performance. This fan features a 12-inch height and a 36-inch width, equipped with three blades positioned on cast aluminum and heavy spun steel construction for durability and longevity. Its unique design allows the fan heads to be infinitely positioned within a 180-degree arc, enabling precise control over airflow direction without automatic oscillation.
Technical Specifications
The Duplo-Dinamico fan delivers efficient air movement with airflow rates of 2,673 cubic feet per minute on low speed and 3,210 cubic feet per minute on high speed. The blade pitch is set at 19 degrees, optimizing axial rotation speed based on the angle of the fan heads relative to the horizontal support rods. This configuration allows for slow, controlled axial rotation, enhancing the circulation of heat and air conditioning more effectively than traditional paddle fans.
Material and Build Quality
Constructed from premium cast aluminum and heavy spun steel, this ceiling fan ensures exceptional durability and stability. Each motor mount and fan head knob is crafted from genuine marbleized Bakelite, adding a distinctive touch of quality. The fan includes a powder or clear coat finish suitable for damp locations, though it is not recommended for saltwater or oceanfront environments.
Blade Options and Safety
The fan offers versatile blade options to suit various installation needs: metal blades with decorative metal guards, solid Brazilian mahogany blades harvested ecologically without guards, and metal blades with safety cages designed for low ceiling applications (minimum ceiling height of 7 feet in the US and 8.2 feet in Canada). Safety cages are available to enhance protection in low clearance settings.
Installation and Controls
The Duplo-Dinamico fan is designed for stem hanging with a standard 10-inch downrod included. Optional downrods in lengths of 5", 20", 30", 48", or 72" are available and can be easily field-cut to accommodate specific ceiling heights. The flat ceiling canopy is compatible with a 29-degree vaulted ceiling canopy for angled ceilings. Control is provided via a Decora-style 3-speed wall switch in white, allowing for convenient speed adjustment.
What's Included
- Duplo-Dinamico 36 Inch Rotational Ceiling Fan with 3 blades
- 10-inch downrod
- Flat ceiling canopy
- Decora-style 3-speed wall switch (white)
What Needs to be Ordered Separately
- Optional downrods (5", 20", 30", 48", 72") if different length is required
- Safety cages for low ceiling applications
- Vaulted ceiling canopy for ceilings with a 29-degree angle
Key Features
- Infinite 180-degree positioning of fan heads for optimized air movement
- Cast aluminum and heavy spun steel construction with limited lifetime warranty
- Blade pitch of 19 degrees for efficient axial rotation and airflow
- Multiple blade material options including ecologically harvested Brazilian mahogany
- Decora-style 3-speed wall control for precise speed adjustments
- Compatible with low ceiling safety cages and vaulted ceiling canopy
- Damp location rated with powder or clear coat finish
