Product Overview

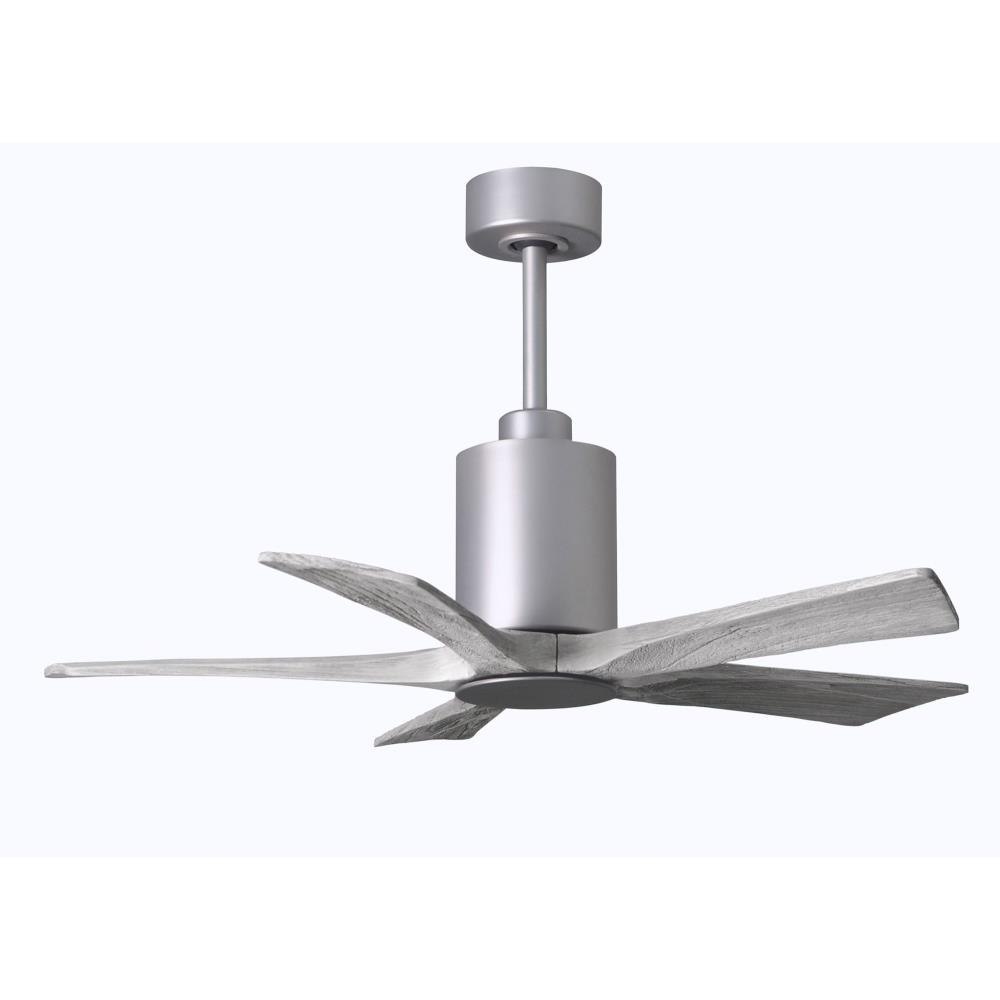

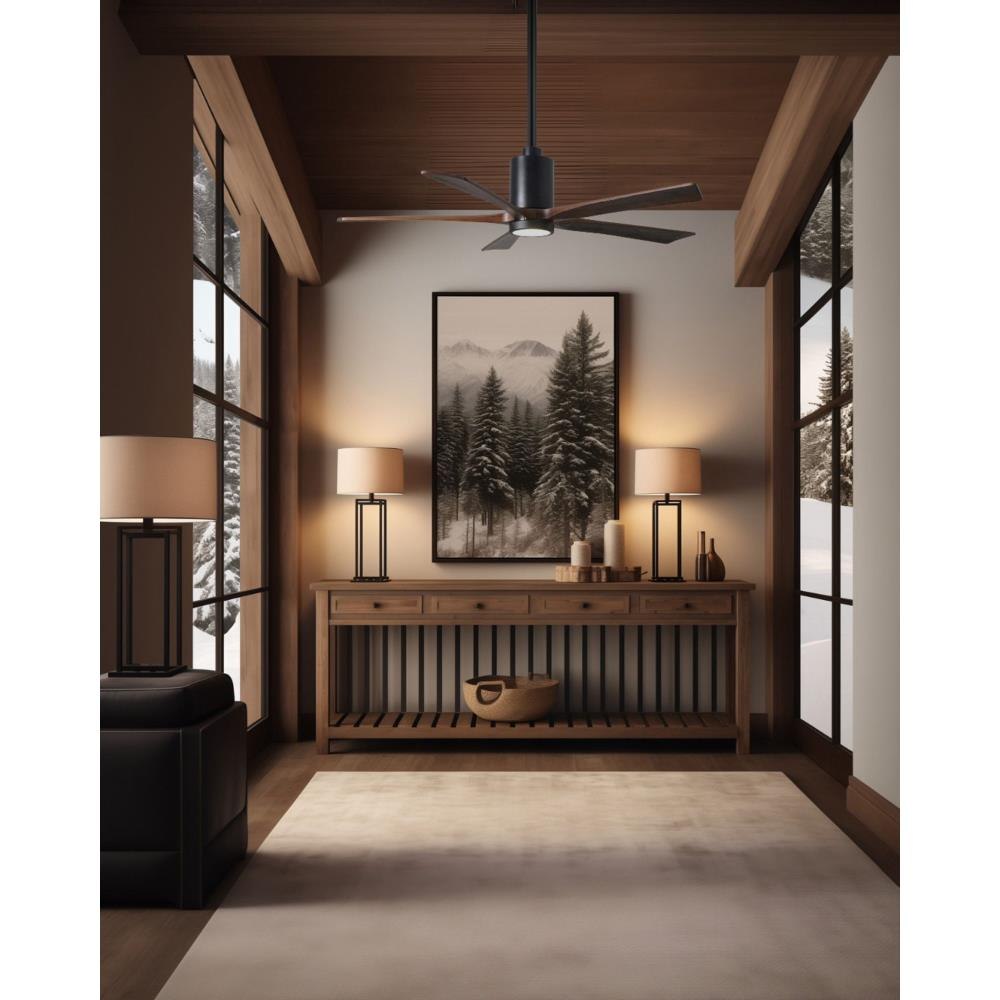

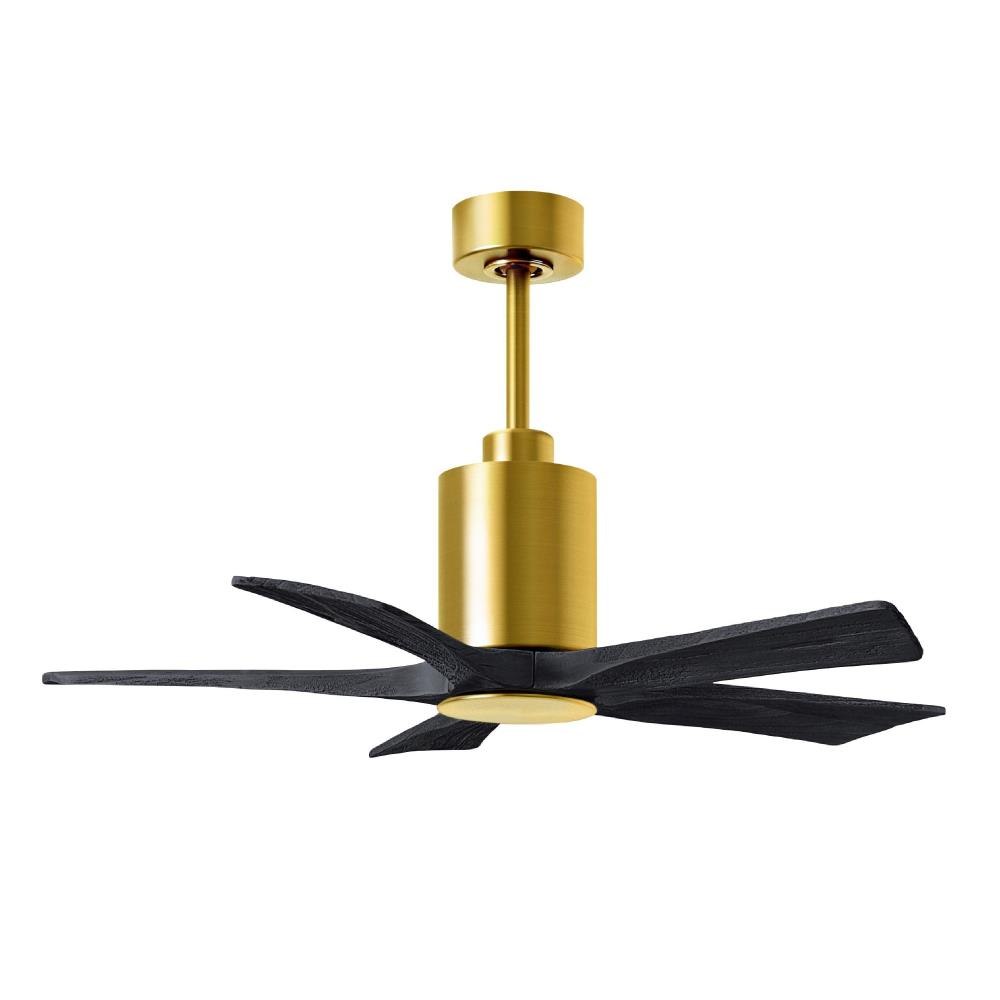

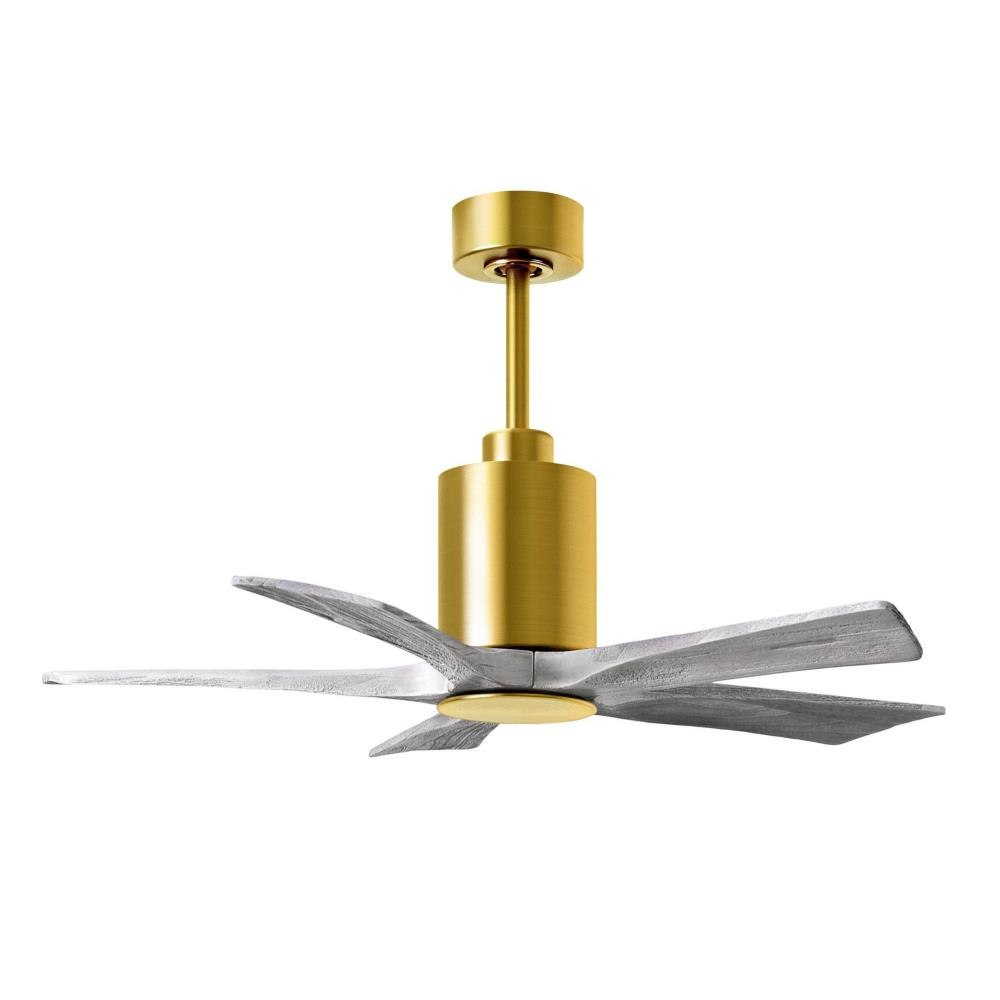

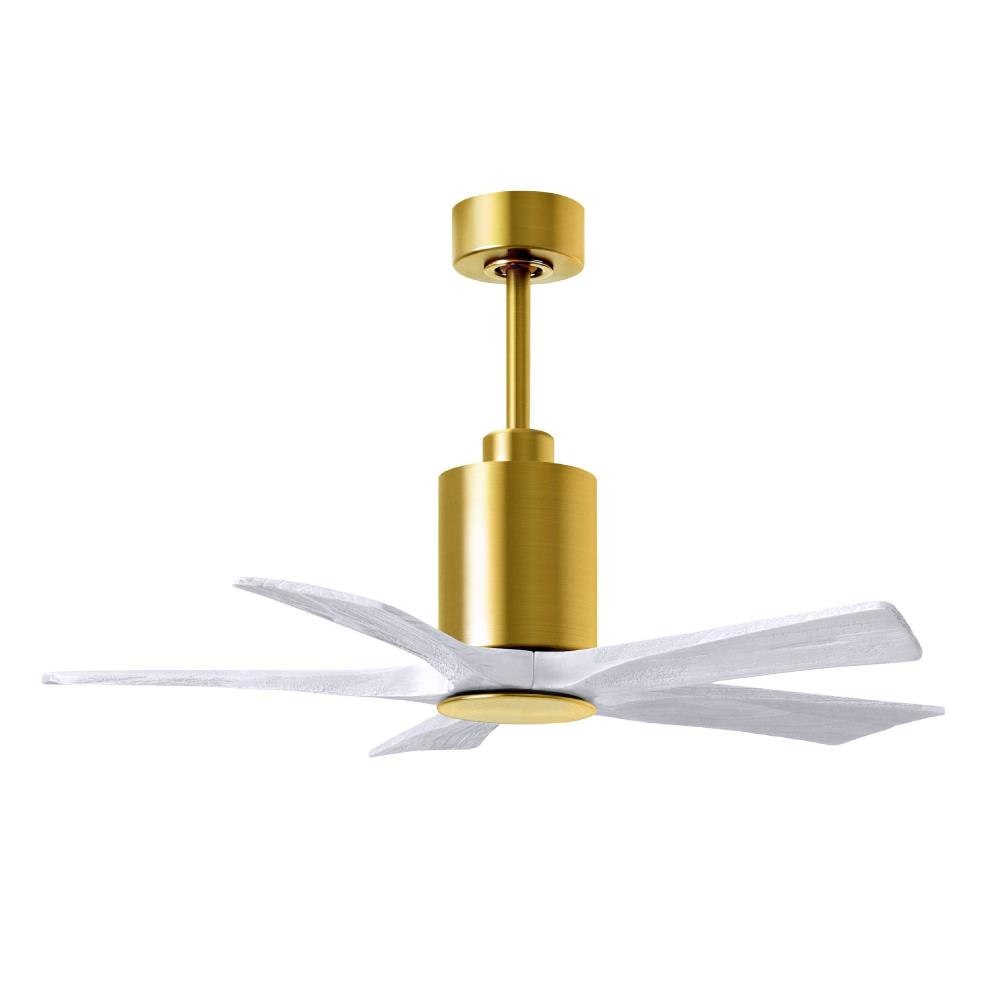

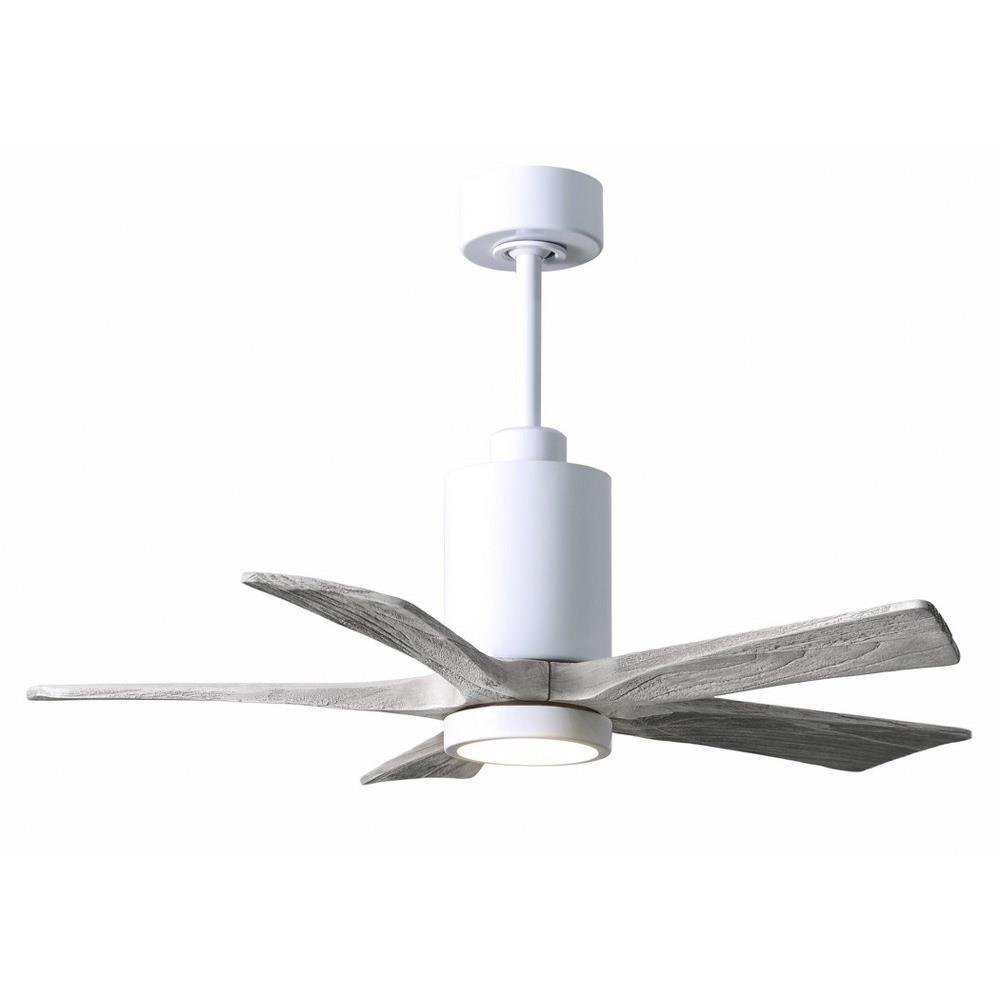

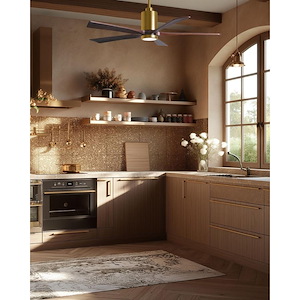

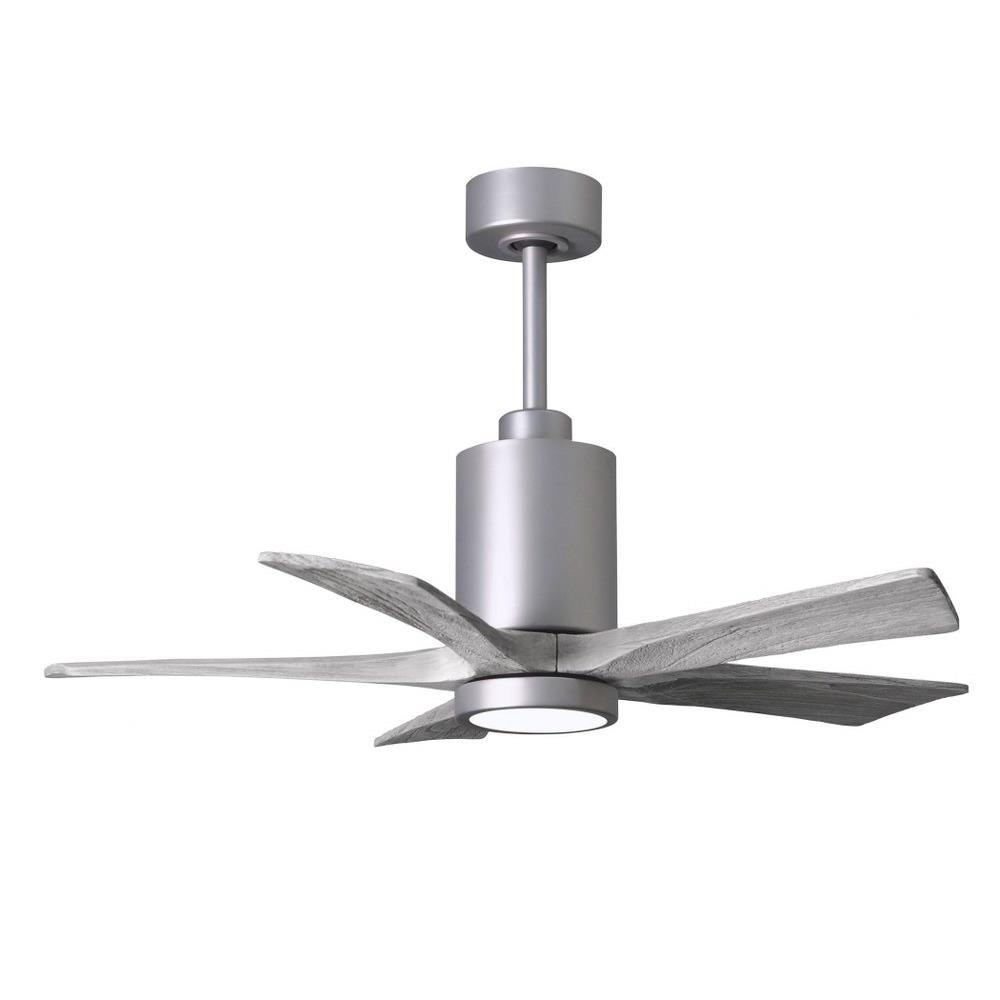

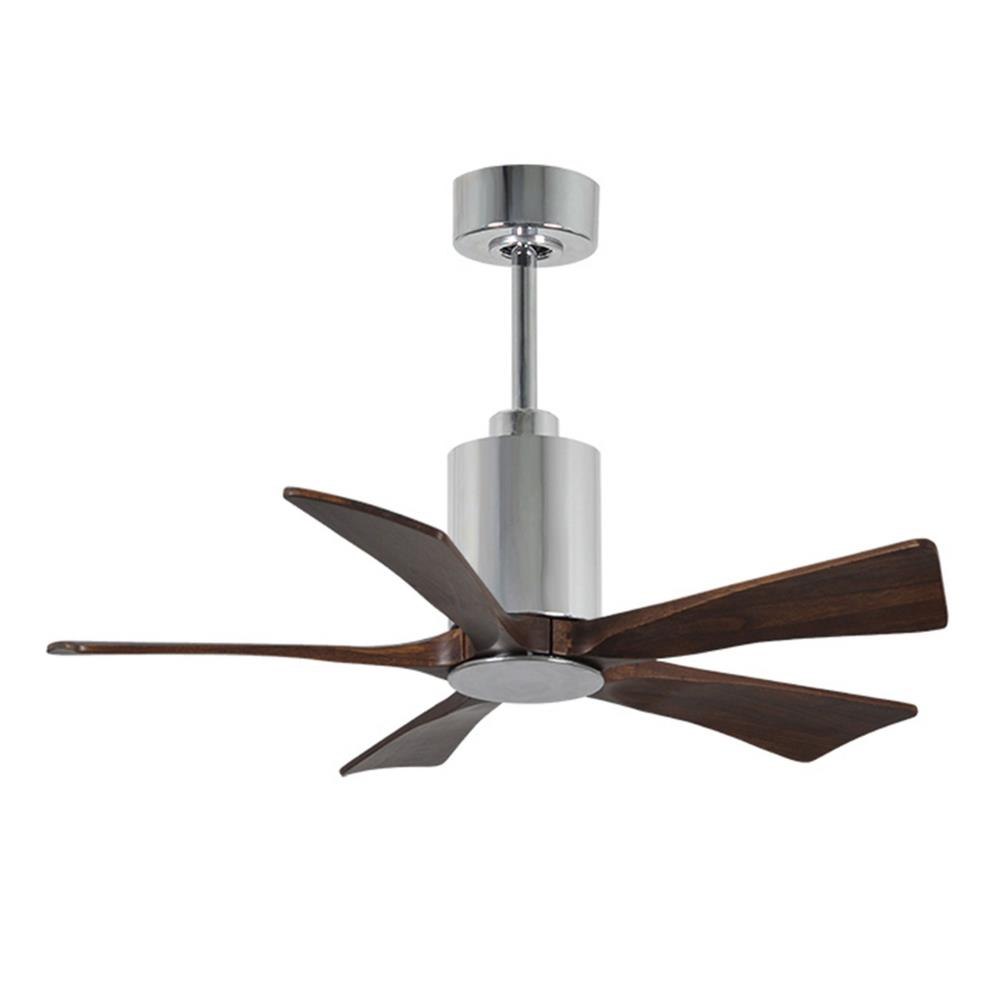

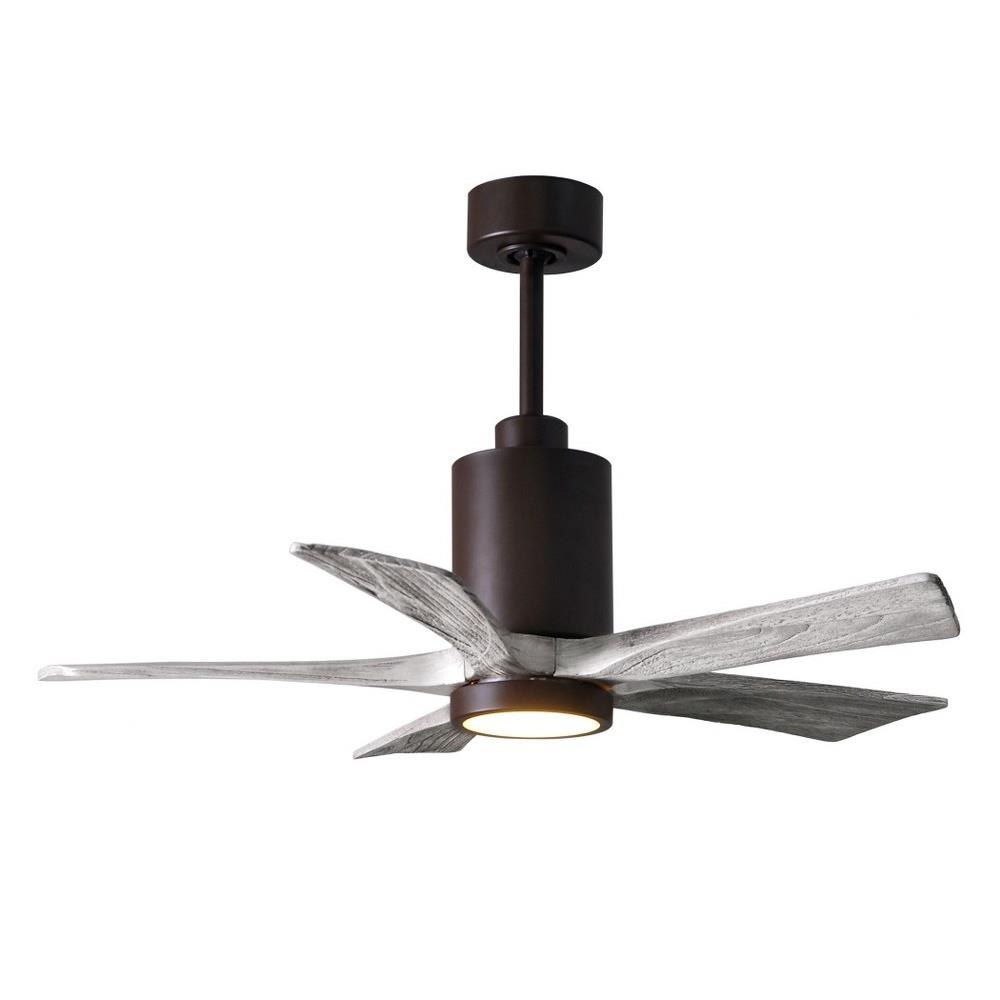

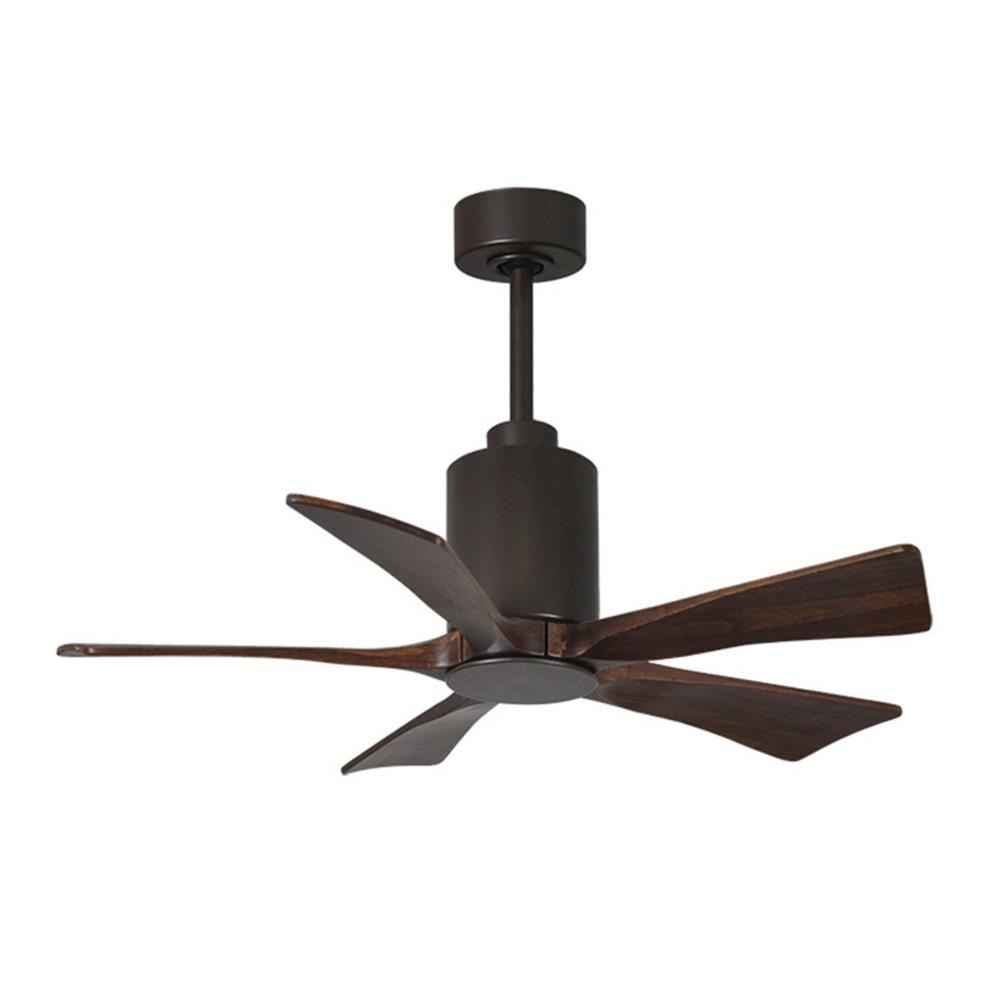

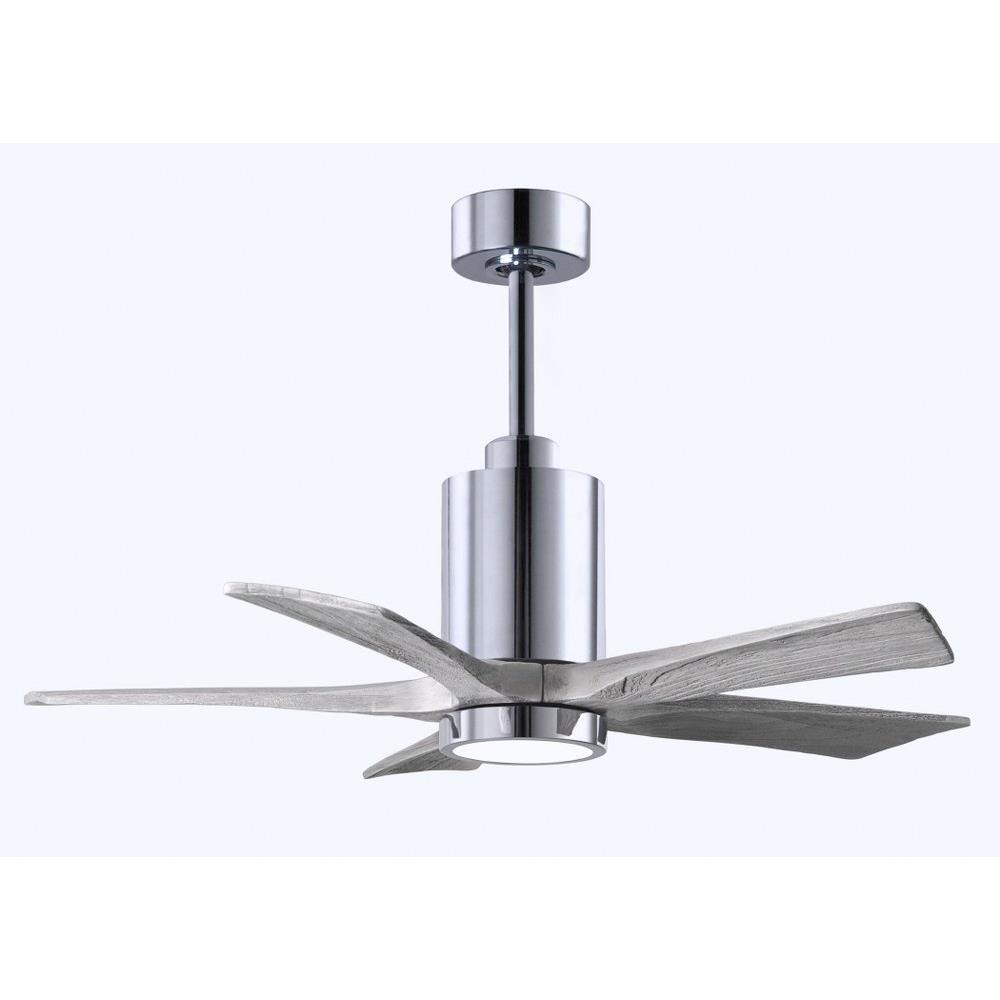

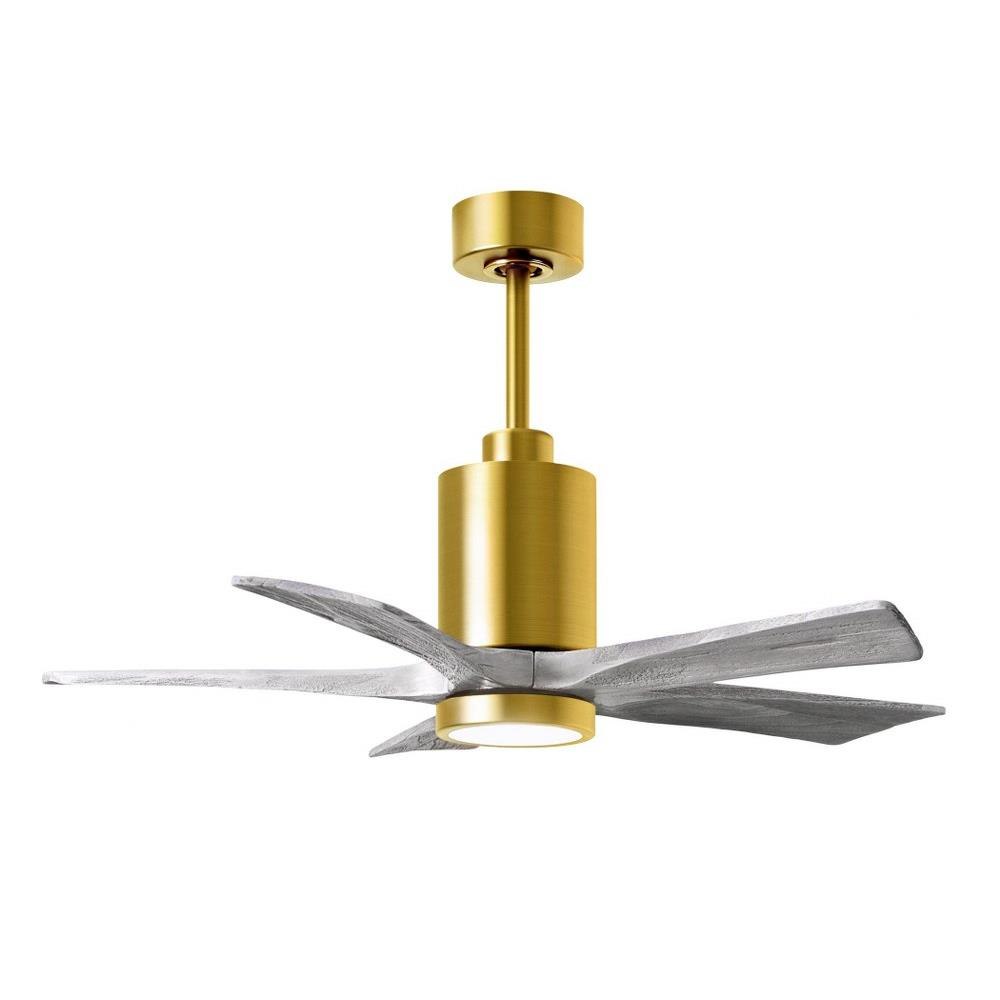

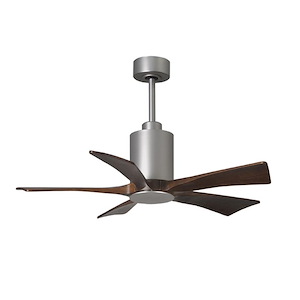

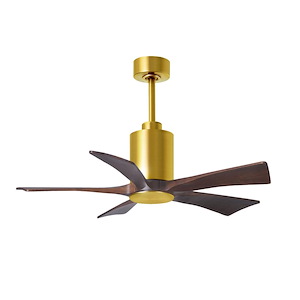

Enhance your commercial or residential environment with the Patricia-5 Five Blade Ceiling Fan, a contemporary style fixture measuring 42 inches in width. This fan combines refined design with robust construction, featuring solid balsa wood blades and a balanced cylindrical DC motor housing for efficient and whisper-quiet air circulation. Its eco-conscious LED light kit offers a sophisticated and energy-efficient lighting solution.
Technical Specifications
The Patricia-5 ceiling fan operates with a motor wattage of 30.47 watts and delivers a lumen output of 1692.95 lumens through a single dimmable LED bulb. It features a blade span of 42 inches with a 15-degree blade pitch, optimizing airflow with a capacity of 917 cubic feet per minute at low speed and up to 4385 cubic feet per minute at high speed. The fan supports six speed settings, with RPM ranging from 53 at low speed to 221 at high speed, while maintaining silent operation. The air flow efficiency averages 137 CFM per watt, ensuring energy-efficient performance.
Installation and Compatibility

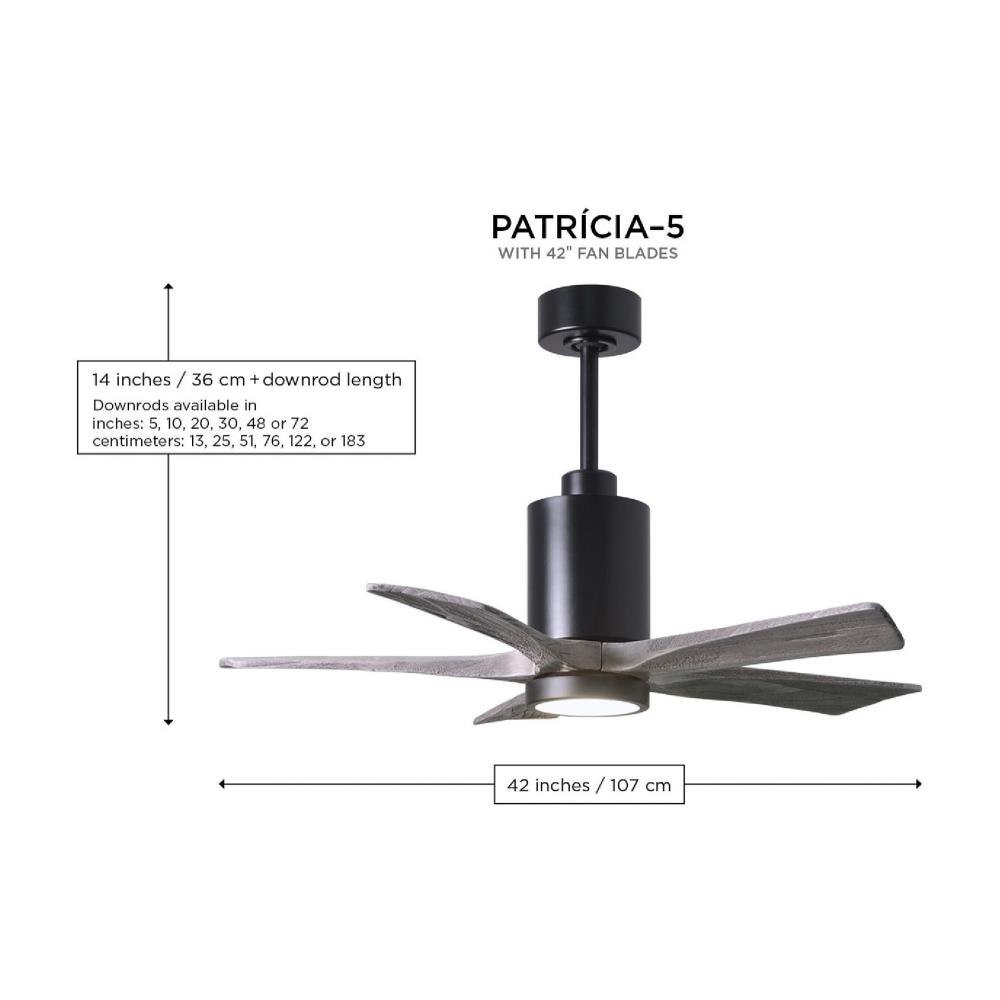

This fan is compatible with both flat and vaulted ceilings and can be mounted using a variety of downrod lengths, including 5", 10", 20", 30", 48", and 72", allowing flexible installation options. The overall drop from ceiling to blade tip is 14 inches, with a canopy diameter of 6 inches included for a clean, finished look. The fan utilizes a stem hanging method and is constructed from durable aluminum and steel materials, ensuring long-lasting stability.
Durability and Maintenance
The LED light kit boasts an impressive life expectancy of 60,000 hours, translating to approximately 27.4 years of use at 6 hours per day. For optimal performance, it is recommended to check the fan’s support connections, brackets, and blade attachments twice yearly due to natural movement. Cleaning can be performed without removing the fan from the ceiling.
Key Features
- Five solid balsa wood blades with 15° pitch for efficient airflow
- Balanced DC motor housing delivering silent operation
- Six-speed settings with RPM range from 53 to 221
- Energy-efficient LED light kit with 1692.95 lumens output and 60,000-hour lifespan
- Compatible with flat and vaulted ceilings, multiple downrod lengths included
- Dimmable LED lighting for customizable ambiance
- Airflow efficiency averaging 137 CFM/Watt
- Constructed from durable aluminum and steel materials
What’s Included
- Patricia-5 Ceiling Fan with integrated LED light kit
- Canopy with 6-inch diameter
- 1-10" rod length included for mounting
- Shade for LED light
What Needs to Be Ordered Separately
- Additional downrods (5", 20", 30", 48", 72") depending on ceiling height and installation preference
