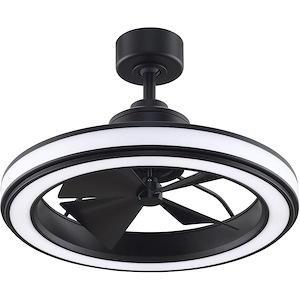

Fanimation Fans - FP8404B - Gleam - 4 Blade Ceiling Fan-14.91 Inches Tall and 23.7 Inches Wide

Product Overview

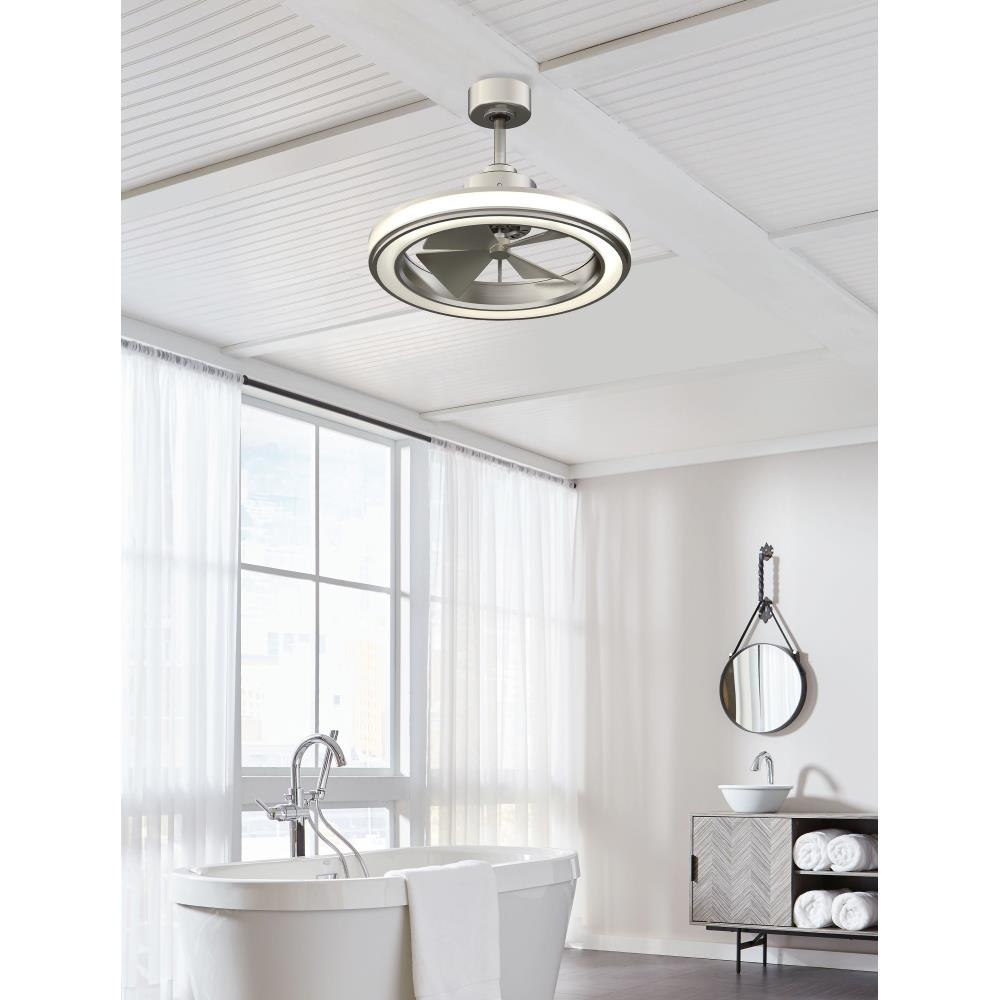

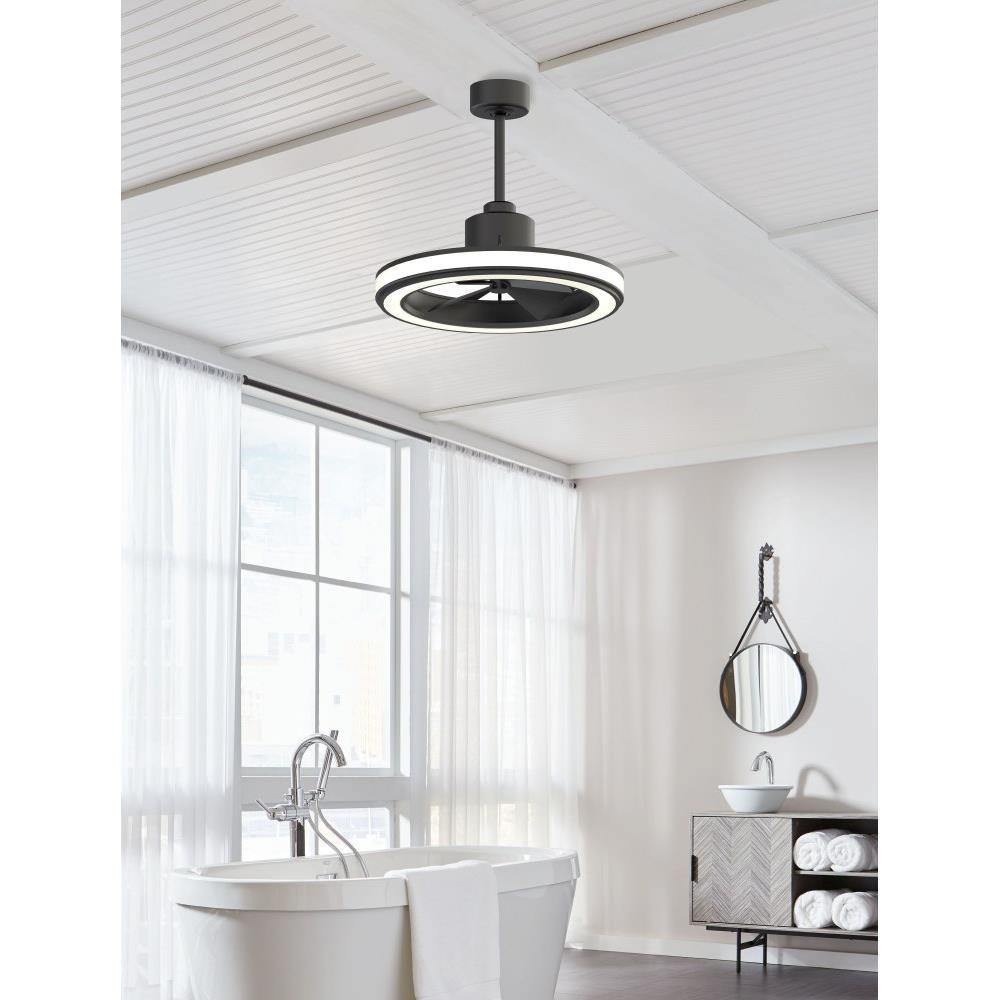

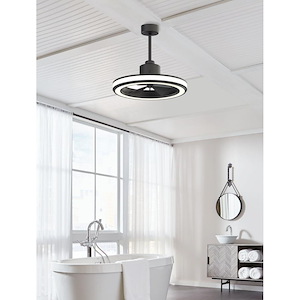

Enhance your living space with the Gleam 4 Blade Ceiling Fan by Fanimation, designed to deliver efficient airflow and modern aesthetics. Measuring 14.91 inches in height and 23.7 inches in width and length, this compact fan is ideal for small indoor or outdoor areas up to 150 square feet, such as bedrooms, offices, kitchens, or patios. Its sleek design features four blades with a 20-degree pitch, enclosed within a contemporary ring, providing optimal air circulation with a maximum airflow of 1531 cubic meters per minute on high speed.

Dimensions and Installation

The Gleam fan has a diameter of 24 inches and a blade drop of 14.67 inches, requiring a minimum ceiling height of 8 feet 6 inches for safe installation. It includes a 4.5-inch down rod and a canopy diameter of 5.75 inches. This model supports mounting on sloped ceilings up to 27 degrees, extendable to 42 degrees with an optional slope adapter (SCB1-52). For low-profile installations, a compatible close-to-ceiling kit (CCK8002BN) is available.

Motor and Performance

Powered by a robust AC motor measuring 82x30 mm, the Gleam fan offers three-speed settings with reversible airflow for year-round comfort. The motor is engineered for quiet operation and high torque, delivering 839, 1287, and 1531 cubic meters per minute of airflow at low, medium, and high speeds respectively. The motor comes with a limited lifetime warranty and is available in two designer finishes.

Lighting Specifications

The fan includes an integrated 20-watt LED light kit with opal frosted glass, producing 2200 lumens at a color temperature of 3000K and a CRI of 90. This LED accent light provides warm illumination but is not intended as the primary light source for a room.

Control Options

The Gleam fan is equipped with the TR500 handheld remote control, featuring three-speed fan operation, reverse function, light control, and a sleep timer. Additional control options include wall-mounted controls (WC2WH or WR501WH) and optional Bluetooth control (BTCR9). The fan is compatible with most smart home systems, though required controls are sold separately.

Additional Features

• UL Listed for damp locations, suitable for indoor and covered outdoor use
• Reversible blade direction for seasonal airflow optimization: counterclockwise for summer cooling and clockwise for winter air circulation
• Includes a 4.5-inch down rod for standard mounting
• Available in two finish options to complement various decor styles
• Limited lifetime warranty on the motor

What's Included

• Gleam 4 Blade Ceiling Fan with integrated 20W LED light kit
• 4.5-inch down rod
• TR500 handheld remote control with battery
• Installation hardware

What Needs to Be Ordered Separately

• Optional slope adapter SCB1-52 for ceiling angles above 27 degrees
• Close-to-ceiling kit CCK8002BN for flush mount installation
• Smart home compatible controls (WiFi or Bluetooth), such as BTCR9
• Alternative wall controls WC2WH or WR501WH

Gleam Indoor/Outdoor Ceiling Fan Dimensions

• Diameter: 24"; Height: 14.91" (From Ceiling to Bottom of the light glass using the included down rod 4.5"). Requires a minimum ceiling height of 8'6" for proper safety clearance.
• Blade Drop 14.67".
• Canopy Diameter 5.75". This ceiling fan can be mounted on a slope ceiling up to 27°. Up to 42° with slope adapter SCB1-52
• Close to ceiling kit compatible CCK8002BN

Motor Information

• AC motor 82X30 mm with 3 speeds and reverse, designed for quiet operation. The motor is covered under a limited lifetime warranty and is available in 2 designer colors.
• The Gleam ceiling fan uses a AC current motor that creates more power and torque.

Fan Blades

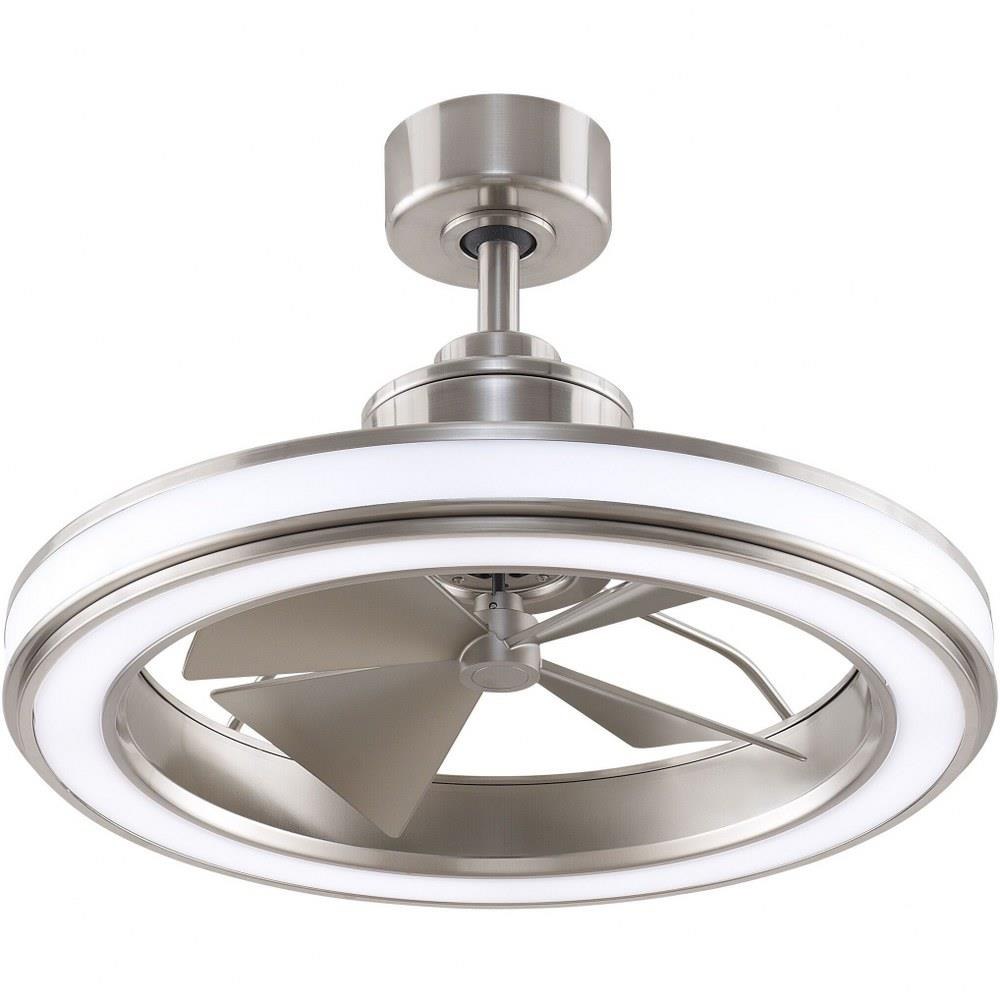

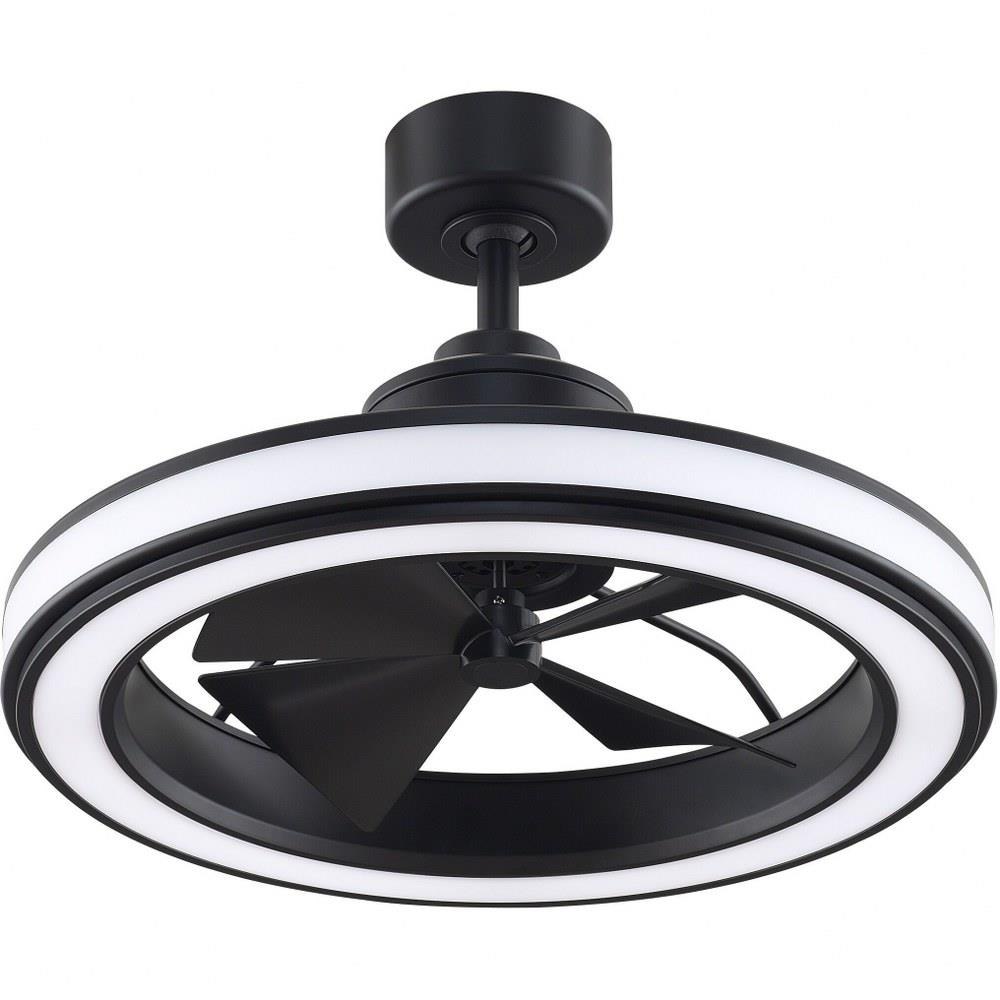

• Comes with 4 small blades tucked inside a modern ring.
• The blades feature a 20° pitch, creating a optimal airflow of 1531 CFM when used on the highest speed.

Control

• Gleam comes with the TR500 Fan remote system.
• 3 speed forward and reverse. Reverse button located on the fan housing.
• Other control options: Wall control WC2WH or WR501WH
• Optional Bluetooth control BTCR9

Light Kit

• The Gleam comes standard with a led light ring.
• Wattage: 20 watts
• Lumens: 2200
• Color Temp: 3000K
• CRI 90
• The led light on the Gleam is considered an accent light and is not intended to be the main source of light for a room.

Room Suggestion

• The Gleam is great for small indoor or outdoor spaces that are up 150 square feet. Such as a bedroom, gym, office, kitchen, bathroom, loft area, porch, patio or deck.

Features

• UL listed for damp locations
• Available in 2 different finishes
• Small ceiling fan for smaller rooms.
• Modern unique design
• 4.5" down rod included

Seasonal Settings

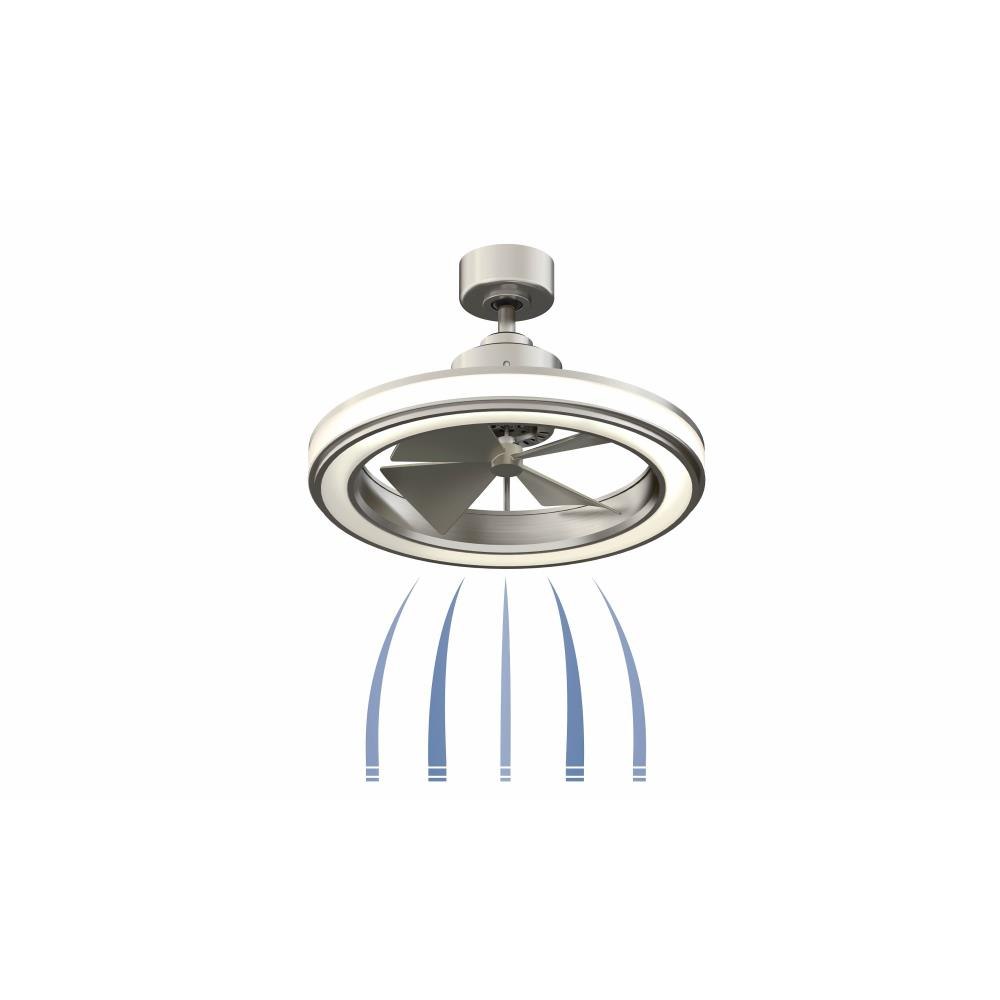

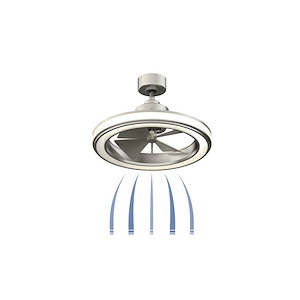

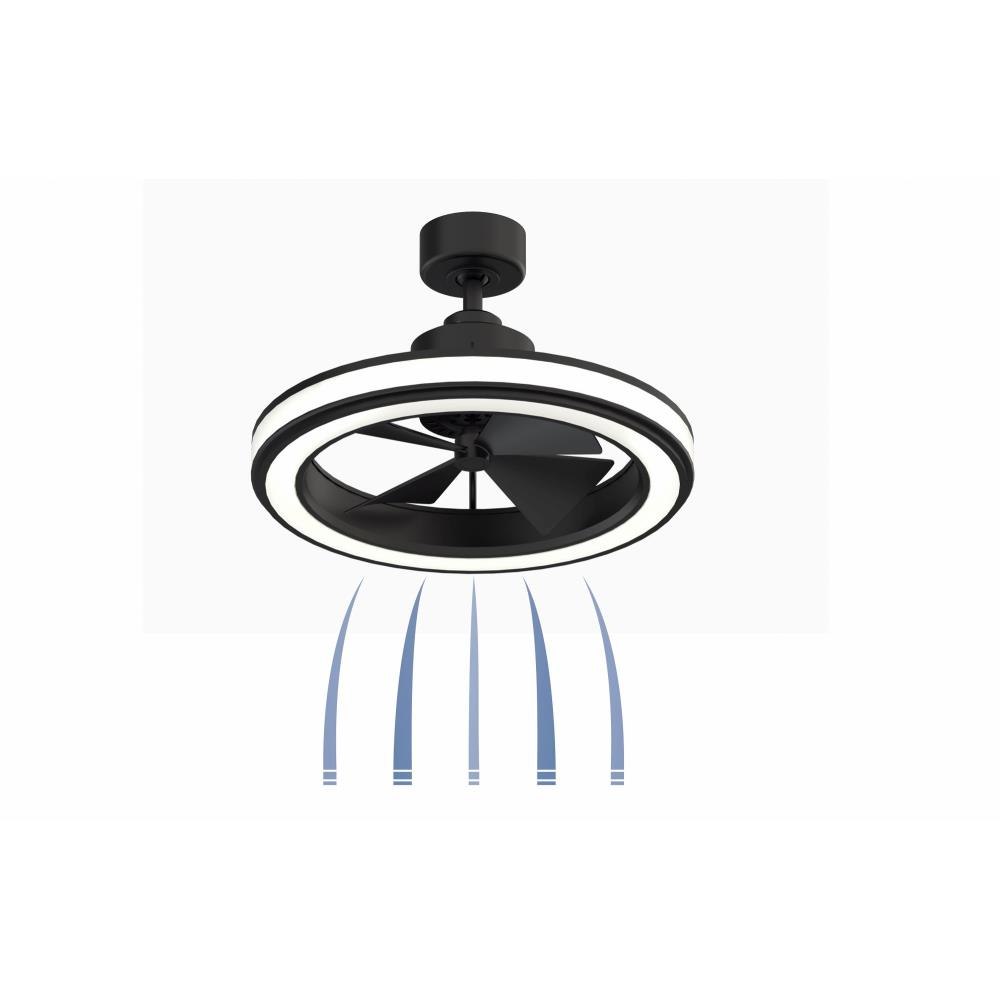

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
