Precision Engineered Design

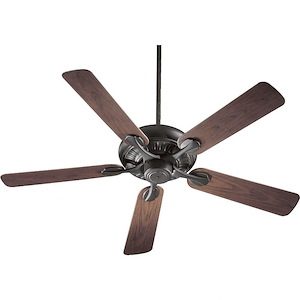

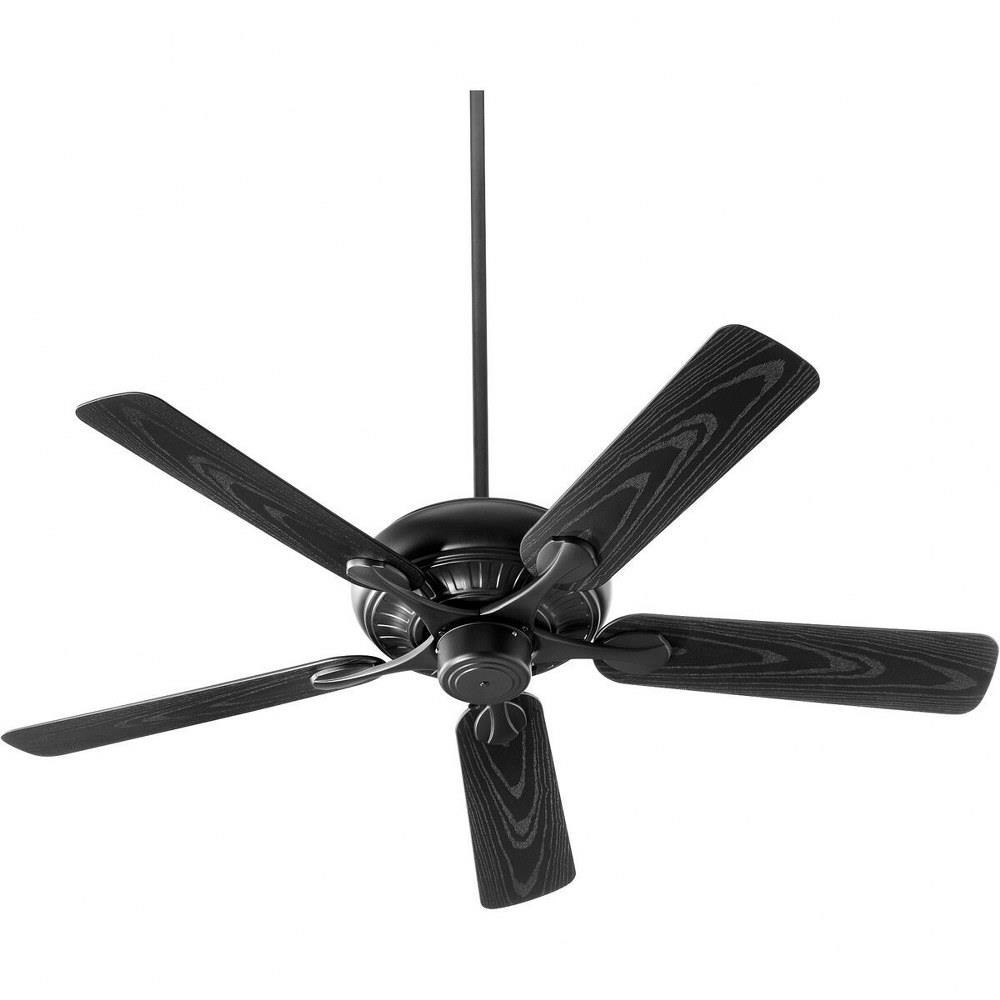

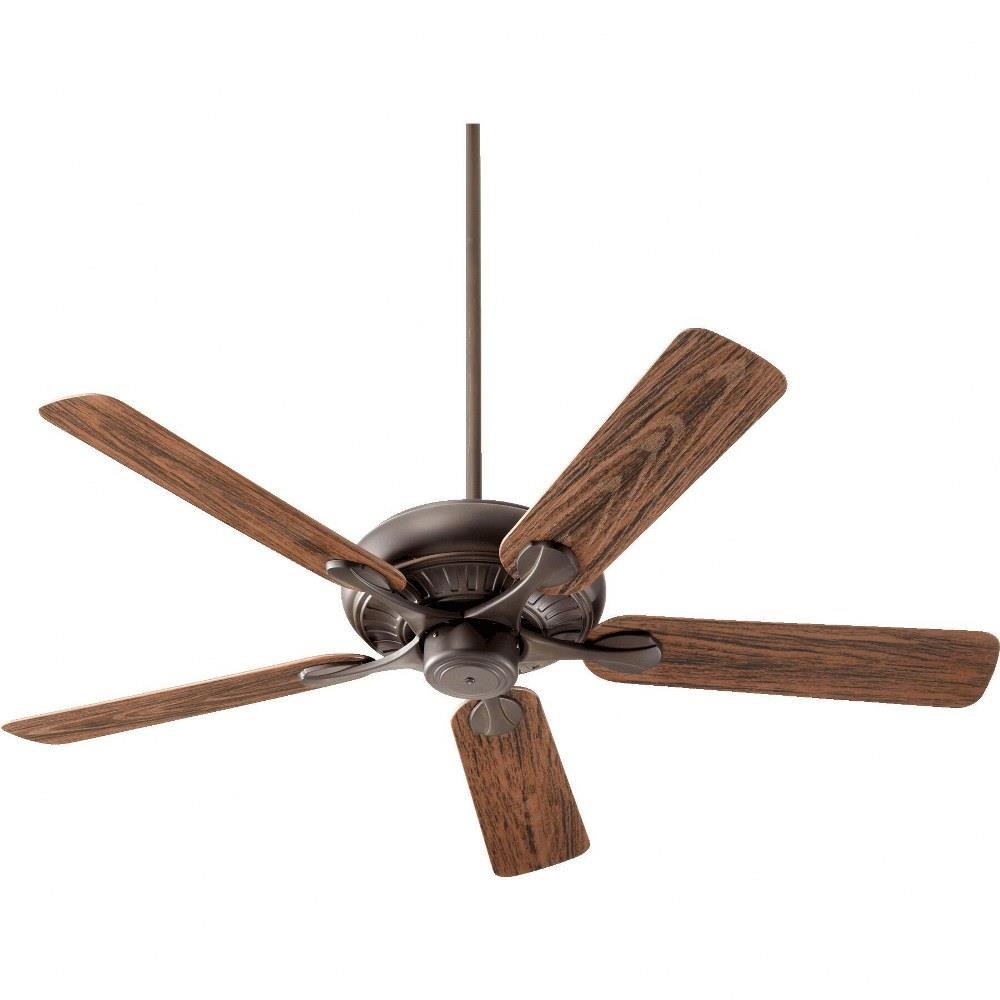

The Pinnacle Patio Fan offers a 52-inch blade span with a 16-degree blade pitch, delivering optimal airflow for medium-sized outdoor spaces. Its 12.99-inch height and 4-inch rod length facilitate versatile stem-hung installation, blending seamlessly into transitional style patios. The fan’s five semi-square tip blades, available in four powder-coated finishes, provide durability and aesthetic appeal.
Performance Specifications
Equipped with a powerful 16-pole motor, the fan operates efficiently across three reversible speeds. Electrical consumption ranges from 83 watts on high to 10 watts on low, with corresponding amperage of .72, .47, and .24 amps. The fan achieves rotational speeds of 173, 110, and 54 RPM respectively, ensuring customizable comfort. Sealed vent holes enhance motor longevity by protecting internal components from outdoor elements.
Adaptability and Convenience
The Pinnacle fan is designed for adaptability, allowing conversion to 56-inch or 60-inch sweeps by acquiring optional blade sets. It comes with 80 inches of lead wire and a detachable switch cup for simplified wiring and maintenance. Additionally, the fan is remote control adaptable, enabling seamless integration with modern control systems.
Key Features
- 52" Blade Sweep with 5 Semi-Square Tip Blades
- Three Speeds with Reversible Motor Functionality
- 16-Pole Motor for Efficient Air Movement
- Sealed Vent Holes for Enhanced Durability
- Remote Control Adaptable and Detachable Switch Cup
- Stem-Hung Installation with 4" Rod Length
- Optional Blade Sets for 56" or 60" Sweep Conversion
- Four Powder-Coated Finish Options
What’s Included
- Pinnacle Patio Fan with 52" Blade Sweep
- Five Semi-Square Tip Blades
- 80" Lead Wire
- 4" Rod for Stem Hanging
What Needs to be Ordered Separately
- Optional Blade Sets for 56" or 60" Sweep Conversion
- Remote Control Unit (if remote operation is desired)
