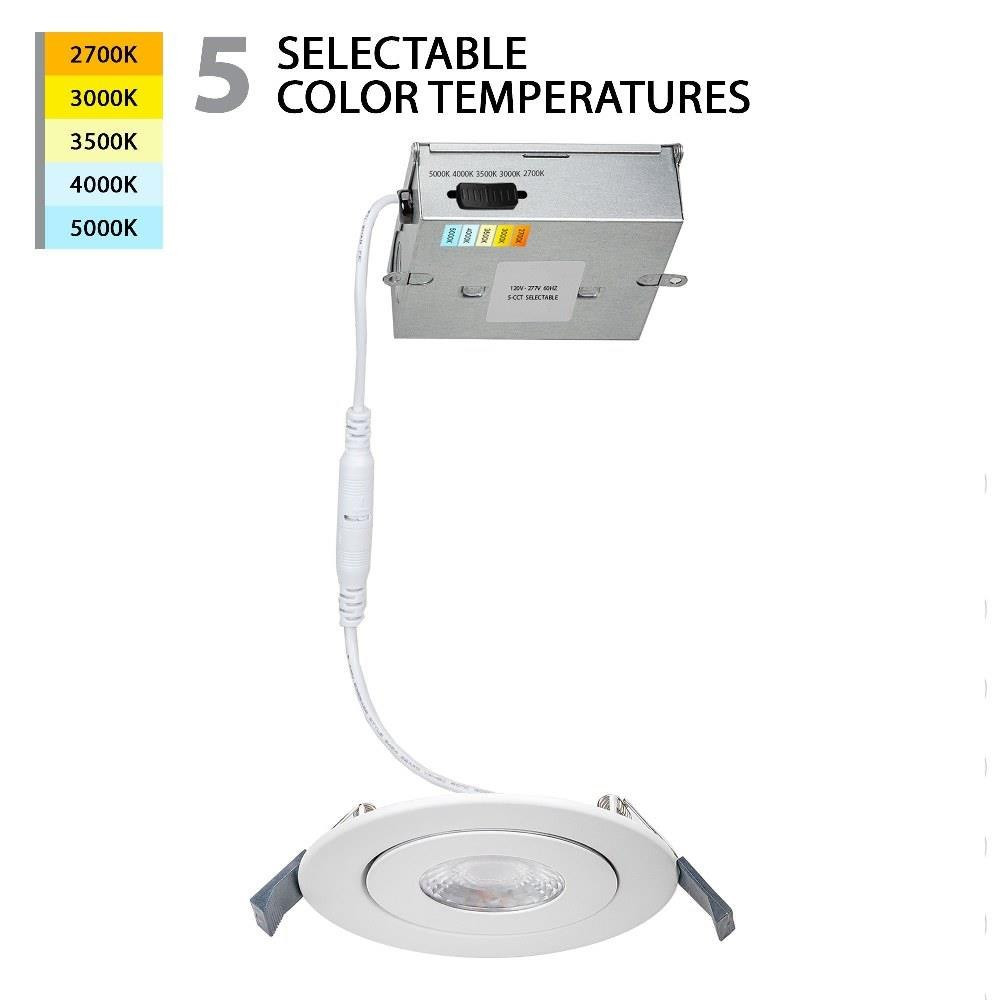

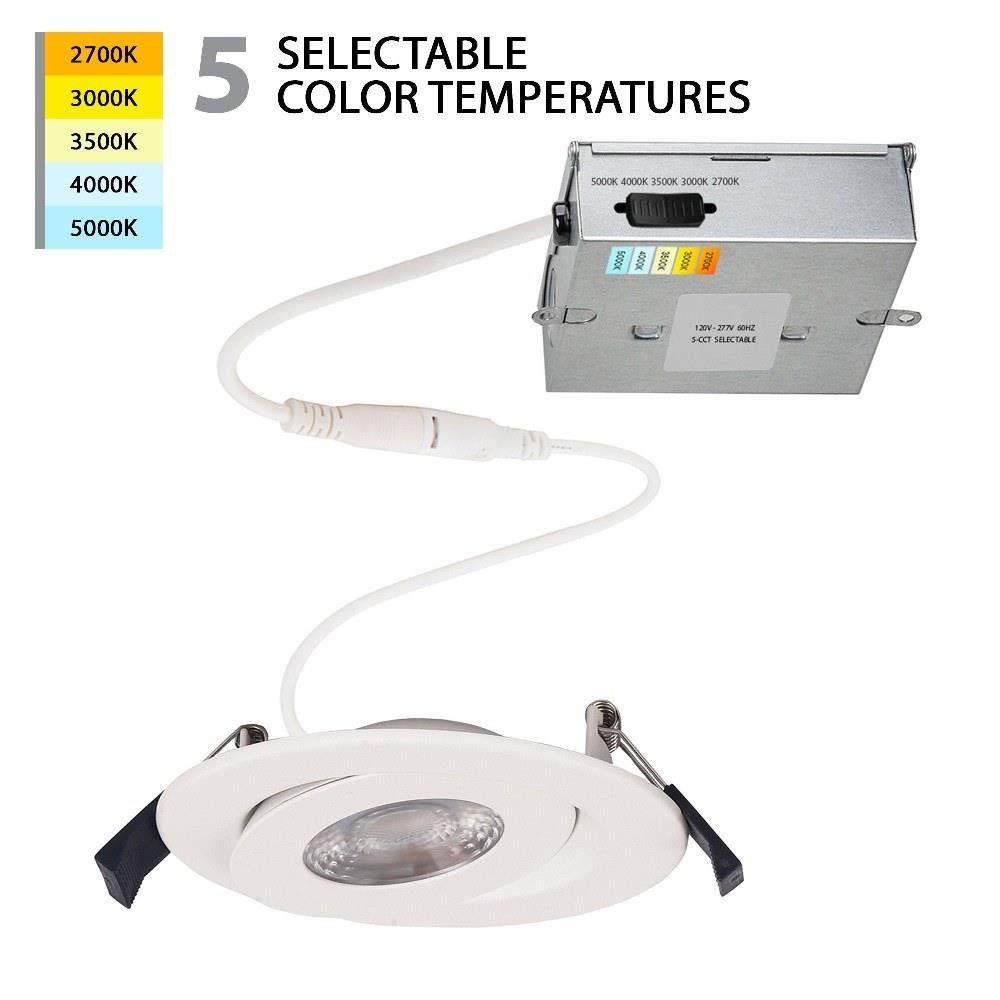

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.NEW! Lotos CCT features an on-board 5-CCT selectable switch allows you to toggle between different color temperatures to find the perfect setting for your space. Change between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.

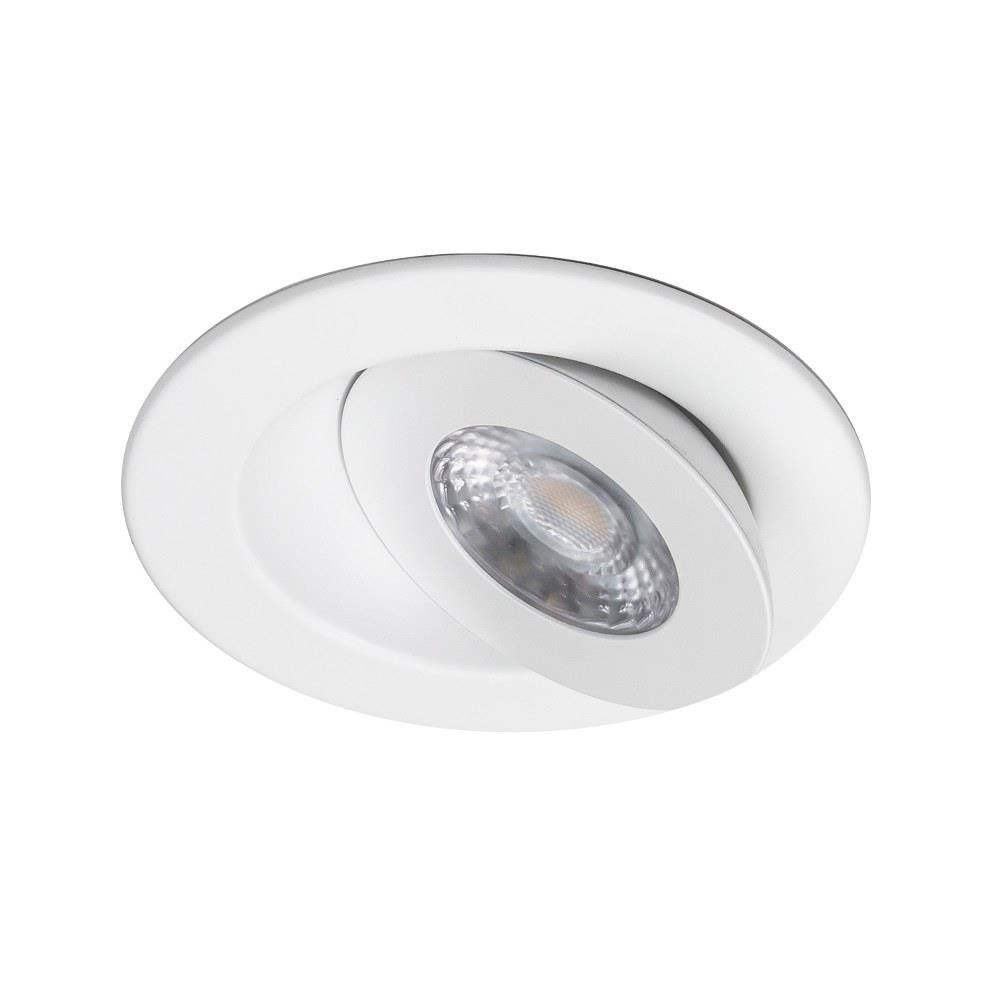

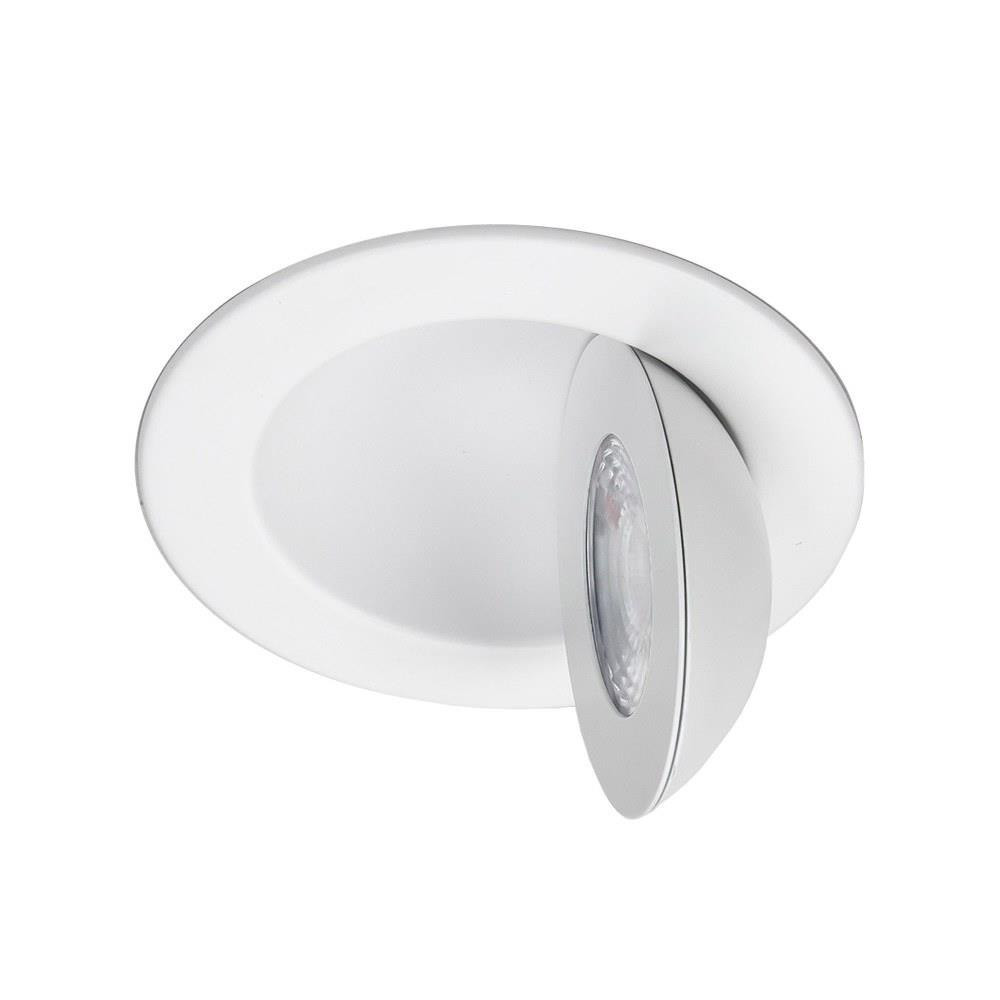

Lotos Adjustable is a complete LED recessed adjustable downlight kit with light engine and driver included. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.

Need help deciding which product is right for your space? Check out our WAC Buying Guide For Expert Advice

Quality Construction:

• Die-cast Aluminum with 20-gauge Cold Rolled Steel Driver Box.
• Available in round or square as new construction or remodel — all options are IC-Rated and Airtight.
• Frame-in kit included with new construction version (also available separately: R6DRDN-FRAME).
• Metal conduit with Quick Connect to electrical box for easy installation.
• Installs into ceiling thickness between 0.5" and 1.5".
• Universal input driver: 120V-220V-277V.
• Smooth and continuous dimming with ELV or TRIAC dimmers (dims to 10% with ELV, 5% with TRIAC).

Lighting Specifications:

• High powered replaceable LED module
• 5-CCT Selectable Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 2130
• CRI: 90
• Rated Lifetime: 50,000 Hours
• Beam Spread: Flood
• Air Tight: TRUE
• Aperture Size: 2.88"
• Cutout Size: 3.00"
• Trim Size: 6.25"
• IC Rated: TRUE
• Shade Included: Yes
• Dimmable: ELV/TRIAC

Ratings / Certifications / Warranty:

• Standards: ETL & cETL
• Wet Location Listed
• CEC Title 24 Compliant
• 5 Years Functional / 2 Years Finish
