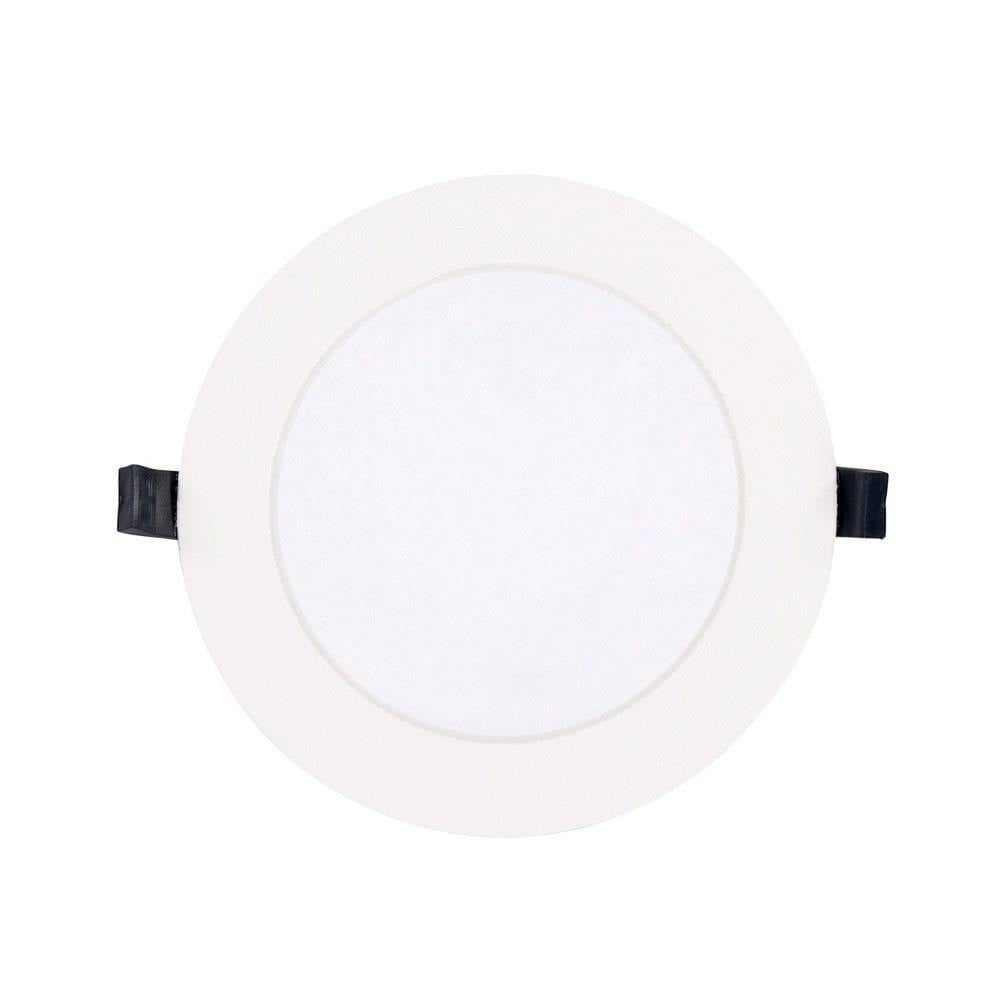

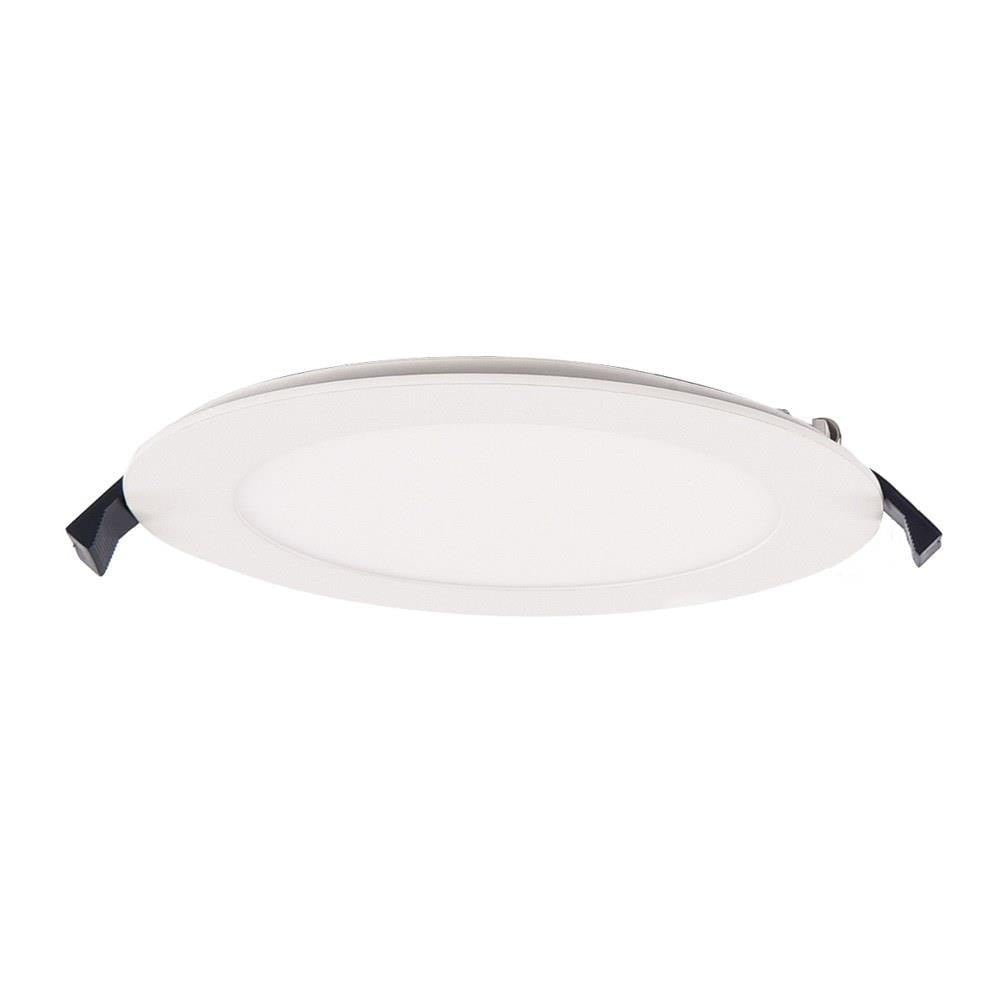

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.

Need help deciding which product is right for your space? Check out our WAC Buying Guide For Expert Advice

Quality Construction:

• Multiple LED array for uniform illumination
• Slim, round 4-inch adjustable remodel downlights
• Available in 4-inch & 6-inch sizes
• Can be installed in shallow ceiling depths as a remodel or new construction
• Optional frame-in kit (part # RER-FRAME) sold separately for pre-wiring
• 6ft extension cable (Part # RER-6) available to increase distance from driver to downlight

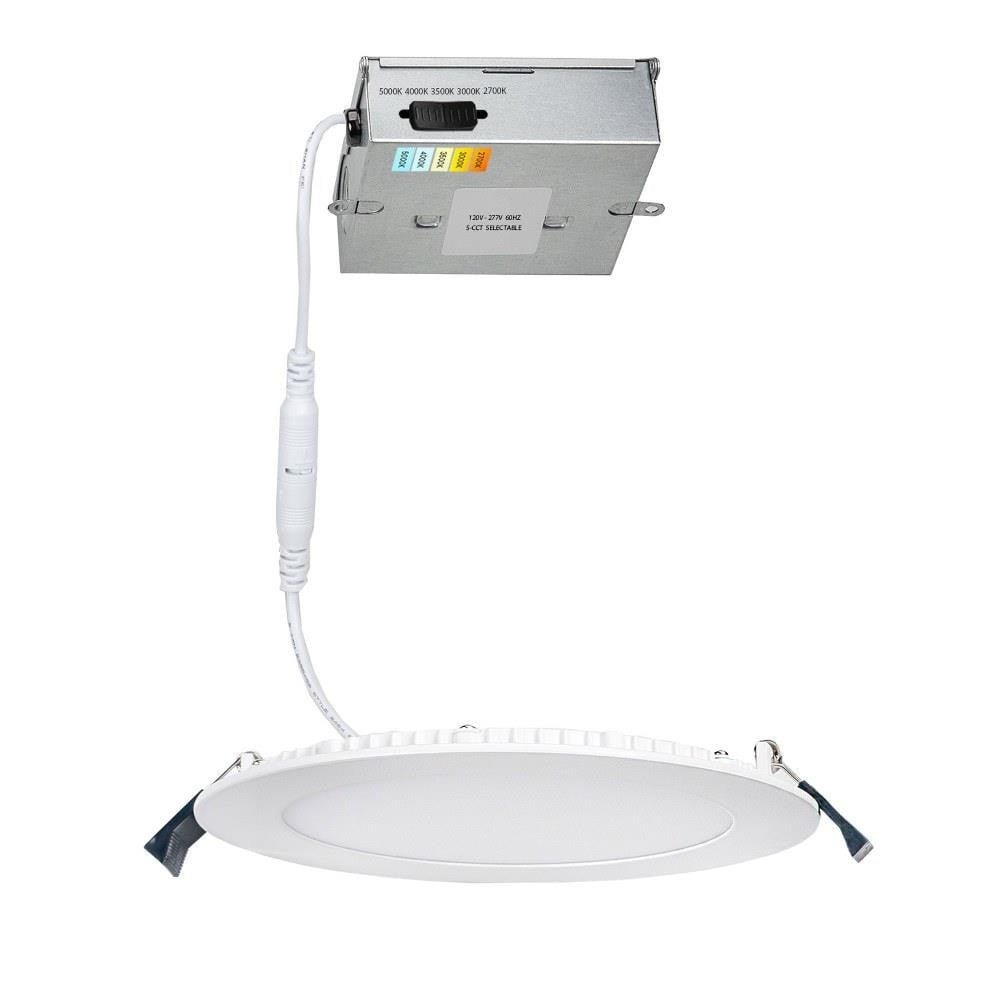

• Universal Input Voltage Driver (120V-240V-277V) housed in steel with space for electrical connections
• Driver housing includes a 6-inch low voltage plug-and-play connector
• Smooth and continuous dimming with most standard LED dimmers (recommended ELV/TRIAC dimmer)
• High-powered LEDs up to 1340 lumens, rated LM70 for 50,000 hours

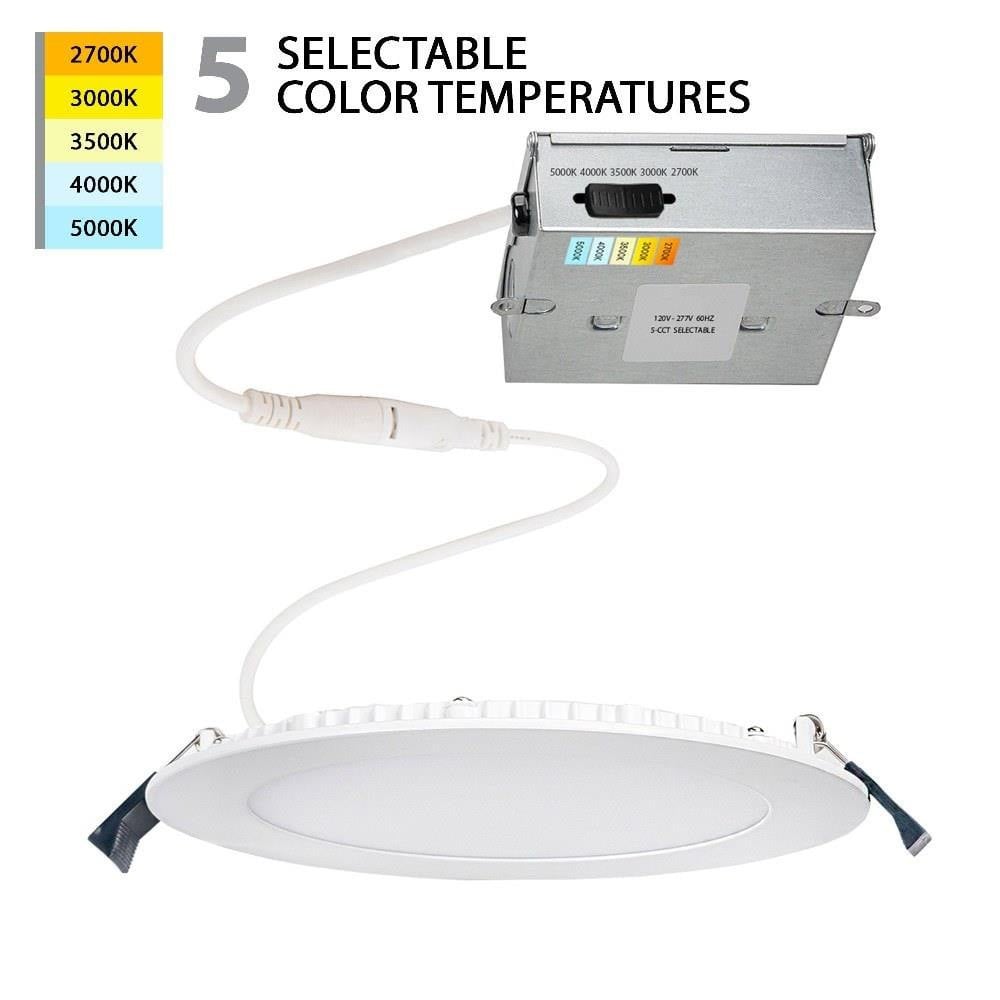

• 5-CCT selectable switch (2700K, 3000K, 3500K, 4000K, 5000K) at the flick of a switch

Lighting Specifications:

• Color Temperature: 2700K - 3000K - 3500K - 4000K - 5000K
• Lumens: 600
• CRI: 90
• Rated Lifetime Hours: 50,000
• Beam Spread: Flood
• Air Tight: TRUE
• Aperture: 3.88 inches
• Cutout: 4.25 inches
• Trim Size: 4.75 inches
• IC Rating: TRUE
• Shade Included: Yes
• Dimmable: ELV/TRIAC

Ratings / Certifications / Warranty:

• ETL & cETL Wet location listed in the USA and Canada
• Energy Star 2.0 Certified
• Title 24 JA8-2016, Title 20, and ADA compliant
