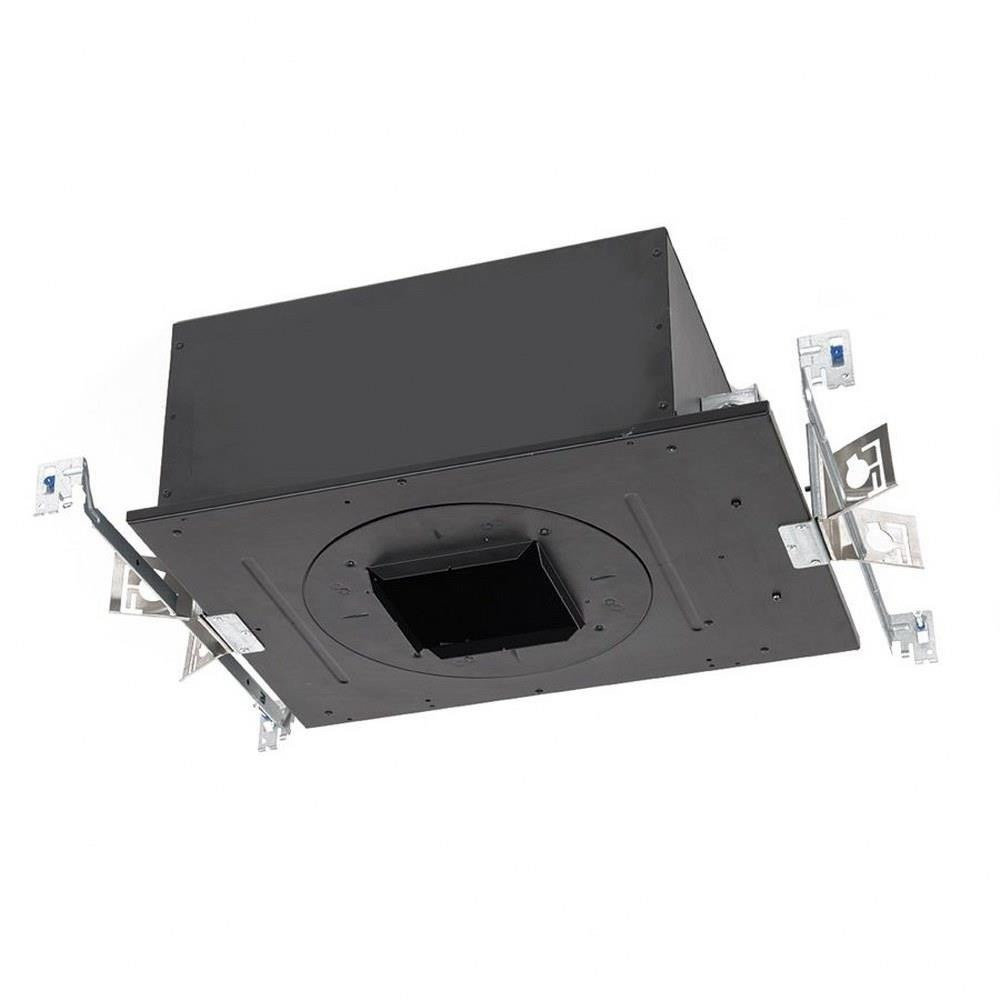

Volta is the quintessential high performance LED architectural recessed downlight. Volta can be specified with variable serviceable drivers to plan your project in accordance with energy and lighting requirements up to 1,500 Lumens from a 2in aperture or up to 3,000 Lumens from the 4.5in. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.

Need help deciding which product is right for your space? Check out our WAC Buying Guide For Expert Advice

Quality Construction:

• Trim shape and driver output must be specified with housing.
• Built-in indexing allows for quick and simple trim alignment.
• Universal mounting brackets with hangar bars included.
• For use with square Volta trims.
• Energy Star qualified and Title 24 Compliant (when used with 90CRI Trim).
• Smooth and continuous dimming to 1% with an Electronic Low Voltage Dimmer or 0-10V dimmer.
• Available with Lutron Driver (housing with L1 in part #) for full compatibility with Lutron Lighting Control Systems.
• Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight versions.
• Chicago Plenum Safety Rating and Emergency Backup battery options.

Lighting Specifications:

• 15W, 25W, or 36W universal driver (120V-220V-277V)
• Choose housing with driver load to meet your specifications
• Cutout: 5.13"
• Air Tight: Yes
• IC Rated: Yes
• Dimmable: Yes

Ratings / Certifications / Warranty:

• Standards: ETL & cETL Listed
• All Volta trims are Wet Location rated
• Warranty: 5 Years Functional / 2 Years Finish
